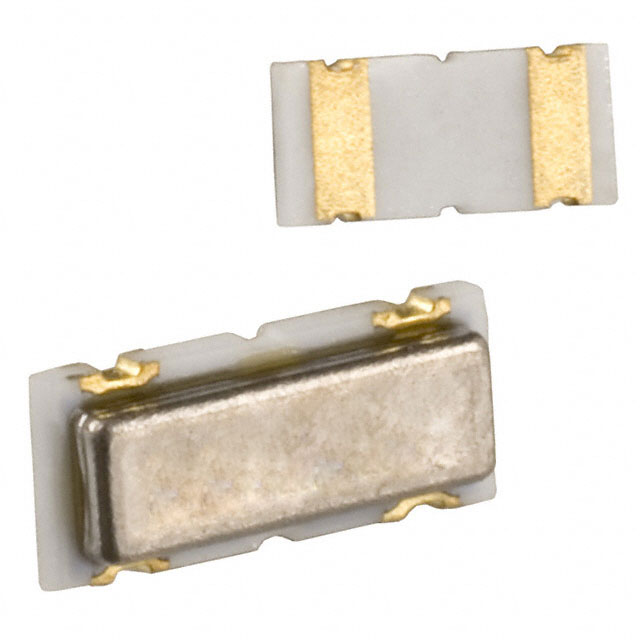

CDSCB Series

Catalog

CERAMIC FILTERS 10.7MHZ SMD T/R

Part	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Frequency	Filter Type	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Package / Case	Package / Case	Bandwidth	Insertion Loss	Height (Max) [z]
Murata Electronics CDSCB10M7GA136-R0	0.039 in	1 mm	10.7 MHz	Discriminator	Surface Mount	0.079 in	0.177 in	2 mm	4.5 mm	2 Lead	1808	4520 Metric
Murata Electronics CDSCB10M7GF123S-R0	0.039 in	1 mm	10.7 MHz	Discriminator	Surface Mount	0.079 in	0.177 in	2 mm	4.5 mm	2 Lead	1808	4520 Metric
Murata Electronics CDSCB10M7GA105A-R0	0.039 in	1 mm	10.7 MHz	Discriminator	Surface Mount	0.079 in	0.177 in	2 mm	4.5 mm	2 Lead	1808	4520 Metric	220 kHz	3 dB
Murata Electronics CDSCB10M7GA119-R0	0.039 in	1 mm	10.7 MHz	Discriminator	Surface Mount	0.079 in	0.177 in	2 mm	4.5 mm	2 Lead	1808	4520 Metric	500 kHz	3 dB
Murata Electronics CDSCB10M7GA135-R0	0.039 in	1 mm	10.7 MHz	Discriminator	Surface Mount	0.079 in	0.177 in	2 mm	4.5 mm	2 Lead	1808	4520 Metric	155 kHz	3 dB
Murata Electronics CDSCB10M7GA113-R0	0.039 in	1 mm	10.7 MHz	Discriminator	Surface Mount	0.079 in	0.177 in	2 mm	4.5 mm	2 Lead	1808	4520 Metric	300 kHz
Murata Electronics CDSCB10M7GA120-R0			10.7 MHz	Discriminator	Surface Mount	0.079 in	0.177 in	2 mm	4.5 mm		6-SMD No Lead				1 mm
