DPC Series

Catalog

RELAY GEN PURP 3PST 30A 240V

Part	Contact Material	Coil Power	Coil Current	Coil Resistance	Contact Form	Operating Temperature [Min]	Operating Temperature [Max]	Features	Must Release Voltage	Coil Voltage	Termination Style	Termination Style	Mounting Type	Switching Voltage [Max]	Contact Rating (Current)	Must Operate Voltage
TE Connectivity AMP Connectors DPC-3U30BL1X	Silver Cadmium Oxide (AgCdO)	96 W	402 mA	597 Ohms	3PST-NO (DM) (3 Form X)	-40 C	65 °C	Insulation - Class B	40 VAC	240 VAC/DC	0.25 in 6.3 mm	Screw Terminal Quick Connect	Chassis Mount	600 VAC	30 A	177 VAC

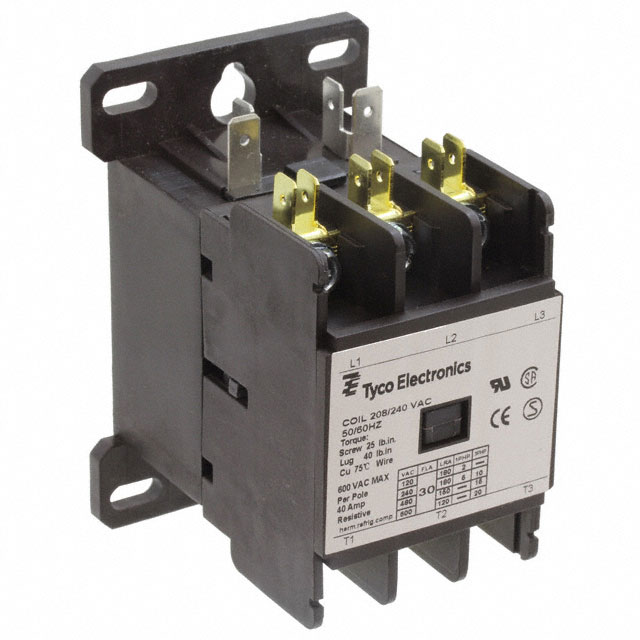

TE Connectivity AMP Connectors DPC-3U30CS1X	Silver Cadmium Oxide (AgCdO)				3PST-NO (DM) (3 Form X)	-40 C	65 °C		40 VAC	240 VAC/DC	0.25 in 6.3 mm	Screw Terminal Quick Connect	Chassis Mount	600 VAC	30 A	177 VAC
TE Connectivity AMP Connectors DPC-3H40BL1X	Silver Cadmium Oxide (AgCdO)	95 W	197.9 mA	2.4 kOhms	3PST-NO (DM) (3 Form X)	-40 C	65 °C	Insulation - Class B	150 VAC	480 VAC	0.25 in 6.3 mm	Screw Terminal Quick Connect	Chassis Mount	600 VAC	40 A	384 VAC
TE Connectivity AMP Connectors DPC-3T30BL1X	Silver Cadmium Oxide (AgCdO)	98 W	816.3 mA	147 Ohms	3PST-NO (DM) (3 Form X)	-40 C	65 °C	Insulation - Class B	20 VAC	120 VAC	0.25 in 6.3 mm	Screw Terminal Quick Connect	Chassis Mount	600 VAC	30 A	88 VAC/DC
