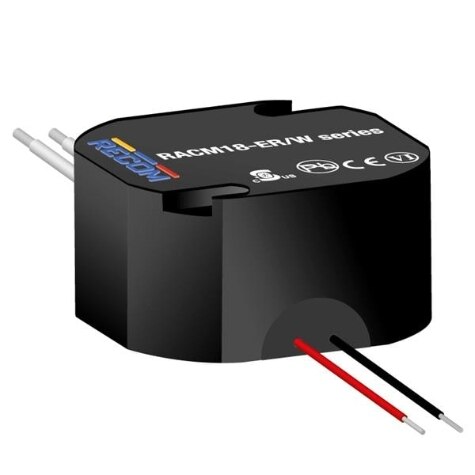

RACM18-ER/W Series

AC/DC Power Modules 18W 90-264Vin 24Vout 750mA IP68MED

Manufacturer: Recom Power

Catalog

AC/DC Power Modules 18W 90-264Vin 24Vout 750mA IP68MED

Catalog

AC/DC Power Modules 18W 90-264Vin 24Vout 750mA IP68MED

Part	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Isolation	Type	Approval Agency	Voltage - Output 1	Applications	Current - Output 1	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Features	Power (Watts)
Recom Power RACM18-24SER/W	86 %	264 VAC	90 VAC	4.6 kV	Enclosed	CE	24 V	Household Appliances ITE (Commercial) Medical	750 mA	1	80 ¯C	-20 °C	Chassis Mount	0.98 in	2 in	53 mm	25 mm	51 mm	2.09 in	IP68 Universal Input
Recom Power RACM18-12SER/W	86 %	264 VAC	90 VAC	4.6 kV	Enclosed	CE	12 V	Household Appliances ITE (Commercial) Medical	1.5 A	1	80 ¯C	-20 °C	Chassis Mount	0.98 in	2 in	53 mm	25 mm	51 mm	2.09 in	IP68 Universal Input
Recom Power RACM18-05SER/W	81 %	264 VAC	90 VAC	4.6 kV	Enclosed	CE	5 V	Household Appliances ITE (Commercial) Medical	2.5 A	1	80 ¯C	-20 °C	Chassis Mount	0.98 in	2 in	53 mm	25 mm	51 mm	2.09 in	IP68 Universal Input	13 W
