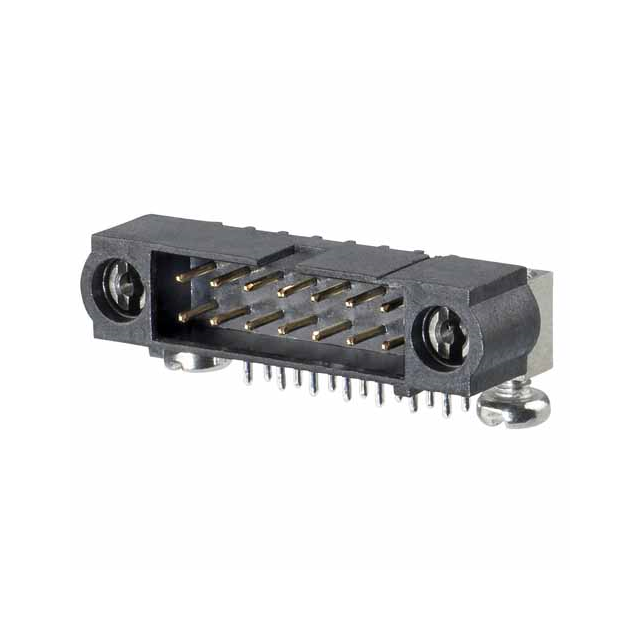

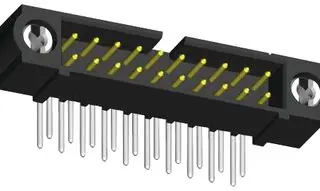

M80-5L1 Series

Catalog

CONN HDR 2MM R/A W/SCREW 26POS

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Material Flammability Rating	Insulation Material	Number of Rows [custom]	Features	Contact Finish - Mating	Contact Finish - Post	Contact Type	Connector Type	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Number of Positions	Contact Material	Style	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Shrouding	Contact Length - Post	Contact Length - Post	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Current Rating (Amps)	Insulation Height	Insulation Height	Voltage Rating	Fastening Type	Termination	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]

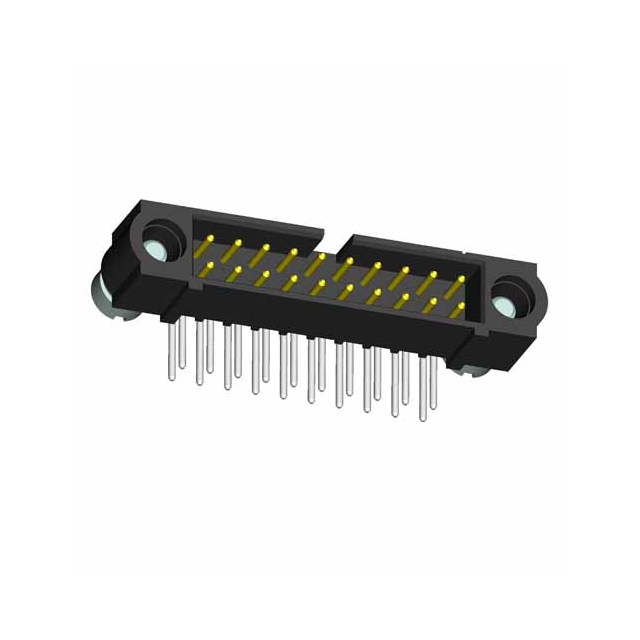

Harwin Inc. M80-5L12642MA	12 µin	0.3 µm	Right Angle Through Hole	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	2	Jackscrews Mating Guide	Gold	Tin	Male Pin	Header	All	0.079 "	2 mm	-55 C	125 °C	Circular Square	26	Phosphor Bronze Alloy	Board to Board Cable	29.5 µin	0.75 µm	Shrouded - 4 Wall	0.118 in	3 mm	2 mm	0.079 in	Black	3 A	5.55 mm	0.218 in	800 VAC	Threaded	Solder
Harwin Inc. M80-5L11242MC			Right Angle Through Hole	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	2	Keying Slot Mating Flange	Gold	Tin	Male Pin	Header	All	0.079 "	2 mm	-55 C	125 °C	Circular	12	Phosphor Bronze	Board to Board Cable	29.5 µin	0.75 µm	Shrouded - 4 Wall	0.118 in	3 mm	2 mm	0.079 in	Black	2.2 A	5.55 mm	0.218 in	120 VDC	Push-Turn Lock	Solder	118.1 µin	3 µm

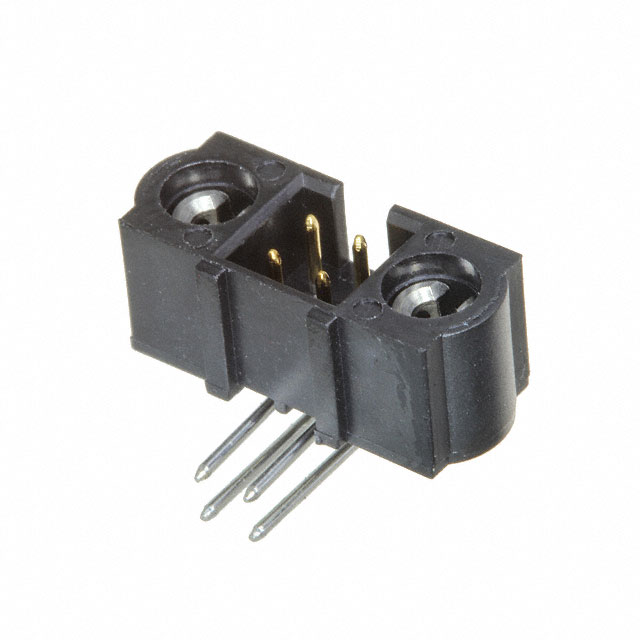

Harwin Inc. M80-5L10442MC			Right Angle Through Hole	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	2	Keying Slot Mating Flange	Gold	Tin	Male Pin	Header	All	0.079 "	2 mm	-55 C	125 °C	Circular	4	Phosphor Bronze	Board to Board Cable	29.5 µin	0.75 µm	Shrouded - 4 Wall	0.118 in	3 mm	2 mm	0.079 in	Black	2.2 A	5.55 mm	0.218 in	120 VDC	Push-Turn Lock	Solder	118.1 µin	3 µm

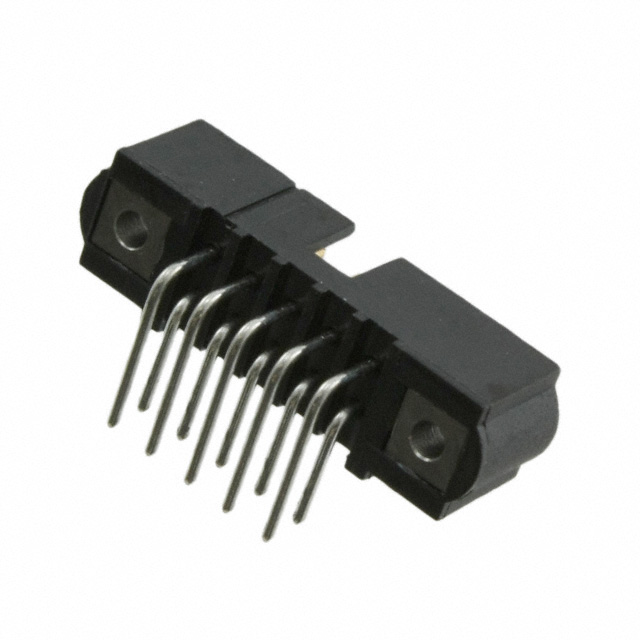

Harwin Inc. M80-5L11042MC			Right Angle Through Hole	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	2	Keying Slot Mating Flange	Gold	Tin	Male Pin	Header	All	0.079 "	2 mm	-55 C	125 °C	Circular	10	Phosphor Bronze	Board to Board Cable	29.5 µin	0.75 µm	Shrouded - 4 Wall	0.118 in	3 mm	2 mm	0.079 in	Black	2.2 A	5.55 mm	0.218 in	120 VDC	Push-Turn Lock	Solder	118.1 µin	3 µm

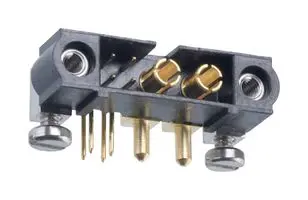

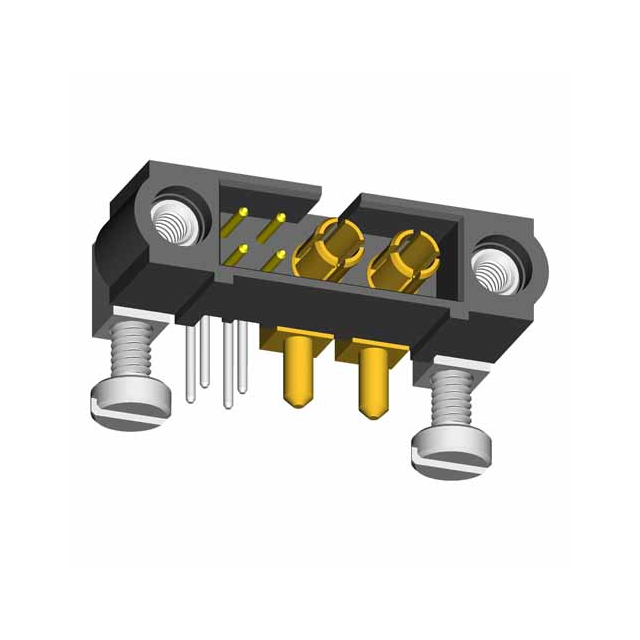

Harwin Inc. M80-5L10422M5-02-333-00-000			Right Angle Through Hole	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	2	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Gold		Male Pin	Header	All			-55 C	125 °C	Circular	6		Board to Board Cable	29.5 µin	0.75 µm	Shrouded - 4 Wall	0.118 in	3 mm	2 mm	0.079 in	Black	2.2 A	5.55 mm	0.218 in	800 V	Threaded	Solder

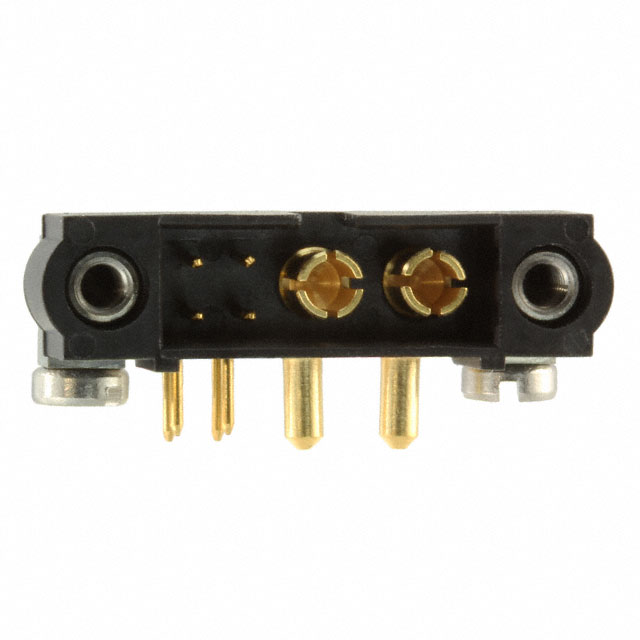

Harwin Inc. M80-5L10405M5-02-333-00-000			Right Angle Through Hole	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	2	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Gold		Male Pin	Header	All	0.079 "	2 mm	-55 C	125 °C	Circular	6		Board to Cable/Wire			Shrouded - 4 Wall	0.118 in	3 mm	2 mm	0.079 in	Black		5.55 mm	0.218 in	800 V	Threaded	Solder
Harwin Inc. M80-5L10642MC			Right Angle Through Hole	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	2	Keying Slot Mating Flange	Gold	Tin	Male Pin	Header	All	0.079 "	2 mm	-55 C	125 °C	Circular	6	Phosphor Bronze	Board to Board Cable	29.5 µin	0.75 µm	Shrouded - 4 Wall	0.118 in	3 mm	2 mm	0.079 in	Black	2.2 A	5.55 mm	0.218 in	120 VDC	Push-Turn Lock	Solder	118.1 µin	3 µm

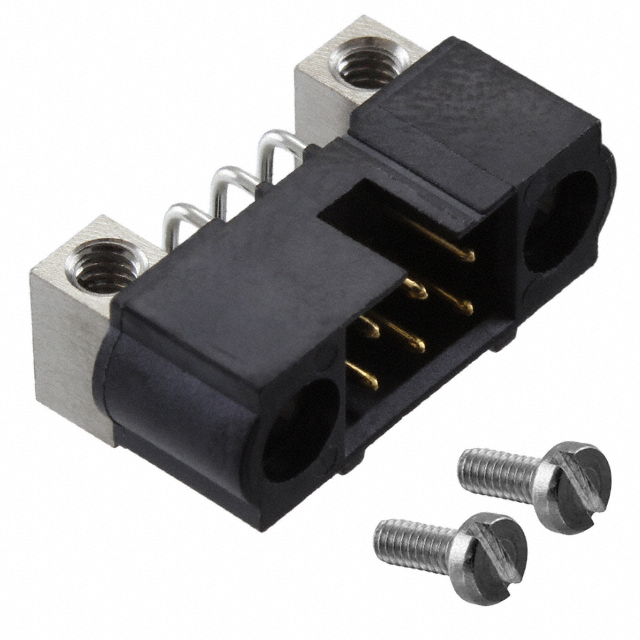

Harwin Inc. M80-5L10642MD			Right Angle Through Hole	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	2	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Gold	Tin	Male Pin	Header	All	0.079 "	2 mm	-55 C	125 °C	Circular	6	Phosphor Bronze	Board to Board Cable	29.5 µin	0.75 µm	Shrouded - 4 Wall	0.118 in	3 mm	2 mm	0.079 in	Black	2.2 A	5.55 mm	0.218 in	120 VDC 800 VAC	Push-Turn Lock	Solder	118.1 µin	3 µm
Harwin Inc. M80-5L11842MD	12 µin	0.3 µm	Right Angle Through Hole	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	2	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Gold	Tin	Female Socket Male Pin	Header	All	0.079 "	2 mm	-55 C	125 °C	Circular	18	Copper Phosphor Bronze	Board to Board Cable	29.5 µin	0.75 µm	Shrouded - 4 Wall	0.118 in	3 mm	2 mm	0.079 in	Black	2.2 A	5.55 mm	0.218 in	800 VAC	Push-Pull	Solder			0.1 in	2.54 mm
Harwin Inc. M80-5L13042MD	12 µin	0.3 µm	Right Angle Through Hole	UL94 V-0	Polyphenylene Sulfide (PPS) Glass Filled	2	Keying Slot Mating Flange Mounting Flange Mounting Hardware	Gold	Tin	Male Pin	Header	All	0.079 "	2 mm	-55 C	125 °C	Circular	30	Phosphor Bronze	Board to Board Cable	29.5 µin	0.75 µm	Shrouded - 4 Wall	0.118 in	3 mm	2 mm	0.079 in	Black	2.2 A	5.55 mm	0.218 in	800 VAC	Push-Turn Lock	Solder
