TLR341G Series

TLR™ Series, Low Voltage Operation Ground Sense Operational Amplifier

Catalog

TLR™ Series, Low Voltage Operation Ground Sense Operational Amplifier

Part	Gain Bandwidth Product	Current - Output / Channel [custom]	Output Type	Voltage - Supply Span (Max) [Max]	Current - Input Bias	Supplier Device Package	Voltage - Supply Span (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Circuits	Package / Case	Current - Supply	Mounting Type	Amplifier Type	Slew Rate	Voltage - Input Offset

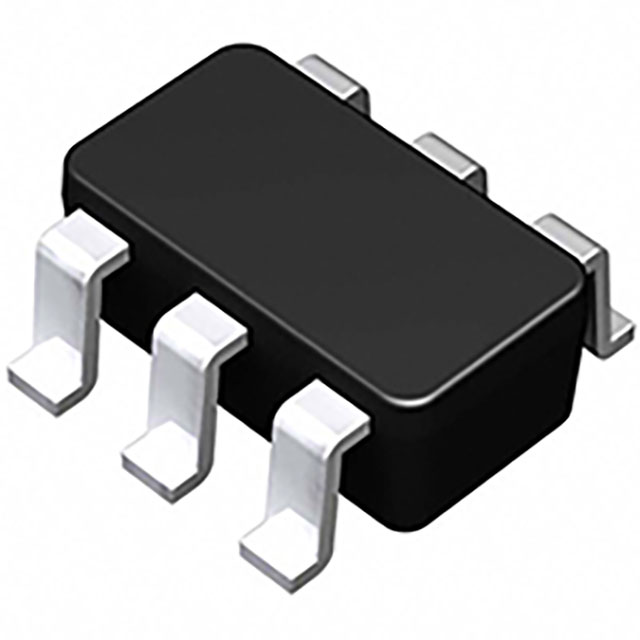

Rohm Semiconductor TLR341G-GTR	2.3 MHz	120 mA	Rail-to-Rail	5.5 V	1 pA	6-SSOP	1.8 V	-40 C	85 °C	1	SOT-23-6	75 A	Surface Mount	CMOS	1.2 V/s	300 V

Catalog

TLR™ Series, Low Voltage Operation Ground Sense Operational Amplifier

Description

TLR341G is single operational amplifier with low supply voltage operation and full swing output. This is suitable for battery-operated equipment. The MOSFET input stage provides low input bias current. It can be used for sensor applications. TLR341G includes shutdown function.
