PAG Series

Manufacturer: Chemi-Con

Catalog

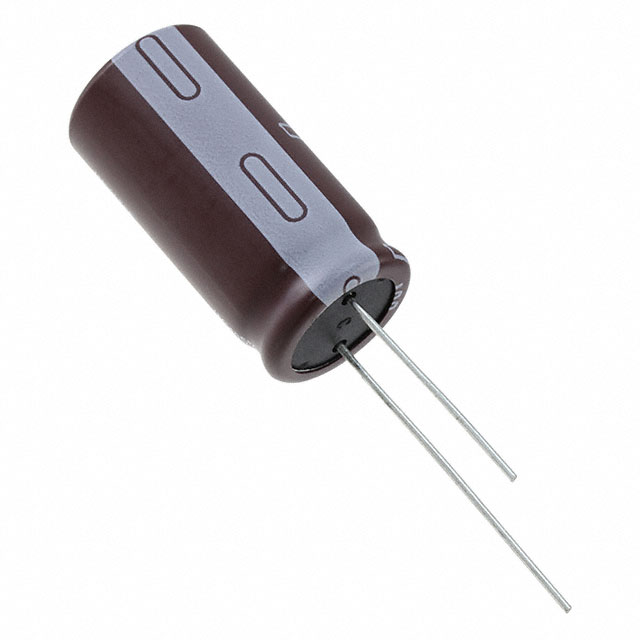

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 420VOLTS 56UF 14X30

Part	Ripple Current @ High Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ Low Frequency	Capacitance	Lead Spacing	Lead Spacing	Polarization	Tolerance	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lifetime @ Temp.	Package / Case	Mounting Type	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max)
Chemi-Con EPAG421ELL560MU30S	774 mA	105 ░C	-25 °C	430 mA	56 µF	0.295 in	7.5 mm	Polar	20 %	General Purpose	1.26 in	32 mm	2000 Hrs	Can Radial	Through Hole	420 V	0.571 in	14.5 mm
Chemi-Con EPAG201ELL471MM40S	2.085 A	105 ░C	-40 C	1.39 A	470 µF	0.295 in	7.5 mm	Polar	20 %	General Purpose	1.654 in	42 mm	2000 Hrs	Can Radial	Through Hole	200 VDC	0.709 in	18 mm
Chemi-Con EPAG451ELL680ML35S	900 mA	105 ░C	-25 °C	500 mA	68 µF	0.295 in	7.5 mm	Polar	20 %	General Purpose	1.457 in		2000 Hrs	Can Radial	Through Hole	450 V	0.63 in	16 mm	37 mm
Chemi-Con EPAG401ELL121MM30S	1.005 A	105 ░C	-40 C	670 mA	120 µF	0.295 in	7.5 mm	Polar	20 %	General Purpose	1.26 in	32 mm	2000 Hrs	Can Radial	Through Hole	400 V	0.709 in	18 mm
Chemi-Con EPAG201ELL391ML40S		105 ░C	-40 C	1.24 A	390 µF	0.295 in	7.5 mm	Polar	20 %	General Purpose	1.654 in	42 mm	2000 Hrs	Can Radial	Through Hole	200 VDC	0.63 in	16 mm
