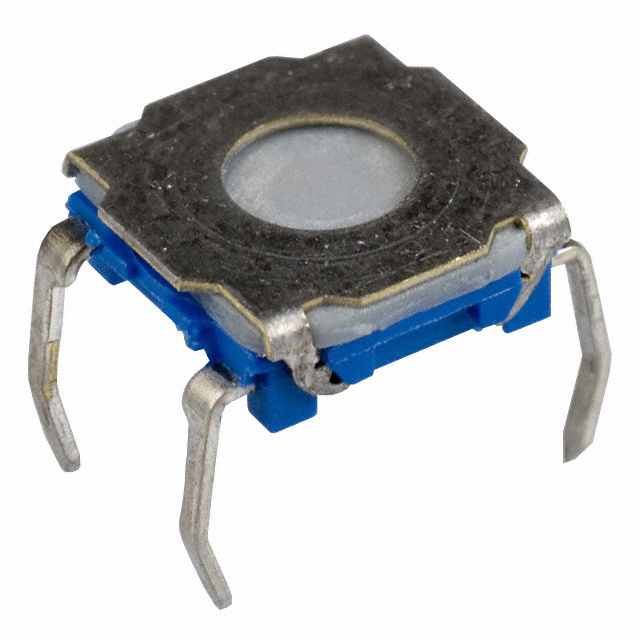

KSF0M2 Series
Manufacturer: Littelfuse/Commercial Vehicle Products
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 32V
| Part | Switch Function | Actuator Height off PCB, Vertical [z] | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Contact Rating @ Voltage | Actuator Orientation | Actuator Type | Outline [x] | Outline [y] | Mechanical Life | Ingress Protection | Mounting Type | Illumination | Switch Travel | Circuit | Operating Force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | Off-Mom | 2.6 mm | 85 °C | -40 °C | PC Pin | 0.05 A | Top Actuated | Without | 7.4 mm | 7.3 mm | 100000 Cycles | IP67 - Dust Tight Waterproof | Through Hole | Non-Illuminated | 0.25 mm | SPST-NO | 130 gf |
Littelfuse/Commercial Vehicle Products | Off-Mom | 2.6 mm | 85 °C | -40 °C | PC Pin | 0.05 A | Top Actuated | Without | 7.4 mm | 7.3 mm | 100000 Cycles | IP60 | Through Hole | Non-Illuminated | 0.25 mm | SPST-NO | 130 gf |
