DLM1 Series

Catalog

CONN PLUG 156POS PNL MNT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Features	Pitch	Pitch	Number of Columns	Number of Positions Loaded	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Termination	Contact Finish	Connector Type	Color	Note	Connector Usage	Current Rating (Amps)

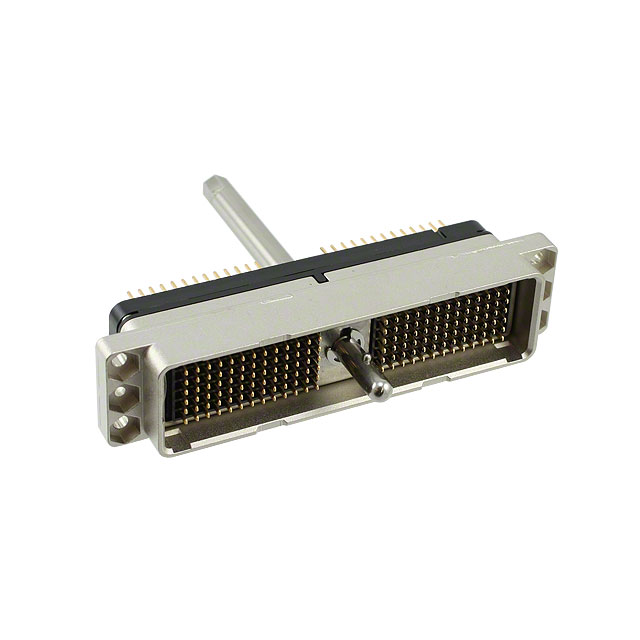

ITT Cannon, LLC DLM1-156PW6A	-40 C	105 ░C	UL94 V-0	Actuating Camshaft Shielding Zero Insertion Force (ZIF)	0.1 "	2.54 mm	26	All	Panel Mount	50 µin	1.27 µm	6	Solder	Gold	Plug Hermaphroditic Contacts	Black
ITT Cannon, LLC DLM1-156R				Actuating Camshaft Socket Shielding Zero Insertion Force (ZIF)	0.1 "	2.54 mm			Panel Mount			6			Housing for Non-Gendered Contacts		Contacts Not Included	Receptacle
ITT Cannon, LLC DLM1-156RC-F	-55 C	105 ░C	UL94 V-0	Actuating Camshaft Socket Shielding Zero Insertion Force (ZIF)	0.1 "	2.54 mm		All	Panel Mount	20 µin	0.51 µm	6	Solder	Gold	Receptacle Hermaphroditic Contacts	Black			4 A

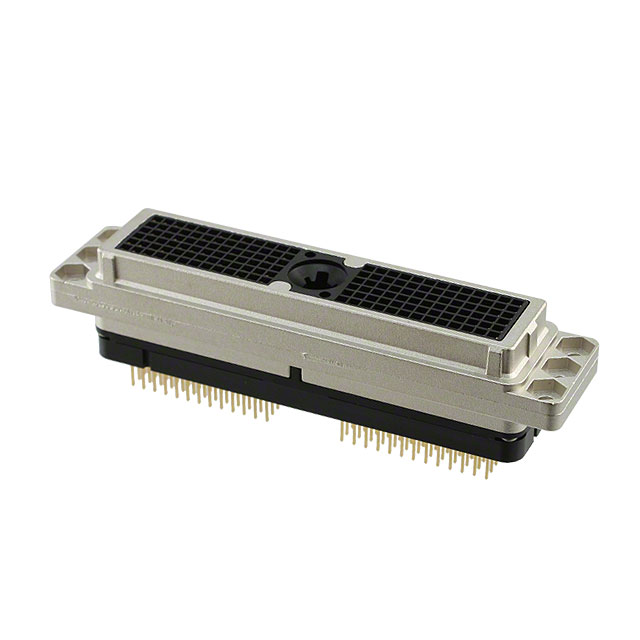

ITT Cannon, LLC DLM1-156RW6B	-55 C	105 ░C	UL94 V-0	Actuating Camshaft Socket Shielding Zero Insertion Force (ZIF)	0.1 "	2.54 mm	26	All	Panel Mount	50 µin	1.27 µm	6	Solder	Gold	Receptacle Hermaphroditic Contacts	Black

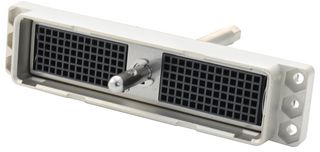

ITT Cannon, LLC DLM1-156P				Actuating Camshaft Shielding Zero Insertion Force (ZIF)	0.1 "	2.54 mm			Panel Mount			6			Housing for Non-Gendered Contacts		Contacts Not Included	Plug
