JB5CS05A Series
Manufacturer: JAE Electronics
Beta
⌘K

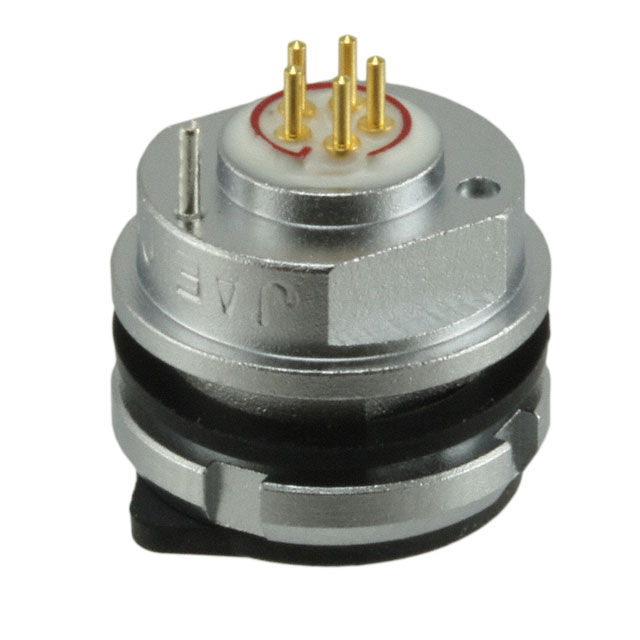

CONN RCPT FMALE 5POS GOLD SOLDER
| Part | Contact Finish - Mating | Shell Finish | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Shell Size - Insert | Applications | Voltage Rating | Color | Insert Material | Mounting Feature | Contact Material | Ingress Protection | Shell Material | Shielding | Features | Current Rating (Amps) | Mounting Type | Orientation | Fastening Type | Primary Material | Termination | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Gold | Chromium | 0.76 Ám | 30 Áin | 5 | S | Medical Telecommunications Test & Measurement | 320 VAC | Silver | Synthetic Resin | Bulkhead - Front Side Nut | Copper Alloy | IP68 - Dust Tight Waterproof | Copper Alloy | Shielded | Dust Cap Ground | 3 A | Panel Mount Through Hole | N (Normal) | Push-Pull | Metal | Solder | Receptacle Female Sockets | -55 C | 85 °C |
