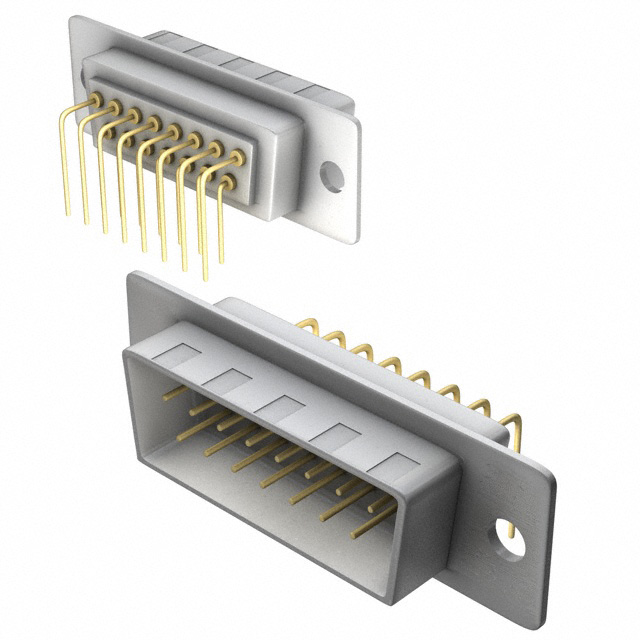

774-E15 Series
Manufacturer: NorComp Inc.
Beta
⌘K
IP67 15 / .370" ROHS COMPLIANT: YES
| Part | Dielectric Material | Color | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Contact Finish | Contact Type | Flange Feature | Connector Style | Current Rating (Amps) | Ingress Protection | Material Flammability Rating | Contact Finish Thickness | Connector Type | Number of Rows [custom] | Mounting Type | Backset Spacing | Backset Spacing | Number of Positions | Termination | Shell Material, Finish | Shell Size, Connector Layout | Features | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

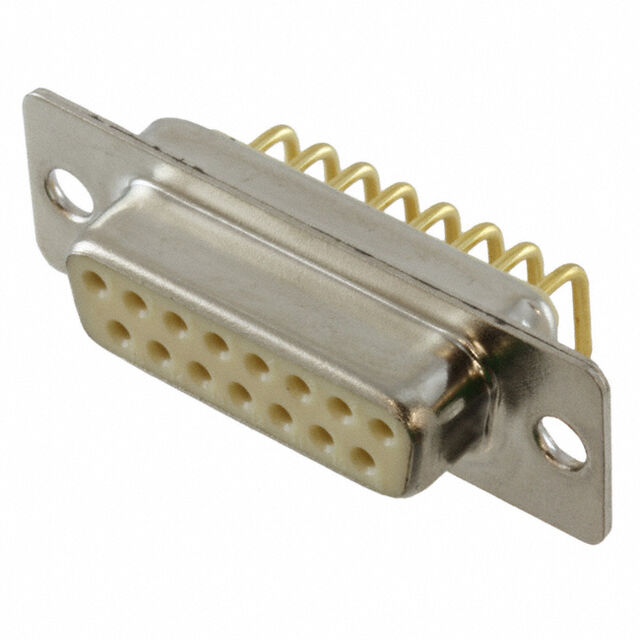

 NorComp Inc. | Polyamide (PA6T) Nylon 6T | White | 100 °C | -50 °C | Brass | Gold | Signal | Housing/Shell (Unthreaded) | D-Sub | 5 A | IP67 - Dust Tight Waterproof | UL94 V-0 | Flash | Receptacle Female Sockets | 2 | Panel Mount Right Angle Through Hole | 9.4 mm | 0.37 in | 15 | Solder | Nickel Plated Steel | 2 | ||
 NorComp Inc. | Polyamide (PA6T) Nylon 6T | White | 100 °C | -50 °C | Brass | Gold | Signal | Housing/Shell | D-Sub | 5 A | IP67 - Dust Tight Waterproof | UL94 V-0 | Flash | Receptacle Female Sockets | 2 | Panel Mount Right Angle Through Hole | 9.4 mm | 0.37 in | 15 | Solder | Nickel Plated Steel | 2 | Board Lock Mounting Brackets | 4-40 |
 NorComp Inc. | Polyamide (PA6T) Nylon 6T | White | 100 °C | -50 °C | Brass | Gold | Signal | 4-40 Mating Side Female Screwlock | D-Sub | 5 A | IP67 - Dust Tight Waterproof | UL94 V-0 | Flash | Plug Male Pins | 2 | Panel Mount Right Angle Through Hole | 9.4 mm | 0.37 in | 15 | Solder | Nickel Plated Steel | 2 | Grounding Indents Mounting Brackets | |
 NorComp Inc. | Polyamide (PA6T) Nylon 6T | White | 100 °C | -50 °C | Brass | Gold | Signal | Housing/Shell (Unthreaded) | D-Sub | 5 A | IP67 - Dust Tight Waterproof | UL94 V-0 | Flash | Plug Male Pins | 2 | Panel Mount Right Angle Through Hole | 9.4 mm | 0.37 in | 15 | Solder | Nickel Plated Steel | 2 | Grounding Indents |
