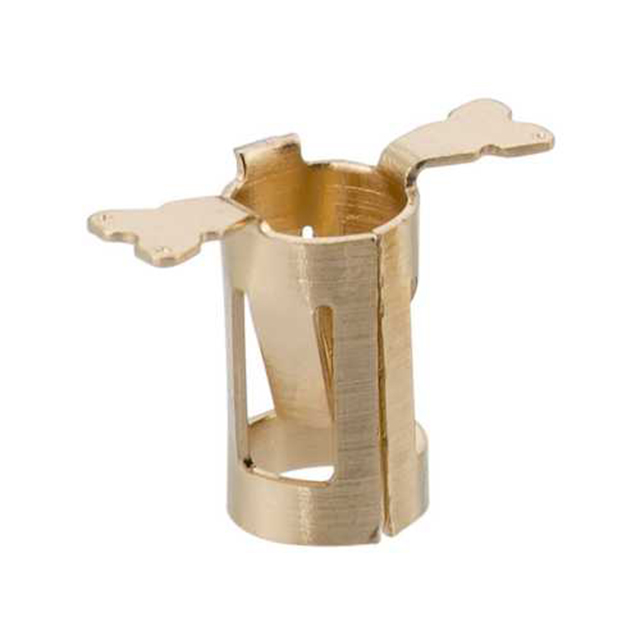

S9131 Series
Manufacturer: Harwin Inc.
Beta
⌘K
TERMINAL, TOP ENTRY, SOCKET, 2.6MM, SMD
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Insertion Force [Min] | Insertion Force [Max] | Contact Material | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Socket Depth | Socket Depth | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Tail Type | Contact Finish | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Max] | Length - Overall | Length - Overall | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 125 °C | -50 °C | 3 N | 6 N | Beryllium Copper | 2 mm | 0.079 in | 2.67 mm | 0.105 in | 0.102 in | 2.59 mm | No Tail | Gold | 0.031 in | 0.8 mm | 0.051 in | 1.3 mm | 0.16 in | 4.06 mm | Surface Mount |
