1502 Series

Catalog

CONN SOCKET STRIP SKT 60 POS 2MM SOLDER ST TOP ENTRY THRU-HOLE BOX

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Insulation Material	Contact Shape	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Number of Positions	Number of Rows [custom]	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Connector Type	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Termination	Insulation Color	Contact Type	Voltage Rating	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Features
3M Electronic Specialty 150260-6002-RB	200 µin	5.08 µm	Copper Alloy	Thermoplastic	Square	Gold	2 mm	0.079 in	0.177 in	4.5 mm	60	2	UL94 V-0	0.1 in	2.54 mm	Receptacle	Tin	-55 C	105 ░C	Push-Pull	Through Hole	0.76 Ám	30 Áin	Board to Board Cable	Solder	Black	Female Socket	500 V	0.079 "	2 mm	All

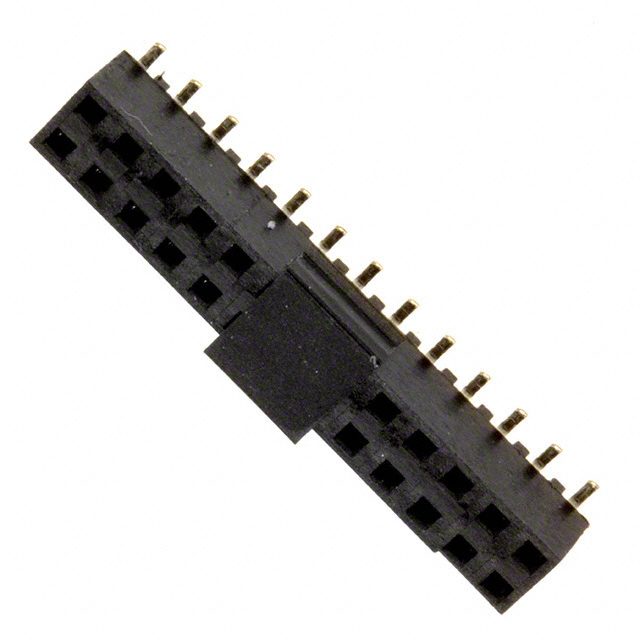

3M Electronic Specialty 150226-2020-RB-WD	200 µin	5.08 µm	Copper Alloy	Thermoplastic	Square	Gold	2 mm	0.079 in	0.183 in	4.65 mm	26	2	UL94 V-0			Receptacle	Tin	-55 C	105 ░C	Push-Pull	Surface Mount	0.76 Ám	30 Áin	Board to Board Cable	Solder	Black	Female Socket	500 V	0.079 "	2 mm	All	Board Guide Pick and Place
3M Electronic Specialty 150214-6002-TB	200 µin	5.08 µm	Copper Alloy	Thermoplastic	Square	Gold	2 mm	0.079 in	0.177 in	4.5 mm	14	2	UL94 V-0	0.1 in	2.54 mm	Receptacle	Tin-Lead	-55 C	105 ░C	Push-Pull	Through Hole	0.76 Ám	30 Áin	Board to Board Cable	Solder	Black	Female Socket	500 V	0.079 "	2 mm	All
3M Electronic Specialty 150212-2000-RB-WB	200 µin	5.08 µm	Copper Alloy	Thermoplastic	Square	Gold	2 mm	0.079 in	0.183 in	4.65 mm	12	2	UL94 V-0			Receptacle	Tin	-55 C	105 ░C	Push-Pull	Surface Mount	0.76 Ám	30 Áin	Board to Board Cable	Solder	Black	Female Socket	500 V	0.079 "	2 mm	All	Pick and Place
