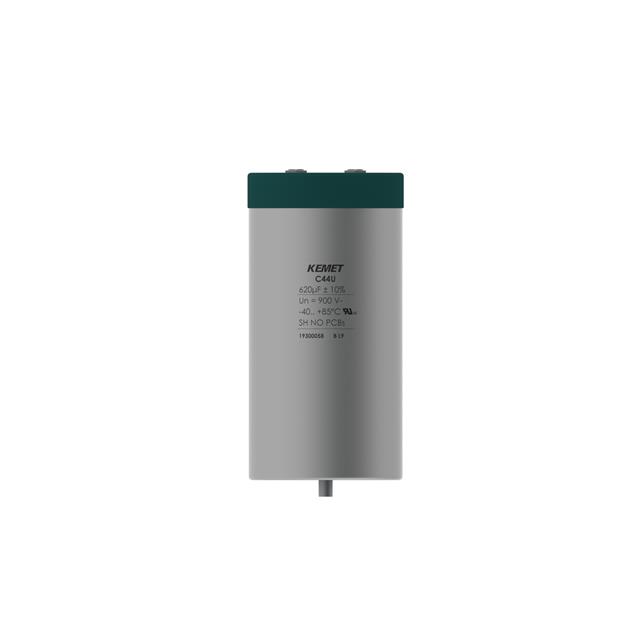

C44U-T Series

Manufacturer: KEMET

Catalog

FILM CAPACITORS 900VDC 500UF 10% DC LINK/FILTERING HIGH TEMP THB

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Termination	Lead Spacing	Lead Spacing	Voltage Rating - DC	ESR (Equivalent Series Resistance)	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Package / Case	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Dielectric Material	Features	Voltage Rating - DC	Height - Seated (Max) [Max]	Height - Seated (Max)
KEMET C44UOGT6500T83K	128 mm	5.039 in	500 µF	Threaded Female	1.26 in	32 mm	900 VDC	2 mOhms	85 °C	-40 C	10 %	Can Radial	Chassis Stud Mount	3.346 "	85 mm	DC Filtering DC Link	Polypropylene (PP) Metallized	High Temperature Long Life
KEMET C44UVGT6550T54K			550 µF	Threaded Female	1.969 in	50 mm	1800 V	2.1 mOhms	85 °C	-40 C	10 %	Can Radial	Chassis Stud Mount	4.567 "	116 mm	DC Filtering DC Link	Polypropylene (PP) Metallized	High Temperature Long Life	1.8 kV	10.827 in	275 mm
KEMET C44UOGT7210T54K			2.1 mF	Threaded Female	1.969 in	50 mm	900 VDC	1.5 mOhm	85 °C	-40 C	10 %	Can Radial	Chassis Stud Mount	4.567 "	116 mm	DC Filtering DC Link	Polypropylene (PP) Metallized	High Temperature Long Life		10.827 in	275 mm
