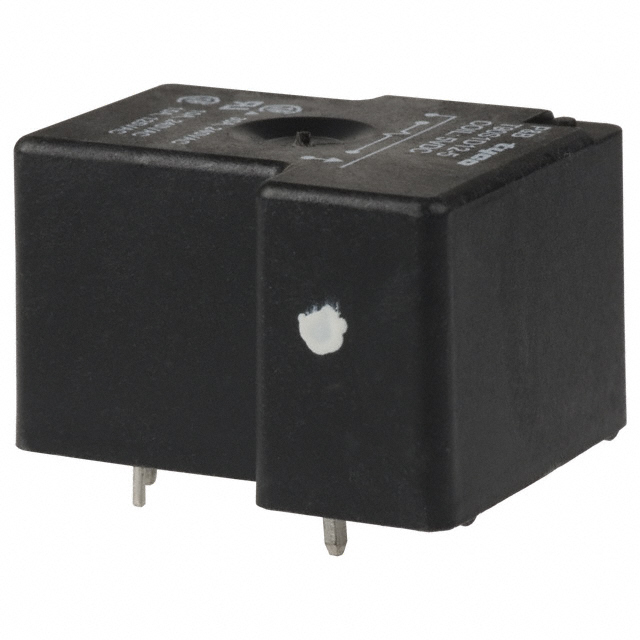

T90S1 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE SPST 30A 110V
| Part | Coil Resistance | Coil Type | Relay Type | Operate Time | Must Operate Voltage | Switching Voltage [Max] | Release Time | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Load - Max Switching | Mounting Type | Seal Rating | Contact Material | Must Release Voltage | Coil Voltage | Contact Rating (Current) | Contact Form | Coil Insulation | Termination Style | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 13.45 kOhms | Non Latching | General Purpose | 15 ms | 82.5 VDC | 277 VAC | 15 ms | -55 C | 85 °C | CSA UR | 4155 VA | Through Hole | Sealed - Fully | Silver Cadmium Oxide (AgCdO) | 11 VDC | 110 VDC | 30 A | SPST-NO (1 Form A) | Class F | PC Pin | |
 TE Connectivity AMP Connectors | |||||||||||||||||||||
TE Connectivity AMP Connectors | 27 Ohms | Non Latching | General Purpose | 15 ms | 3.75 VDC | 277 VAC | 15 ms | -55 C | 85 °C | CSA UR | 4155 VA | Through Hole | Sealed - Fully | Silver Cadmium Oxide (AgCdO) | 0.5 VDC | 5 VDC | 30 A | SPST-NO (1 Form A) | Class F | PC Pin | 185 mA |
TE Connectivity AMP Connectors | 380 Ohms | Non Latching | General Purpose | 15 ms | 13.5 VDC | 277 VAC | 15 ms | -55 C | 85 °C | CSA UR | 4155 VA | Through Hole | Sealed - Fully | Silver Cadmium Oxide (AgCdO) | 1.8 VDC | 18 VDC | 30 A | SPST-NO (1 Form A) | Class F | PC Pin | 47 mA |
TE Connectivity AMP Connectors | 660 Ohms | Non Latching | General Purpose | 15 ms | 18 VDC | 277 VAC | 15 ms | -55 C | 85 °C | CSA UR | 4155 VA | Through Hole | Sealed - Fully | Silver Cadmium Oxide (AgCdO) | 2.4 VDC | 24 VDC | 30 A | SPST-NO (1 Form A) | Class F | PC Pin | 36 mA |
TE Connectivity AMP Connectors | 660 Ohms | Non Latching | General Purpose | 15 ms | 18 VDC | 277 VAC | 15 ms | -55 C | 85 °C | CSA UR | 4155 VA | Through Hole | Sealed - Fully | Silver Cadmium Oxide (AgCdO) | 2.4 VDC | 24 VDC | 30 A | SPST-NO (1 Form A) | Class F | PC Pin | 36 mA |
TE Connectivity AMP Connectors | 660 Ohms | Non Latching | General Purpose | 15 ms | 18 VDC | 277 VAC | 15 ms | -55 C | 85 °C | CSA UR | 4155 VA | Through Hole | Sealed - Fully | Silver Cadmium Oxide (AgCdO) | 2.4 VDC | 24 VDC | 30 A | SPST-NO (1 Form A) | Class F | PC Pin | 36 mA |
 TE Connectivity AMP Connectors | 97 Ohms | Non Latching | General Purpose | 15 ms | 6.75 VDC | 277 VAC | 15 ms | -55 C | 85 °C | CSA UR | 4155 VA | Through Hole | Sealed - Fully | Silver Cadmium Oxide (AgCdO) | 0.9 VDC | 9 VDC | 30 A | SPST-NO (1 Form A) | Class F | PC Pin | 92.8 mA |
