0714-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

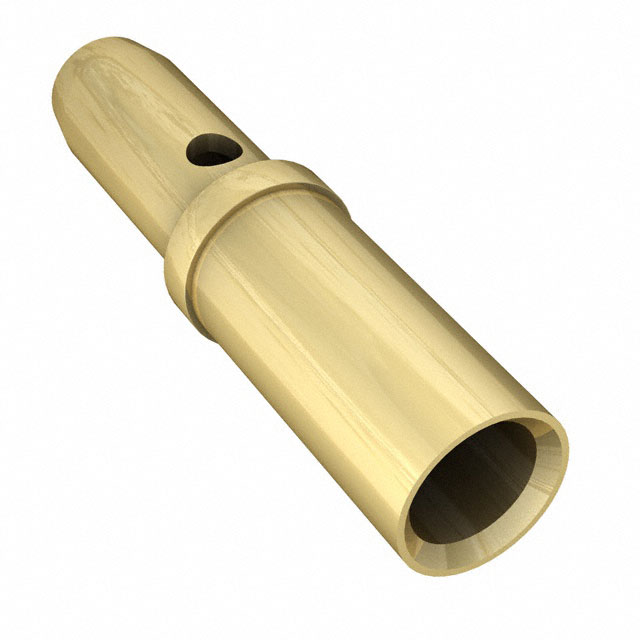

CONN PIN RCPT .065-.082 SOLDER
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Material | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Termination | Contact Finish | Tail Type | Length - Overall | Length - Overall | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Min] | Contact Finish Thickness | Contact Finish Thickness | Socket Depth | Socket Depth |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 3.35 mm | 0.132 in | Beryllium Copper | 2.72 mm | 0.107 in | Solder | Gold | Crimp | 13.16 mm | 0.518 in | 2.08 mm | 0.082 " | 0.065 " | 1.65 mm | 30 Áin | 0.76 Ám | 0.214 in | 5.44 mm |
