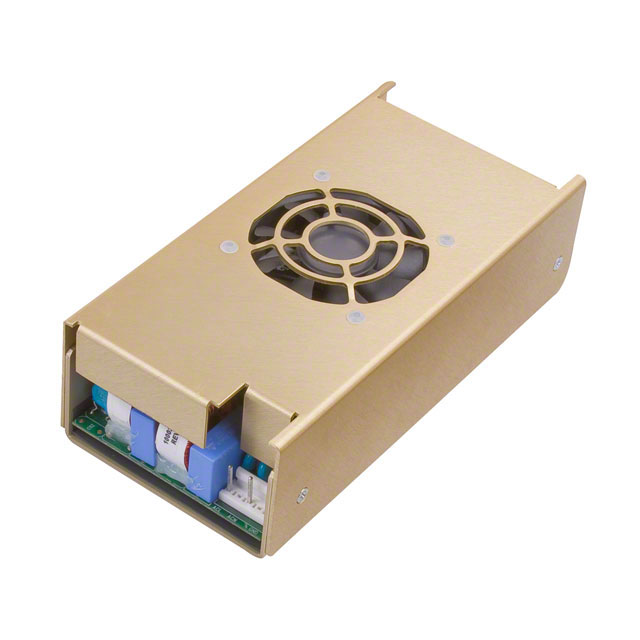

MFA420 Series
Manufacturer: XP Power
Beta
⌘K
AC/DC CONVERTER 48V 420W
| Part | Minimum Load Required | Features | Type | Voltage - Output 1 | Efficiency | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Current - Output 1 | Approval Agency | Applications | Power (Watts) | Standard Number | Voltage - Isolation | Mounting Type | Size / Dimension [z] | Size / Dimension [y] | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | Adjustable Output Hot Swappable Load Sharing Standby Output Universal Input | Enclosed | 48 V | 88 % | 3.33 " | 2.8 in | 6.8 " | 172.7 mm | 84.5 mm | 52.8 mm | 70 °C | -10 °C | 1 | 8.8 A | CB CE | ITE (Commercial) | 420 W 436 W | 62368-1 | 3000 V | Chassis Mount | ||||
 XP Power | Adjustable Output Hot Swappable Load Sharing Standby Output Universal Input | Open Frame | 48 V | 88 % | 3.2 " | 1.5 in | 6.8 " | 172.7 mm | 70 °C | -10 °C | 1 | 8.8 A | CB CE | ITE (Commercial) | 420 W 436 W | 62368-1 | 3000 V | Chassis Mount | 38.1 mm | 81.3 mm | ||||
XP Power | Adjustable Output Hot Swappable Load Sharing Standby Output Universal Input | Enclosed | 24 V | 87 % | 3.33 " | 2.8 in | 6.8 " | 172.7 mm | 84.5 mm | 52.8 mm | 70 °C | -10 °C | 1 | 17.5 A | CB CE | ITE (Commercial) | 420 W | 62368-1 | 3000 V | Chassis Mount | 434 W | |||
XP Power | Adjustable Output Hot Swappable Load Sharing Standby Output Universal Input | Open Frame | 12 V | 86 % | 3.2 " | 1.5 in | 6.8 " | 172.7 mm | 70 °C | -10 °C | 1 | 35 A | CB CE | ITE (Commercial) | 420 W | 62368-1 | 3000 V | Chassis Mount | 38.1 mm | 81.3 mm | 434 W | |||
XP Power | Adjustable Output Hot Swappable Load Sharing Standby Output Universal Input | Enclosed | 12 V | 86 % | 3.33 " | 2.8 in | 6.8 " | 172.7 mm | 84.5 mm | 52.8 mm | 70 °C | -10 °C | 1 | 35 A | CB CE | ITE (Commercial) | 420 W | 62368-1 | 3000 V | Chassis Mount | 434 W | |||
 XP Power | Adjustable Output Hot Swappable Load Sharing Standby Output Universal Input | Enclosed | 48 V | 88 % | 3.33 " | 1.75 in | 8.2 in | 208.3 mm | 84.5 mm | 44.5 mm | 70 °C | -10 °C | 1 | 8.8 A | CB CE | ITE (Commercial) | 420 W 436 W | 62368-1 | 3000 V | Chassis Mount | ||||
XP Power | Adjustable Output Hot Swappable Load Sharing Standby Output Universal Input | Enclosed | 12 V | 86 % | 3.33 " | 1.75 in | 8.2 in | 208.3 mm | 84.5 mm | 44.5 mm | 70 °C | -10 °C | 1 | 35 A | CB CE | ITE (Commercial) | 420 W | 62368-1 | 3000 V | Chassis Mount | 434 W |
