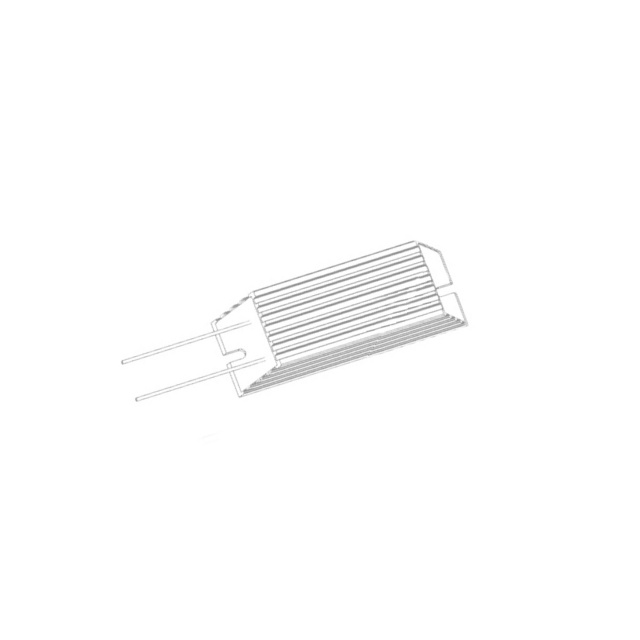

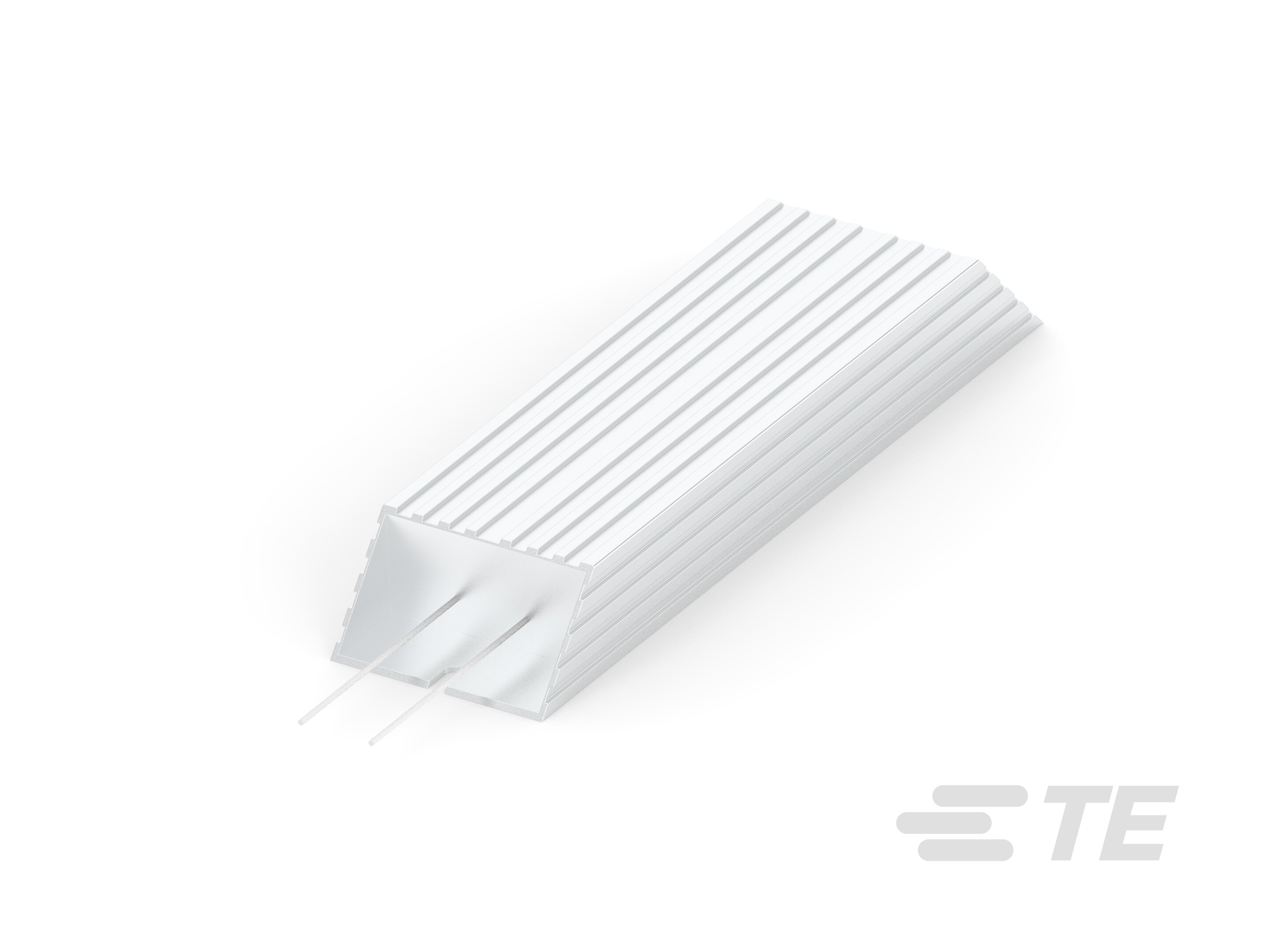

CGS CJP Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

RES, 1K, 5%, 1KW, WIREWOUND ROHS COMPLIANT: YES

...

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Temperature Coefficient	Resistance	Composition	Coating, Housing Type	Lead Style	Mounting Feature	Package / Case	Power (Watts)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Height - Seated (Max) [Max]	Size / Dimension [y]
TE Connectivity AMP Connectors CJP1000J1K0J	400 mm	2.362 in	15.748 in	60 mm	200 ppm/°C	1000 Ohms	Wirewound	Aluminum	Wire Leads	Flanges	Rectangular Wire Leads	1 kW	31 mm	1.22 "	250 °C	-25 °C	5 %
TE Connectivity AMP Connectors CJP400J3R9J	265 mm	2.362 in	10.433 in	60 mm	200 ppm/°C	3.9 Ohms	Wirewound	Aluminum	Wire Leads	Flanges	Rectangular Wire Leads	400 W	31 mm	1.22 "	250 °C	-25 °C	5 %
TE Connectivity AMP Connectors CJP120J150RJ	190 mm	1.575 "	7.48 in	40 mm	200 ppm/°C	150 Ohms	Wirewound	Aluminum	Wire Leads	Flanges	Rectangular Wire Leads	120 W		0.827 "	250 °C	-25 °C	5 %	21 mm
TE Connectivity AMP Connectors CJP600J220RJ	335 mm	2.362 in	13.189 in	60 mm	200 ppm/°C	220 Ohms	Wirewound	Aluminum	Wire Leads	Flanges	Rectangular Wire Leads	600 W	31 mm	1.22 "	250 °C	-25 °C	5 %
TE Connectivity AMP Connectors CJP100J330RJ	165 mm	1.575 "	6.496 "	40 mm	200 ppm/°C	330 Ohms	Wirewound	Aluminum	Wire Leads	Flanges	Rectangular Wire Leads	100 W		0.827 "	250 °C	-25 °C	5 %	21 mm
TE Connectivity AMP Connectors CJP1000J39RJ	400 mm	2.362 in	15.748 in	60 mm	200 ppm/°C	39 Ohms	Wirewound	Aluminum	Wire Leads	Flanges	Rectangular Wire Leads	1 kW	31 mm	1.22 "	250 °C	-25 °C	5 %
TE Connectivity AMP Connectors CJP600J2R2J	335 mm	2.362 in	13.189 in	60 mm	200 ppm/°C	2.2 Ohms	Wirewound	Aluminum	Wire Leads	Flanges	Rectangular Wire Leads	600 W	31 mm	1.22 "	250 °C	-25 °C	5 %
TE Connectivity AMP Connectors CJP1000J3R3J	400 mm	2.362 in	15.748 in	60 mm	200 ppm/°C	3.3 Ohms	Wirewound	Aluminum	Wire Leads	Flanges	Rectangular Wire Leads	1 kW	31 mm	1.22 "	250 °C	-25 °C	5 %
TE Connectivity AMP Connectors CJP300J3R3J	8.465 " 215 mm				200 ppm/°C	3.3 Ohms	Wirewound	Aluminum	Wire Leads	Flanges	Rectangular Wire Leads	300 W	31 mm	1.22 "	250 °C	-25 °C	5 %		2.362 " 60 mm
TE Connectivity AMP Connectors CJP100J180RJ	165 mm	1.575 "	6.496 "	40 mm	200 ppm/°C	180 Ohms	Wirewound	Aluminum	Wire Leads	Flanges	Rectangular Wire Leads	100 W		0.827 "	250 °C	-25 °C	5 %	21 mm
