78208 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

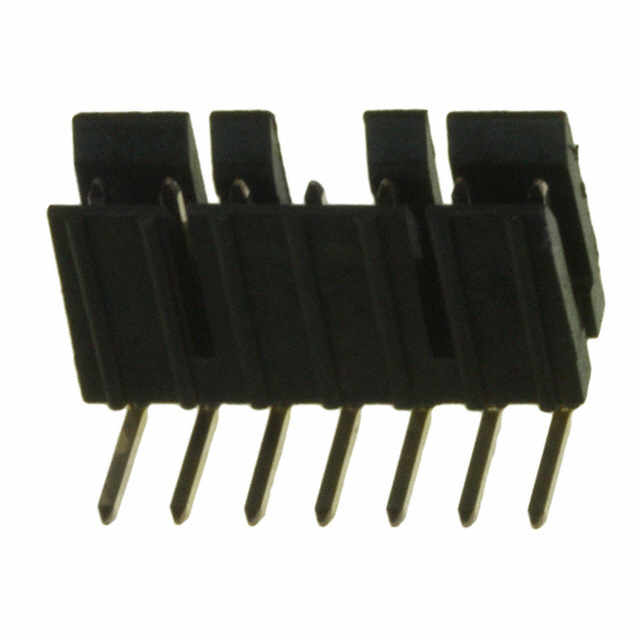

CONN HEADER R/A 7POS 2.54MM
| Part | Termination | Pitch - Mating | Pitch - Mating | Fastening Type | Number of Rows | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Height | Insulation Height | Features | Mounting Type | Number of Positions | Contact Length - Mating [x] | Contact Length - Mating | Style | Shrouding | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Contact Shape | Contact Type | Material Flammability Rating | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Material | Number of Positions Loaded | Insulation Color | Contact Material | Contact Finish - Mating | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Solder | 0.1 in | 2.54 mm | Friction Lock | 1 | 30 Áin | 0.76 Ám | 5.16 mm | 0.203 in | Keying Slot | Through Hole Right Angle | 7 | 0.23 in | 5.84 mm | Board to Cable/Wire | Shrouded - 2 Wall | -40 °C | 105 ░C | Header | Square | Male Pin | UL94 V-0 | 0.12 in | 3.05 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled | All | Black | Phosphor Bronze | Gold or Gold GXT™ | ||
Amphenol ICC (FCI) | Solder | 0.1 in | 2.54 mm | Friction Lock | 1 | 30 Áin | 0.76 Ám | 5.16 mm | 0.203 in | Keying Slot | Through Hole Right Angle | 13 | 0.23 in | 5.84 mm | Board to Cable/Wire | Shrouded - 2 Wall | Header | Square | Male Pin | UL94 V-0 | 0.12 in | 3.05 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled | All | Black | Phosphor Bronze | Gold or Gold GXT™ | ||||
Amphenol ICC (FCI) | Solder | 0.1 in | 2.54 mm | Friction Lock | 1 | 50 µin | 1.27 µm | 5.16 mm | 0.203 in | Keying Slot | Through Hole Right Angle | 10 | 0.23 in | 5.84 mm | Board to Cable/Wire | Shrouded - 2 Wall | -40 °C | 105 ░C | Header | Square | Male Pin | UL94 V-0 | 0.12 in | 3.05 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled | All | Black | Phosphor Bronze | Gold or Gold GXT™ | ||
Amphenol ICC (FCI) | Solder | 0.1 in | 2.54 mm | Friction Lock | 1 | 100 çin | 2.54 çm | 5.16 mm | 0.203 in | Keying Slot | Through Hole Right Angle | 13 | 0.23 in | 5.84 mm | Board to Cable/Wire | Shrouded - 2 Wall | -40 °C | 105 ░C | Header | Square | Male Pin | UL94 V-0 | 0.12 in | 3.05 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled | All | Black | Phosphor Bronze | |||
Amphenol ICC (FCI) | Solder | 0.1 in | 2.54 mm | Friction Lock | 1 | 30 Áin | 0.76 Ám | 5.16 mm | 0.203 in | Keying Slot | Through Hole Right Angle | 9 | 0.23 in | 5.84 mm | Board to Cable/Wire | Shrouded - 2 Wall | Header | Square | Male Pin | UL94 V-0 | 0.12 in | 3.05 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled | All | Black | Phosphor Bronze | Gold or Gold GXT™ | ||||
Amphenol ICC (FCI) | Solder | 0.1 in | 2.54 mm | Friction Lock | 1 | 50 µin | 1.27 µm | 5.16 mm | 0.203 in | Keying Slot | Through Hole Right Angle | 8 | 0.23 in | 5.84 mm | Board to Cable/Wire | Shrouded - 2 Wall | -40 °C | 105 ░C | Header | Square | Male Pin | UL94 V-0 | 0.12 in | 3.05 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled | All | Black | Phosphor Bronze | Gold or Gold GXT™ | ||
Amphenol ICC (FCI) | Solder | 0.1 in | 2.54 mm | Friction Lock | 1 | 15 µin | 0.38 µm | 5.16 mm | 0.203 in | Keying Slot | Through Hole Right Angle | 10 | 0.23 in | 5.84 mm | Board to Cable/Wire | Shrouded - 2 Wall | Header | Square | Male Pin | UL94 V-0 | 0.12 in | 3.05 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled | All | Black | Phosphor Bronze | Gold or Gold GXT™ | ||||
Amphenol ICC (FCI) | Solder | 0.1 in | 2.54 mm | Friction Lock | 1 | 100 çin | 2.54 çm | 5.16 mm | 0.203 in | Keying Slot | Through Hole Right Angle | 9 | 0.23 in | 5.84 mm | Board to Cable/Wire | Shrouded - 2 Wall | -40 °C | 105 ░C | Header | Square | Male Pin | UL94 V-0 | 0.12 in | 3.05 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled | All | Black | Phosphor Bronze | |||
Amphenol ICC (FCI) | Solder | 0.1 in | 2.54 mm | Friction Lock | 1 | 30 Áin | 0.76 Ám | 5.16 mm | 0.203 in | Keying Slot | Through Hole Right Angle | 0.23 in | 5.84 mm | Board to Cable/Wire | Shrouded - 2 Wall | Header | Square | Male Pin | UL94 V-0 | Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled | All | Black | Phosphor Bronze | Gold or Gold GXT™ | 4.83 mm | 0.19 in | |||||
Amphenol ICC (FCI) | Solder | 0.1 in | 2.54 mm | Friction Lock | 1 | 30 Áin | 0.76 Ám | 5.16 mm | 0.203 in | Keying Slot | Through Hole Right Angle | 13 | 0.23 in | 5.84 mm | Board to Cable/Wire | Shrouded - 2 Wall | -40 °C | 105 ░C | Header | Square | Male Pin | UL94 V-0 | 0.12 in | 3.05 mm | Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled | All | Black | Phosphor Bronze | Gold or Gold GXT™ |
