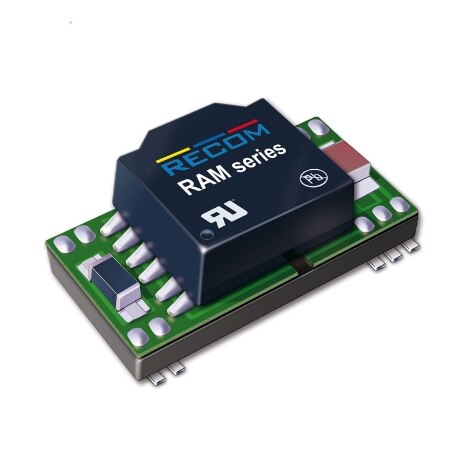

RAM Series

Catalog

ISOLATED DC/DC CONVERTERS - SMD 1W 12VIN 05VOUT 4KVDC ISO

Part	Type	Voltage - Isolation	Voltage - Input (Max) [Max]	Efficiency	Number of Outputs	Features	Applications	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]
Recom Power RAM-1205S/H-R	Isolated Module	4000 V	13.2 V	80 %	1	SCP	ITE (Commercial) Medical	200 mA	10.8 V	5 V	-40 C	100 °C
Recom Power RAM-2405S	Isolated Module	3000 V	26.4 V	80 %	1	SCP	ITE (Commercial)	200 mA	21.6 V	5 V	-40 C	100 °C
Recom Power RAM-1205S	Isolated Module	3000 V	13.2 V	80 %	1	SCP	ITE (Commercial)	200 mA	10.8 V	5 V	-40 C	100 °C
Recom Power RAM-2405S/H-R	Isolated Module	4000 V	26.4 V	80 %	1	SCP	ITE (Commercial) Medical	200 mA	21.6 V	5 V	-40 C	100 °C
Recom Power RAM-2405S/H	Isolated Module	4000 V	26.4 V	80 %	1	SCP	ITE (Commercial) Medical	200 mA	21.6 V	5 V	-40 C	100 °C
Recom Power RAM-2405S-R	Isolated Module	3000 V	26.4 V	80 %	1	SCP	ITE (Commercial)	200 mA	21.6 V	5 V	-40 C	100 °C
Recom Power RAM-0505S-R	Isolated Module	3000 V	5.5 V	78 %	1	SCP	ITE (Commercial)	200 mA	4.5 V	5 V	-40 C	100 °C
Recom Power RAM-1205S-R	Isolated Module	3000 V	13.2 V	80 %	1	SCP	ITE (Commercial)	200 mA	10.8 V	5 V	-40 C	100 °C
Recom Power RAM-0505S/H-R	Isolated Module	4000 V	5.5 V	78 %	1	SCP	ITE (Commercial) Medical	200 mA	4.5 V	5 V	-40 C	100 °C
Recom Power RAM-0505S/H	Isolated Module	4000 V	5.5 V	78 %	1	SCP	ITE (Commercial) Medical	200 mA	4.5 V	5 V	-40 C	100 °C
