7406-1561 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

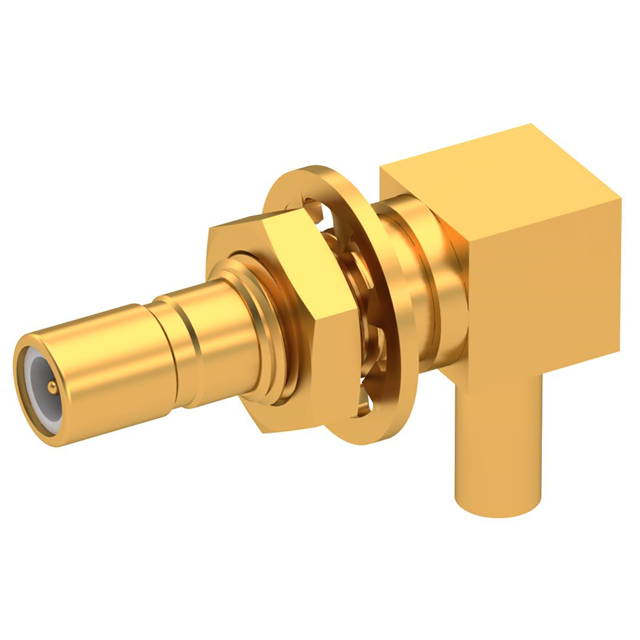

SSMB M RA BHD SD .045
| Part | Body Material | Body Finish | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Dielectric Material | Includes | Mating Cycles | Contact Termination | Housing Color | Mounting Feature | Cable Group | Center Contact Material | Connector Type | Connector Style | Impedance | Number of Ports | Frequency - Max [Max] | Mounting Type | Shield Termination | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Beryllium Copper | Gold | 250 V | -65 ░C | 165 °C | Gold | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Lockwasher 1 Nut | 500 | Solder | Gold | Bulkhead - Front Side Nut | M17/151 (0.047" Semi Rigid) | Beryllium Copper | Jack Male Pin | SSMB | 50 Ohms | 1 | 12.4 GHz | Panel Mount Right Angle | Solder | Snap-On |
