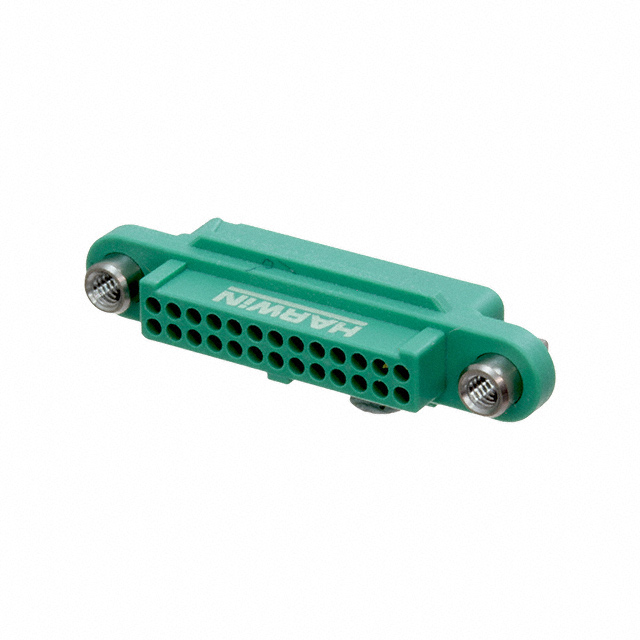

Gecko-SL Series

Catalog

HEADERS & WIRE HOUSINGS 1.25MM F 2X8 HOUSING W/ REVERSE FIX

Part	Features	Pitch	Pitch	Row Spacing	Row Spacing	Number of Positions	Mounting Type	Number of Rows [custom]	Contact Type	Contact Termination	Color	Insulation Material	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Voltage Rating	Current Rating (Amps)	Style	Number of Positions Loaded	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Mated Stacking Heights	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Contact Finish - Mating	Number of Positions [custom]	Insulation Height	Insulation Height	Length [x]	Length [x]	Length [x]	Contact Finish	Cable Termination	Shielding	Pitch - Connector	Pitch - Connector	Note	Fastening Type	Contact Shape	Contact Material	Shrouding	Length	Length	Length
Harwin Inc. G125-2241696F2	Mating Flange Polarizing Key Threaded Inserts	0.049 in	1.25 mm	1.25 mm	0.049 in	16	Free Hanging (In-Line)	2	Female Socket	Crimp	Green	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Receptacle	150 °C	-65 ░C
Harwin Inc. G125-FS13405F2P	Pick and Place Polarizing Key						Surface Mount	2	Female Socket				Receptacle	150 °C	-65 ░C	Solder	450 V	2 A	Board to Board Cable	All	Green	8 µin	0.203 µm	Gold	0.049 in	1.25 mm	7.33 mm 7.4 mm	1.25 mm	0.049 in	UL94 V-0	Gold	34	5.25 mm	0.207 in
Harwin Inc. G125-MC13405M1-0300M1	Polarizing Key Screw Lock							2					Plug to Plug																			34			0.984 ft	300 mm	11.81 in	Gold	Crimp	Unshielded	0.049 in	1.25 mm
Harwin Inc. G125-2242696F2	Mating Flange Polarizing Key Threaded Inserts	0.049 in	1.25 mm	1.25 mm	0.049 in	26	Free Hanging (In-Line)	2	Female Socket	Crimp	Green	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Receptacle	150 °C	-65 ░C																												Contacts Not Included
Harwin Inc. G125-MS12605M1R	Mating Flange Pick and Place Polarizing Key					26	Surface Mount	2	Male Pin			Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Header	150 °C	-65 ░C	Solder	450 V	2 A	Board to Board Cable	All	Green	8 µin	0.203 µm	Gold	0.049 in	1.25 mm		1.25 mm	0.049 in	UL94 V-0	Gold		4.9 mm	0.193 "										Threaded	Circular	Phosphor Bronze	Shrouded - 4 Wall

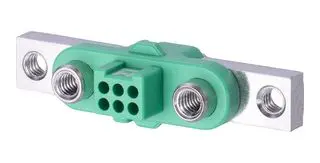

Harwin Inc. G125-2240696F5	Mating Flange Mounting Flange Polarizing Key Threaded Inserts	0.049 in	1.25 mm	1.25 mm	0.049 in	6	Panel Mount	2	Female Socket	Crimp	Green	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Receptacle	150 °C	-65 ░C
Harwin Inc. G125-3242696M5	Mating Flange Mounting Flange Polarizing Key Threaded Inserts	0.049 in	1.25 mm	1.25 mm	0.049 in	26	Panel Mount	2	Male Pin	Crimp	Green	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Plug	150 °C	-65 ░C
Harwin Inc. G125-MS13405M1R	Mating Flange Pick and Place Polarizing Key						Surface Mount	2	Male Pin			Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Header	150 °C	-65 ░C	Solder	450 V	2 A	Board to Board Cable	All	Green	8 µin	0.203 µm	Gold	0.049 in	1.25 mm		1.25 mm	0.049 in	UL94 V-0	Gold	34	4.9 mm	0.193 "										Threaded	Circular	Phosphor Bronze	Shrouded - 4 Wall

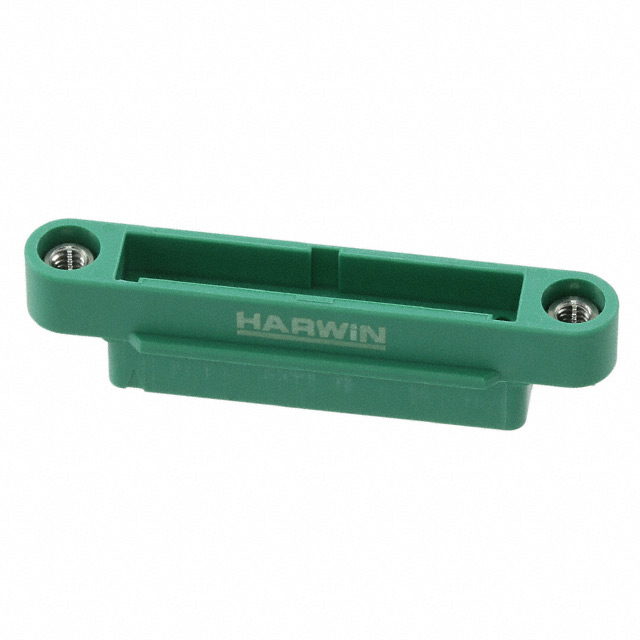

Harwin Inc. G125-3243496M1	Threaded Inserts	0.049 in	1.25 mm	1.25 mm	0.049 in		Free Hanging (In-Line)	2	Male Pin	Crimp	Green	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Plug	150 °C	-65 ░C																	34											Contacts Not Included
Harwin Inc. G125-MC11205M1-0150L	Polarizing Key Screw Lock					12		2					Plug to Individual Wire Leads																									Gold	Crimp	Unshielded	0.049 in	1.25 mm						5.91 in	0.492 ft	150 mm
