HLE-136 Series

Headers & Wire Housings Cost-Effective Reliable Socket, .100" (2.54 mm) Pitch

Manufacturer: Samtec Inc.

Catalog

Headers & Wire Housings Cost-Effective Reliable Socket, .100" (2.54 mm) Pitch

Catalog

Headers & Wire Housings Cost-Effective Reliable Socket, .100" (2.54 mm) Pitch

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Number of Positions Loaded	Contact Finish - Mating	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Voltage Rating	Insulation Height	Insulation Height	Insulation Material	Fastening Type	Mounting Type	Connector Type	Current Rating (Amps)	Contact Finish - Post	Contact Material	Contact Shape	Number of Rows	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Contact Length - Post	Contact Length - Post
Samtec Inc. HLE-120-02-F-DV-A-P	-55 °C	125 °C	Black	All	Gold	Solder	2.54 mm	0.1 in	40	400 VAC	3.66 mm	0.144 in	Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount	Receptacle	4.1 A	Tin	Beryllium Copper	Square	2	Board Guide Pick and Place	3 µin	0.076 µm	Female Socket	0.1 in	2.54 mm
Samtec Inc. HLE-117-02-G-DV-A-P-TR	-55 °C	125 °C	Black	All	Gold	Solder	2.54 mm	0.1 in	34	400 VAC	3.66 mm	0.144 in	Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount	Receptacle	4.1 A	Gold	Beryllium Copper	Square	2	Board Guide Pick and Place	20 µin	0.51 µm	Female Socket	0.1 in	2.54 mm	3 µin	0.076 µm
Samtec Inc. HLE-150-02-L-DV-BE	-55 °C	125 °C	Black	All	Gold	Solder	2.54 mm	0.1 in	100	400 VAC	3.66 mm	0.144 in	Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount	Receptacle Bottom Entry	4.1 A	Tin	Beryllium Copper	Square	2		10 çin	0.25 çm	Female Socket	0.1 in	2.54 mm

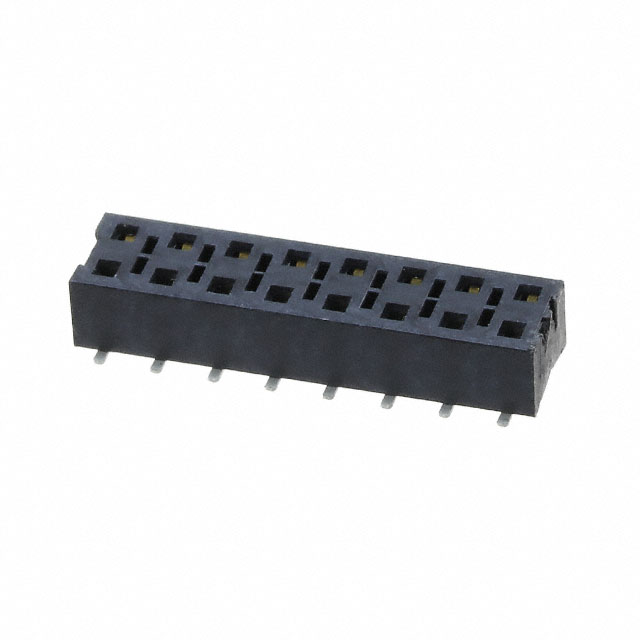

Samtec Inc. HLE-108-02-L-DV	-55 °C	125 °C	Black	All	Gold	Solder	2.54 mm	0.1 in		400 VAC	3.66 mm	0.144 in	Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount	Receptacle	4.1 A	Tin	Beryllium Copper	Square	2		10 çin	0.25 çm	Female Socket	0.1 in	2.54 mm			16

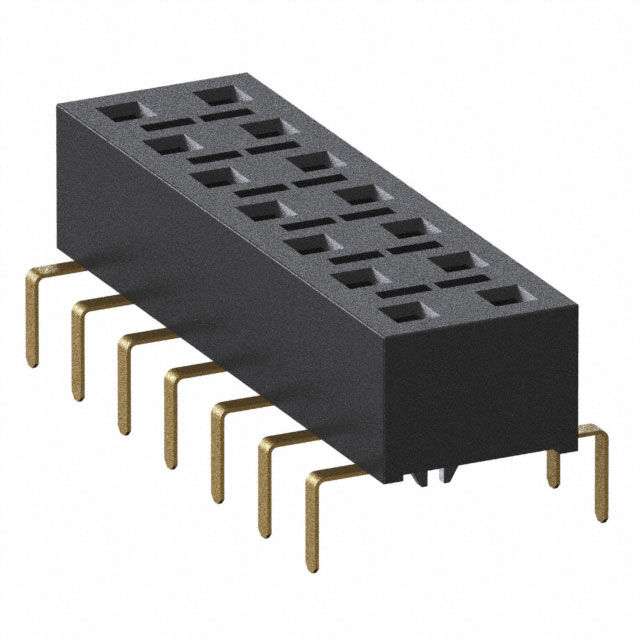

Samtec Inc. HLE-107-02-G-DV-PE-LC	-55 °C	125 °C	Black	All	Gold	Solder	2.54 mm	0.1 in	14	400 VAC	3.5 mm	0.138 in	Liquid Crystal Polymer (LCP)	Push-Pull	Through Hole	Pass Through Receptacle	4.1 A	Gold	Beryllium Copper	Square	2		10 çin	0.25 çm	Female Socket	0.1 in	2.54 mm	3 µin	0.076 µm		0.09 "	2.29 mm
Samtec Inc. HLE-113-02-L-DV-PE-LC	-55 °C	125 °C	Black	All	Gold	Solder	2.54 mm	0.1 in	26	400 VAC	3.5 mm	0.138 in	Liquid Crystal Polymer (LCP)	Push-Pull	Through Hole	Pass Through Receptacle	4.1 A	Tin	Beryllium Copper	Square	2		10 çin	0.25 çm	Female Socket	0.1 in	2.54 mm				0.09 "	2.29 mm
Samtec Inc. HLE-107-02-G-DV-LC-P-TR	-55 °C	125 °C	Black	All	Gold	Solder	2.54 mm	0.1 in	14	400 VAC	3.66 mm	0.144 in	Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount	Receptacle	4.1 A	Gold	Beryllium Copper	Square	2	Board Lock Pick and Place	20 µin	0.51 µm	Female Socket	0.1 in	2.54 mm	3 µin	0.076 µm
Samtec Inc. HLE-104-02-F-DV-PE-LC	-55 °C	125 °C	Black	All	Gold	Solder	2.54 mm	0.1 in	8	400 VAC	3.5 mm	0.138 in	Liquid Crystal Polymer (LCP)	Push-Pull	Through Hole	Pass Through Receptacle	4.1 A	Tin	Beryllium Copper	Square	2		3 µin	0.076 µm	Female Socket	0.1 in	2.54 mm				0.09 "	2.29 mm
Samtec Inc. HLE-125-02-L-DV-LC-P	-55 °C	125 °C	Black	All	Gold	Solder	2.54 mm	0.1 in	50	400 VAC	3.66 mm	0.144 in	Liquid Crystal Polymer (LCP)	Push-Pull	Surface Mount	Receptacle	4.1 A	Tin	Beryllium Copper	Square	2	Board Lock Pick and Place	10 çin	0.25 çm	Female Socket	0.1 in	2.54 mm
Samtec Inc. HLE-104-02-S-DV-PE	-55 °C	125 °C	Black	All	Gold	Solder	2.54 mm	0.1 in	8	400 VAC	3.5 mm	0.138 in	Liquid Crystal Polymer (LCP)	Push-Pull	Through Hole	Pass Through Receptacle	4.1 A	Tin	Beryllium Copper	Square	2		30 Áin	0.76 Ám	Female Socket	0.1 in	2.54 mm				0.09 "	2.29 mm
