M80-843 Series

Catalog

4 POS. MALE SIL HORIZONTAL THROUGHBOARD CONN. NO LATCHES ROHS COMPLIANT: YES

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Connector Type	Contact Length - Post	Contact Length - Post	Voltage Rating	Number of Positions	Mounting Type	Style	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Number of Positions Loaded	Number of Rows	Insulation Height	Insulation Height	Insulation Material	Insulation Color	Contact Shape	Shrouding	Material Flammability Rating	Contact Material	Features	Current Rating (Amps)	Fastening Type	Contact Type	Contact Finish - Mating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]

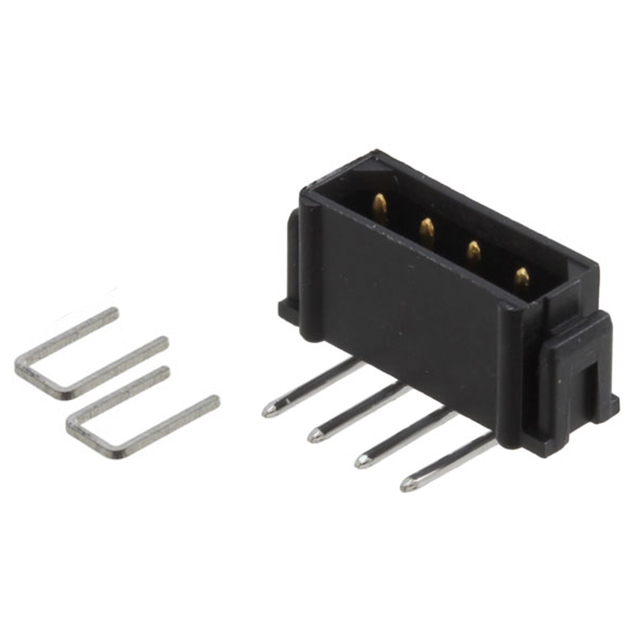

Harwin Inc. M80-8430442	118.1 µin	3 µm	-55 C	125 °C	Solder	Header	0.118 in	3 mm	120 VDC	4	Right Angle Through Hole	Board to Board Cable	0.079 "	2 mm	Tin	All	1	0.156 in	3.96 mm	Polyphenylene Sulfide (PPS) Glass Filled	Black	Circular	Shrouded - 4 Wall	UL94 V-0	Phosphor Bronze	Strain Relief Clips	2.2 A	Latch Holder	Male Pin	Gold	29.5 µin	0.75 µm
Harwin Inc. M80-8430245			-55 C	125 °C	Solder	Header	0.118 in	3 mm	120 VDC	2	Right Angle Through Hole	Board to Board Cable	0.079 "	2 mm	Gold	All	1	0.156 in	3.96 mm	Polyphenylene Sulfide (PPS) Glass Filled	Black	Circular	Shrouded - 4 Wall	UL94 V-0	Phosphor Bronze	Strain Relief Clips	2.2 A	Latch Holder	Male Pin	Gold	29.5 µin	0.75 µm
Harwin Inc. M80-8430445			-55 C	125 °C	Solder	Header	0.118 in	3 mm	120 VDC	4	Right Angle Through Hole	Board to Board Cable	0.079 "	2 mm	Gold	All	1	0.156 in	3.96 mm	Polyphenylene Sulfide (PPS) Glass Filled	Black	Circular	Shrouded - 4 Wall	UL94 V-0	Phosphor Bronze	Strain Relief Clips	2.2 A	Latch Holder	Male Pin	Gold	29.5 µin	0.75 µm

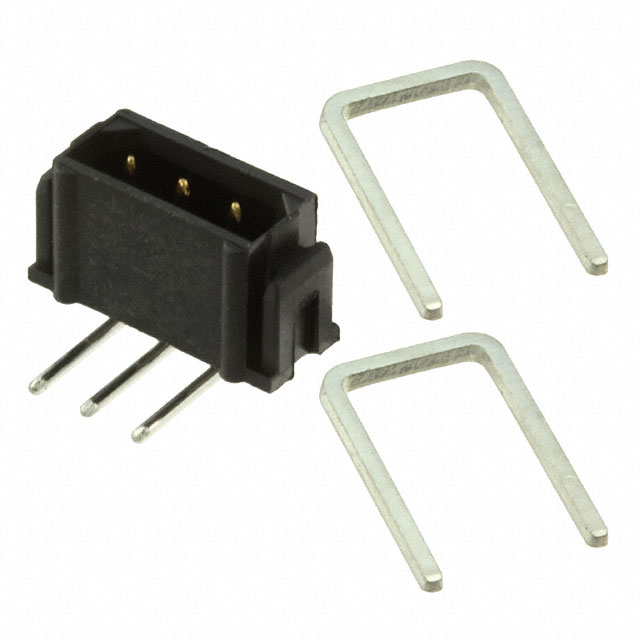

Harwin Inc. M80-8430342	118.1 µin	3 µm	-55 C	125 °C	Solder	Header	0.118 in	3 mm	120 VDC		Right Angle Through Hole	Board to Board Cable	0.079 "	2 mm	Tin	All	1	0.156 in	3.96 mm	Polyphenylene Sulfide (PPS) Glass Filled	Black	Circular	Shrouded - 4 Wall	UL94 V-0	Phosphor Bronze	Strain Relief Clips	2.2 A	Latch Holder	Male Pin	Gold	29.5 µin	0.75 µm

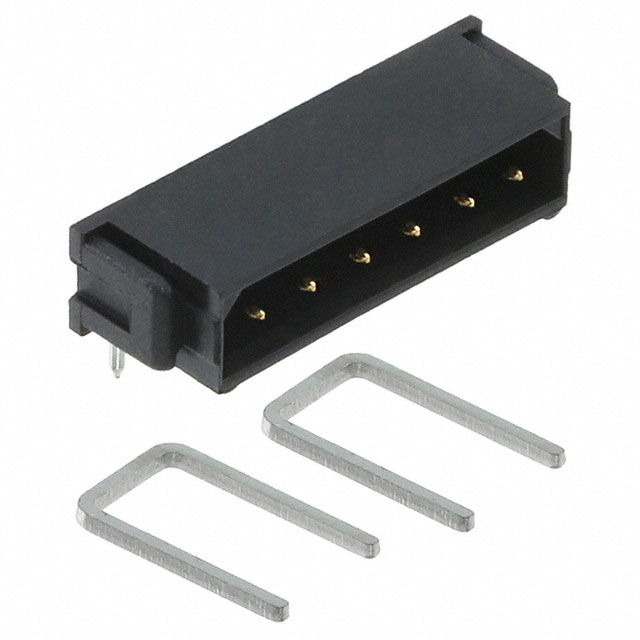

Harwin Inc. M80-8430642	118.1 µin	3 µm	-55 C	125 °C	Solder	Header	0.118 in	3 mm	120 VDC	6	Right Angle Through Hole	Board to Board Cable	0.079 "	2 mm	Tin	All	1	0.156 in	3.96 mm	Polyphenylene Sulfide (PPS) Glass Filled	Black	Circular	Shrouded - 4 Wall	UL94 V-0	Phosphor Bronze	Strain Relief Clips	2.2 A	Latch Holder	Male Pin	Gold	29.5 µin	0.75 µm
