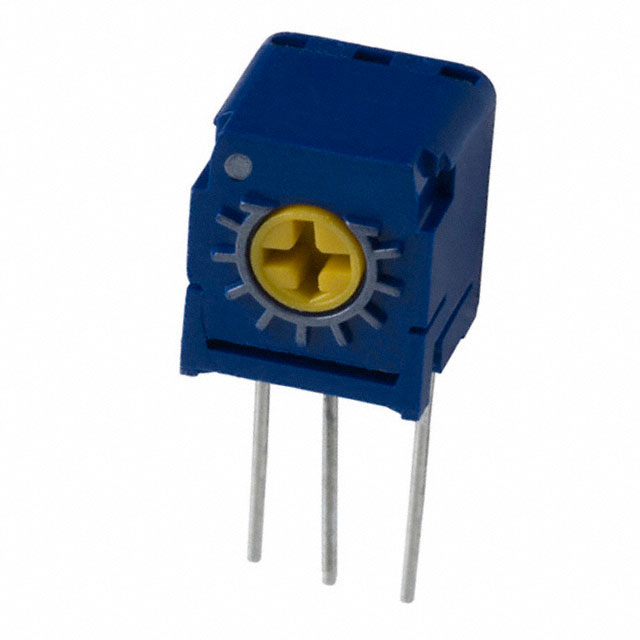

CT6EN Series

Manufacturer: Nidec Components Corporation

Catalog

TRIMMER 10K OHM 0.5W PC PIN SIDE

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Termination Style	Power (Watts)	Power (Watts)	Adjustment Type	Mounting Type	Temperature Coefficient	Number of Turns	Resistance	Tolerance	Resistive Material
Nidec Components Corporation CT-6EN103	0.323 in	7 mm	8.2 mm	0.276 in	PC Pins	0.5 W	0.5 W	Side Adjustment	Through Hole	100 ppm/°C	1	10000 Ohms	10 %	Cermet
Nidec Components Corporation CT-6EN503	0.323 in	7 mm	8.2 mm	0.276 in	PC Pins	0.5 W	0.5 W	Side Adjustment	Through Hole	100 ppm/°C	1	50000 Ohms	10 %	Cermet
Nidec Components Corporation CT-6EN205	0.323 in	7 mm	8.2 mm	0.276 in	PC Pins	0.5 W	0.5 W	Side Adjustment	Through Hole	100 ppm/°C	1	2 MOhms	10 %	Cermet
Nidec Components Corporation CT-6EN204	0.323 in	7 mm	8.2 mm	0.276 in	PC Pins	0.5 W	0.5 W	Side Adjustment	Through Hole	100 ppm/°C	1	200000 Ohms	10 %	Cermet
Nidec Components Corporation CT-6EN105	0.323 in	7 mm	8.2 mm	0.276 in	PC Pins	0.5 W	0.5 W	Side Adjustment	Through Hole	100 ppm/°C	1	1 MOhms	10 %	Cermet
Nidec Components Corporation CT-6EN202	0.323 in	7 mm	8.2 mm	0.276 in	PC Pins	0.5 W	0.5 W	Side Adjustment	Through Hole	100 ppm/°C	1	2 kOhms	10 %	Cermet
Nidec Components Corporation CT-6EN102	0.323 in	7 mm	8.2 mm	0.276 in	PC Pins	0.5 W	0.5 W	Side Adjustment	Through Hole	100 ppm/°C	1	1000 Ohms	10 %	Cermet
Nidec Components Corporation CT-6EN101	0.323 in	7 mm	8.2 mm	0.276 in	PC Pins	0.5 W	0.5 W	Side Adjustment	Through Hole	100 ppm/°C	1	100 Ohms	10 %	Cermet
Nidec Components Corporation CT-6EN201	0.323 in	7 mm	8.2 mm	0.276 in	PC Pins	0.5 W	0.5 W	Side Adjustment	Through Hole	100 ppm/°C	1	200 Ohms	10 %	Cermet
Nidec Components Corporation CT-6EN501	0.323 in	7 mm	8.2 mm	0.276 in	PC Pins	0.5 W	0.5 W	Side Adjustment	Through Hole	100 ppm/°C	1	0.5 kOhms	10 %	Cermet
