MLF Series

Catalog

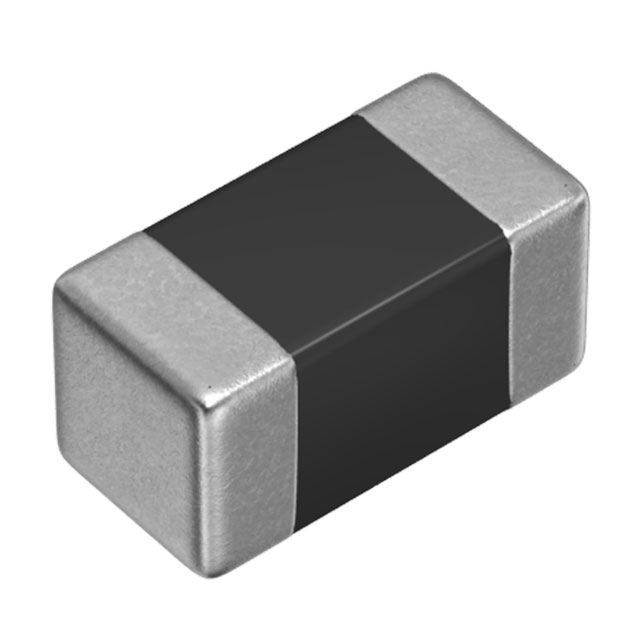

RF INDUCTORS - SMD 1MM X 0.5MM X 0.5MM, -55 TO +125 DEGC, 40MA, 1?H, 640MOHM

Part	DC Resistance (DCR) [Max]	Supplier Device Package	Inductance Frequency - Test	Type	Q @ Freq	Inductance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Frequency - Self Resonant	Tolerance	Package / Case	Current Rating (Amps)	Material - Core	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Shielding	DC Resistance (DCR)	Q @ Freq [custom]	Q @ Freq [custom]	Size / Dimension [y]	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ratings
TDK Corporation MLF1005G1R0KT000	640 mOhm	0402 (1005 Metric)	10 MHz	Multilayer	30	1 µH	0.02 in	0.5 mm	0.039 "	1 mm	120 MHz	10 %	0402 (1005 Metric)	40 mA	Ferrite	85 °C	-40 C	0.55 mm	0.022 in	Surface Mount	Shielded
TDK Corporation MLF2012DR39JT000		0805 (2012 Metric)	25 MHz	Multilayer		390 nH	0.049 "	1.25 mm	0.079 in	2 mm	180 MHz	5 %	0805	0.2 A	Ferrite	125 °C	-55 C			Surface Mount	Shielded	450 mOhm	25 MHz	25
TDK Corporation MLF1608DR18KTA00	500 mOhm	0603 (1608 Metric)	25 MHz	Multilayer	15 25 MHz	180 nH	0.031 in		0.063 "	1.6 mm	320 MHz	10 %	0603	150 mA	Ferrite	85 °C	-40 C			Surface Mount	Shielded				0.8 mm	1608 Metric	0.95 mm	0.037 in
TDK Corporation MLF1608C270MTD25	1.8 Ohm	0603 (1608 Metric)	1 MHz	Multilayer	1 MHz 20	27 µH	0.031 in		0.063 "	1.6 mm	15 MHz	20 %	0603	2 mA	Ferrite	85 °C	-40 C			Surface Mount	Shielded				0.8 mm	1608 Metric	0.95 mm	0.037 in	AEC-Q200
TDK Corporation MLF1005VR15JTD25	630 mOhm	0402 (1005 Metric)	25 MHz	Multilayer	15 25 MHz	150 nH	0.02 in	0.5 mm	0.039 "	1 mm	350 MHz	5 %	0402 (1005 Metric)	0.18 A	Ferrite	125 °C	-55 C	0.55 mm	0.022 in	Surface Mount	Shielded								AEC-Q200
TDK Corporation MLF1608DR68KTD25	1.25 Ohm	0603 (1608 Metric)	25 MHz	Multilayer	15 25 MHz	0.68 µH	0.031 in		0.063 "	1.6 mm	150 MHz	10 %	0603	70 mA	Ferrite	125 °C	-55 C			Surface Mount	Shielded				0.8 mm	1608 Metric	0.95 mm	0.037 in	AEC-Q200
TDK Corporation MLF2012A4R7MT000		0805 (2012 Metric)	10 MHz	Multilayer	10 MHz 45	4.7 ÁH	0.049 "	1.25 mm	0.079 in	2 mm	50 MHz	20 %	0805	30 mA	Ferrite	125 °C	-55 C			Surface Mount	Shielded	700 mOhm					1.45 mm	0.057 in
TDK Corporation MLF2012E100JT000	800 mOhm	0805 (2012 Metric)	2 MHz	Multilayer	2 MHz 50	10 µH	0.049 "	1.25 mm	0.079 in	2 mm	30 MHz	5 %	0805	0.015 A	Ferrite	125 °C	-55 C			Surface Mount	Shielded						1.45 mm	0.057 in
TDK Corporation MLF1608A3R3MTD25	1.3 Ohm	0603 (1608 Metric)	10 MHz	Multilayer	10 MHz 35	3.3 µH	0.031 in		0.063 "	1.6 mm		20 %	0603	30 mA	Ferrite	125 °C	-55 C			Surface Mount	Shielded				0.8 mm	1608 Metric	0.95 mm	0.037 in	AEC-Q200
TDK Corporation MLF2012A1R5JT000	400 mOhm	0805 (2012 Metric)	10 MHz	Multilayer	10 MHz 45	1.5 µH	0.049 "	1.25 mm	0.079 in	2 mm	100 MHz	5 %	0805	80 mA	Ferrite	125 °C	-55 C			Surface Mount	Shielded
