PCS02 Series
Manufacturer: Bourns Inc.
Beta
⌘K

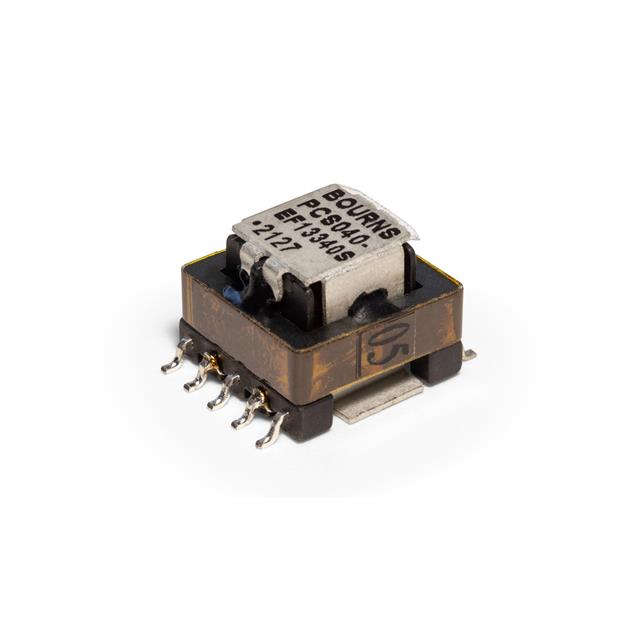

CURRENT TRANSFORMERS CURRENT SENSE TRANSFORMER, 20A, EE5, 3000UH
| Part | Height - Seated (Max) | Height - Seated (Max) [Max] [z] | Turns Ratio - Primary:Secondary [custom] | Turns Ratio - Primary:Secondary [custom] | DC Resistance (DCR) [Max] | DC Resistance (DCR) | Type | Current Ratio | Inductance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | ET (Volt-Time) | Current Rating (Amps) | Termination Style | Mounting Type | Frequency Range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 5.31 mm | 0.209 in | 125 | 1 | 7 Ohm | 7 mOhm | Invasive | 125:1 | 3 H | 6.22 mm | 0.235 in | 0.245 " | 5.97 mm | 67.5 VµS | 20 A | Gull Wing | Surface Mount | 1 MHz |
