IGD515 Series

Catalog

IC GATE DRVR HI/LOW SIDE MODULE

Part	Gate Type	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Supplier Device Package	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Logic Voltage - VIL, VIH	Package / Case	Channel Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Number of Drivers	Operating Temperature [Max]	Operating Temperature [Min]	Driven Configuration
POWER INTEGRATIONS IGD515EI-34	IGBT MOSFET (N-Channel P-Channel) N-Channel P-Channel MOSFET	15 A	15 A	Module	40 ns	40 ns	0.9 V 3.8 V	36-DIP Module 24 Leads	Single	16 V	12 VDC	Through Hole	1	85 °C	-40 C	High-Side or Low-Side

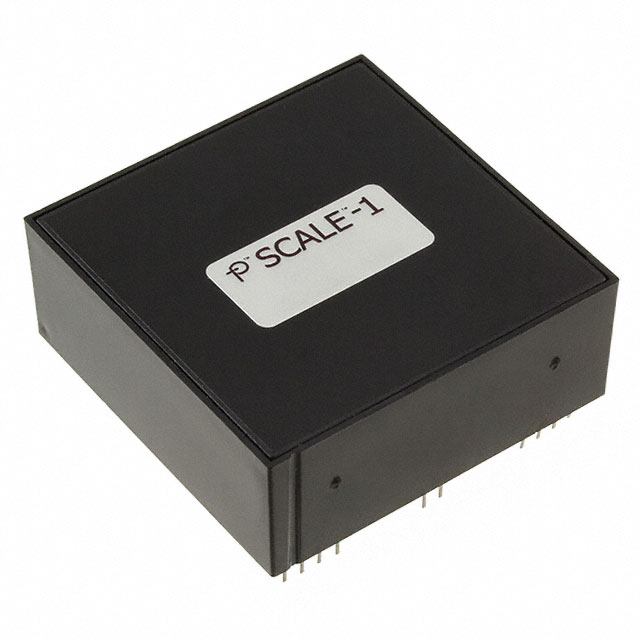

POWER INTEGRATIONS IGD515EI	IGBT MOSFET (N-Channel P-Channel) N-Channel P-Channel MOSFET	15 A	15 A	Module	40 ns	40 ns	0.9 V 3.8 V	Module	Single	16 V	12 VDC	Through Hole	1	85 C	-40 ¯C	High-Side or Low-Side
