163A168 Series
Manufacturer: Amphenol CONEC
Beta
⌘K
CONN D-SUB HD PLUG 15P VERT SLDR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Color | Termination | Voltage Rating | Contact Finish | Connector Type | Mounting Type | Current Rating (Amps) | Contact Type | Contact Material | Number of Positions | Flange Feature [custom] | Flange Feature [custom] | Dielectric Material | Material Flammability Rating | Connector Style | Contact Finish Thickness | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Features | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol CONEC | -55 °C | 125 °C | 3 | Black | Solder | 60 VDC | Gold | Male Pins Plug | Through Hole | 3 A | Signal | Copper Alloy | 15 | 4-40 | M3 | Polybutylene Terephthalate (PBT) Glass Filled | UL94 V-0 | D-Sub High Density | Flash | DE E | 1 | High Density | Grounding Indents | |

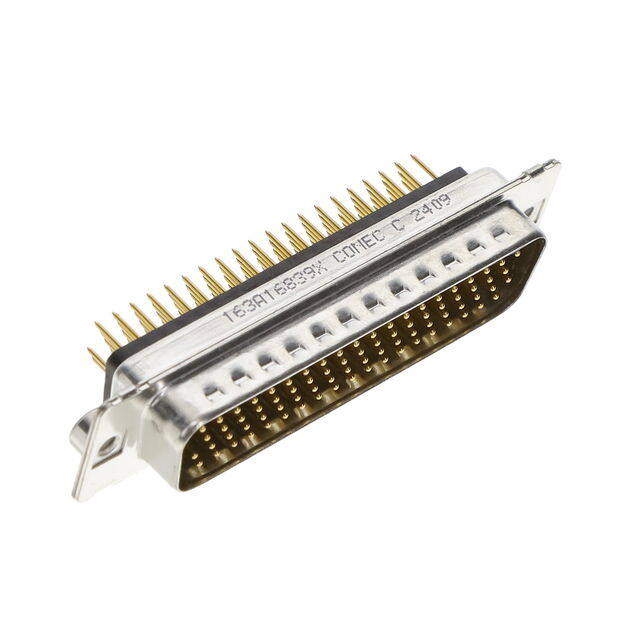

 Amphenol CONEC | -55 °C | 125 °C | Black | Solder | 60 VDC | Gold | Male Pins Plug | Through Hole | 3 A | Signal | Copper Alloy | 78 | Polybutylene Terephthalate (PBT) Glass Filled | UL94 V-0 | D-Sub High Density | Flash | Grounding Indents | 4-40 Board Side |
