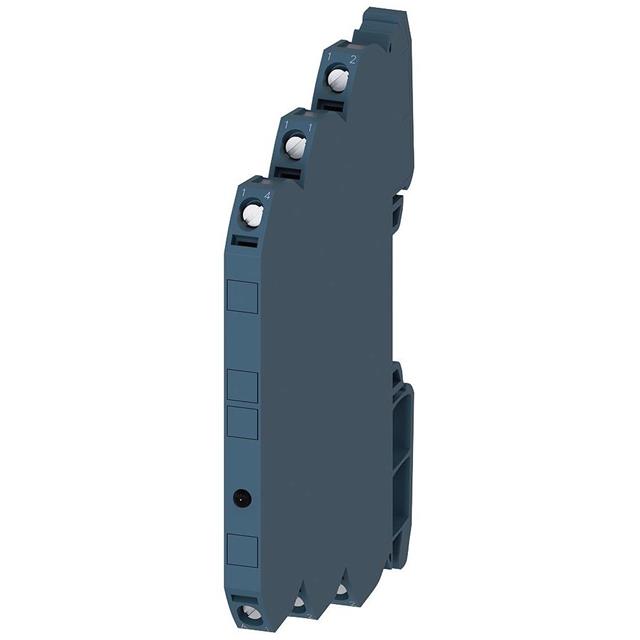

3RQ303 Series
Manufacturer: Siemens
Beta
⌘K
RELAY GEN PURPOSE SPDT 3A 24V
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Contact Material | Coil Voltage | Relay Type | Operate Time | Approval Agency | Switching Voltage [Max] | Coil Type | Release Time | Mounting Type | Contact Rating (Current) | Load - Max Switching | Contact Form | Features | Coil Voltage | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Siemens | -25 °C | 60 °C | Spring Terminal | Silver Tin Oxide (AgSnO) | 24 VAC | General Purpose | 12 ms | CCC CSA EAC UL | 250 VAC | Non Latching | 14 ms | DIN Rail | 3 A | 750 VA | SPDT (1 Form C) | Lighted Indicator | ||
 Siemens | -25 °C | 60 °C | Screw Terminal | Silver Tin Oxide (AgSnO) | 24 VAC | General Purpose | 12 ms | CCC CSA EAC UL | 250 VAC | Non Latching | 14 ms | DIN Rail | 3 A | 750 VA | SPDT (1 Form C) | Lighted Indicator | ||
Siemens | -25 °C | 60 °C | Screw Terminal | Silver Tin Oxide (AgSnO) | 115 VAC | General Purpose | 8 ms | CCC CSA EAC UL | 250 VAC | Non Latching | 17 ms | DIN Rail | 3 A | 750 VA | SPDT (1 Form C) | Lighted Indicator | 115 VDC | |
Siemens | -25 °C | 60 °C | Screw Terminal | Silver Tin Oxide (AgSnO) | 24 VAC | General Purpose | 12 ms | CCC CSA EAC UL | 250 VAC | Non Latching | 14 ms | DIN Rail | 3 A | 750 VA | SPDT (1 Form C) | Lighted Indicator | ||
Siemens | -25 °C | 60 °C | Spring Terminal | Silver Tin Oxide (AgSnO) | 24 VAC | General Purpose | 12 ms | CCC CSA EAC UL | 250 VAC | Non Latching | 14 ms | DIN Rail | 3 A | 750 VA | SPDT (1 Form C) | Lighted Indicator | ||
Siemens | -25 °C | 60 °C | Screw Terminal | Silver Tin Oxide (AgSnO) | 115 VAC | General Purpose | 12 ms | CCC CSA EAC UL | 250 VAC | Non Latching | 12 ms | DIN Rail | 3 A | 750 VA | SPDT (1 Form C) | Lighted Indicator | 115 VDC | |
Siemens | -25 °C | 60 °C | Spring Terminal | Silver Tin Oxide (AgSnO) | 115 VAC | General Purpose | 8 ms | CCC CSA EAC UL | 250 VAC | Non Latching | 17 ms | DIN Rail | 3 A | 750 VA | SPDT (1 Form C) | Lighted Indicator | 115 VDC | |
Siemens | -25 °C | 60 °C | Spring Terminal | Silver Tin Oxide (AgSnO) | 115 VAC | General Purpose | 8 ms | CCC CSA EAC UL | 250 VAC | Non Latching | 17 ms | DIN Rail | 3 A | 750 VA | SPDT (1 Form C) | Lighted Indicator | 115 VDC | |
 Siemens | -25 °C | 60 °C | Screw Terminal | Silver Tin Oxide (AgSnO) | General Purpose | 9 ms | CCC CSA EAC UL | 250 VAC | Non Latching | 19 ms | DIN Rail | 3 A | 750 VA | SPDT (1 Form C) | Lighted Indicator | 230 VAC | 230 VDC | |
Siemens | -25 °C | 60 °C | Screw Terminal | Silver Tin Oxide (AgSnO) | General Purpose | 9 ms | CCC CSA EAC UL | 250 VAC | Non Latching | 19 ms | DIN Rail | 3 A | 750 VA | SPDT (1 Form C) | Lighted Indicator | 230 VAC | 230 VDC |
