8501XD Series

Catalog

NEMA CONTROL RELAY, TYPE X, MACH

Part	Mounting Type	Coil Voltage	Relay Type	Coil Type	Operating Temperature [Max]	Operating Temperature [Min]	Release Time	Contact Rating (Current)	Load - Max Switching	Termination Style	Operate Time	Contact Form	Switching Voltage [Max]	Approval Agency	Must Operate Voltage	Coil Voltage [Max]	Coil Voltage [Min]	Load - Max Switching [Max]
SCHNEIDER ELECTRIC 8501XDO80V56	Chassis Mount	48 VDC	General Purpose	Non Latching	71 °C	-40 C	21 ms	10 A	6000 VA	Screw Terminal	37 ms	8PST-NO (8 Form A)	600 VAC	CE CSA UL
SCHNEIDER ELECTRIC 8501XDO60V53	Chassis Mount	24 VDC	General Purpose	Non Latching	71 °C	-40 C	21 ms	10 A	6000 VA	Screw Terminal	37 ms	6PST-NO (6 Form A)	600 VAC	CE CSA UL	19.2 VDC

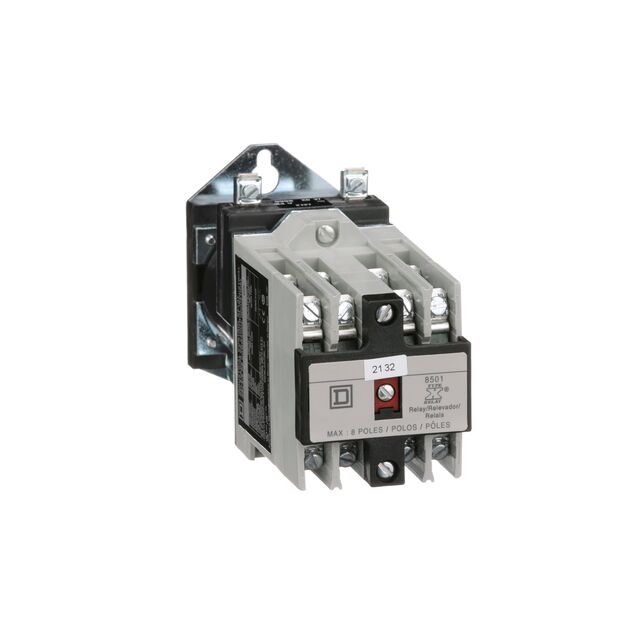

SCHNEIDER ELECTRIC 8501XDO80V62	Chassis Mount		General Purpose	Non Latching	71 °C	-40 C	21 ms	10 A	6000 VA	Screw Terminal	37 ms	8PST-NO (8 Form A)	600 VAC	CSA UL		125 VDC	115 VDC

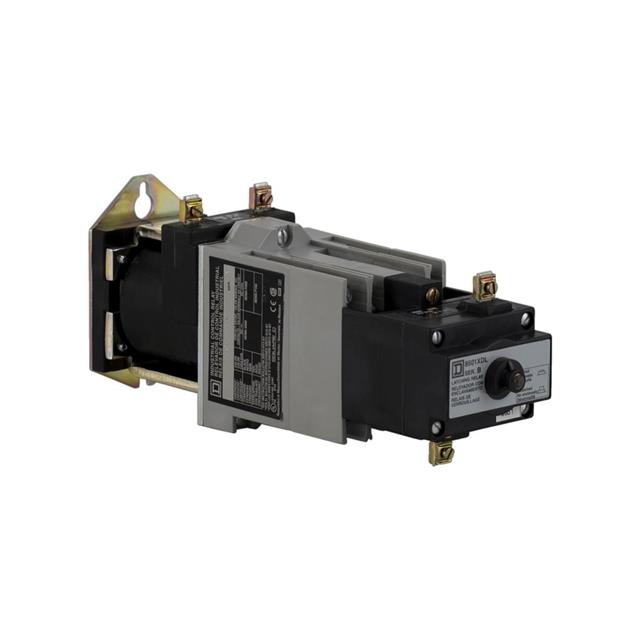

SCHNEIDER ELECTRIC 8501XDO80XDLV53	Chassis Mount	24 VDC	General Purpose	Latching Single Coil	71 °C	-40 C	21 ms	10 A		Screw Terminal	37 ms	8PST-NO (8 Form A)	250 VDC	CE CSA UL				2500 VA
SCHNEIDER ELECTRIC 8501XDO40V62	Chassis Mount		General Purpose	Non Latching	71 °C	-40 C	21 ms	10 A	6000 VA	Screw Terminal	37 ms	4PST-NO (4 Form A)	600 VAC	CSA UL		125 VDC	115 VDC
SCHNEIDER ELECTRIC 8501XDO60V62	Chassis Mount		General Purpose	Non Latching	71 °C	-40 C	21 ms	10 A	6000 VA	Screw Terminal	37 ms	6PST-NO (6 Form A)	600 VAC	CSA UL		125 VDC	115 VDC
