ANT-2.4-FPC-LH Series

Catalog

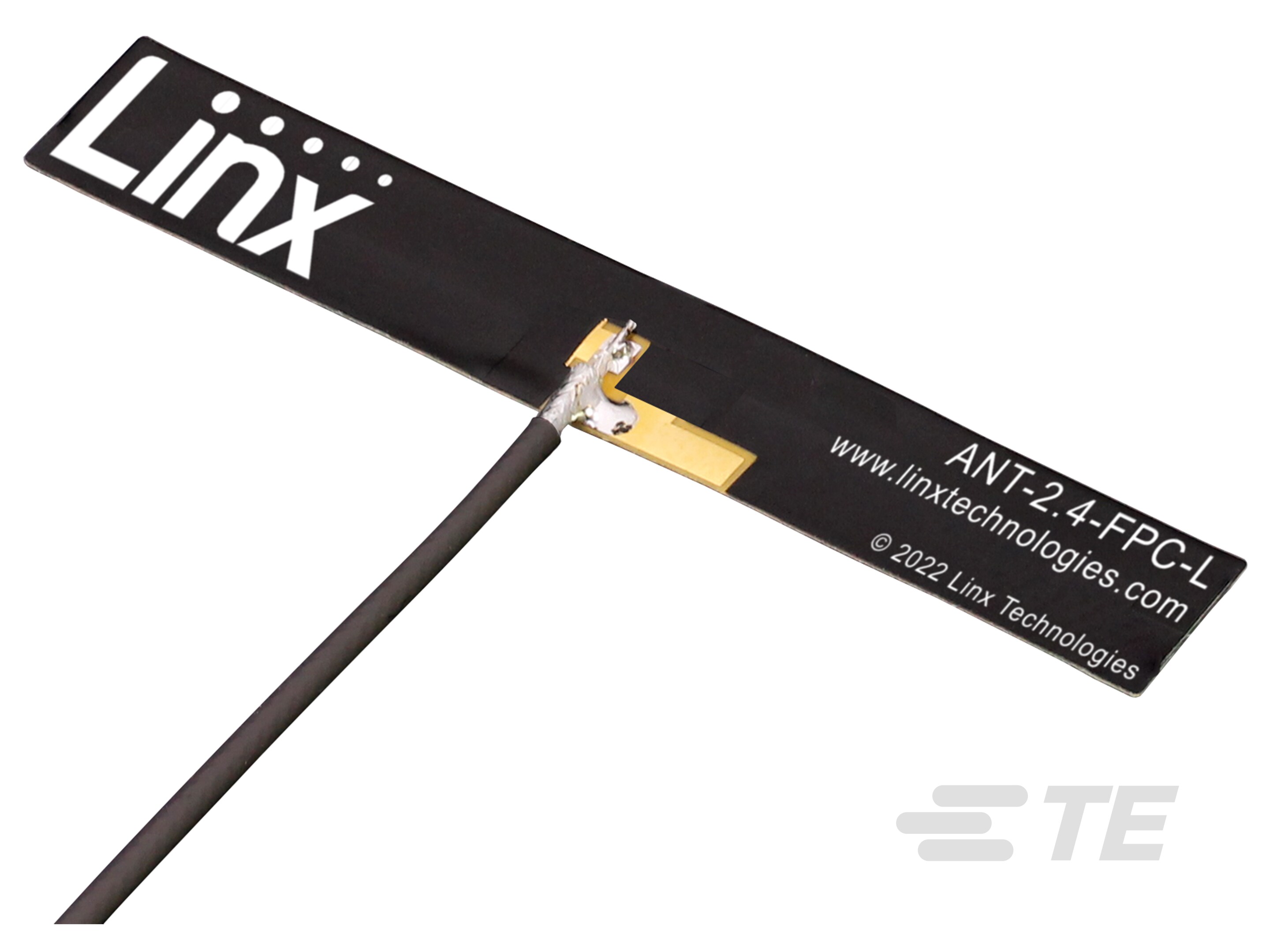

ANTENNA 2.4 FPC LH 45X7 200 UFL

Part	Termination	Termination	Applications	VSWR	Frequency Range [Max]	Frequency Range [Min]	Height (Max) [z]	Height (Max) [z]	Antenna Type	Features	Number of Bands	Power - Max [Max]	Gain	Mounting Type	Features
TE Connectivity AMP Connectors ANT-2.4-FPC-LH50UF	I-PEX MHF1 IPEX MHF1	U.FL	Bluetooth ISM Wi-Fi Zigbee™	1.4	2.5 GHz	2.4 GHz	0.004 in	0.1 mm	PCB Trace	Cable - 50mm	1	2 W	6.1 dBi	Adhesive
TE Connectivity AMP Connectors ANT-2.4-FPC-LH200M4	MHF4		Bluetooth ISM Wi-Fi Zigbee™	1.4	2.5 GHz	2.4 GHz	0.004 in	0.1 mm	PCB Trace	Cable - 200mm	1	2 W	6.1 dBi	Adhesive
TE Connectivity AMP Connectors ANT-2.4-FPC-LH100UF	I-PEX MHF1 IPEX MHF1	U.FL	Bluetooth ISM Wi-Fi Zigbee™	1.4	2.5 GHz	2.4 GHz	0.004 in	0.1 mm	PCB Trace	Cable	1	2 W	6.1 dBi	Adhesive	100 mm
TE Connectivity AMP Connectors ANT-2.4-FPC-LH100MX			Bluetooth ISM Wi-Fi Zigbee™	1.4	2.5 GHz	2.4 GHz	0.004 in	0.1 mm	PCB Trace	Cable	1	2 W	6.1 dBi	Adhesive	100 mm
TE Connectivity AMP Connectors ANT-2.4-FPC-LH50M4	MHF4		Bluetooth ISM Wi-Fi Zigbee™	1.4	2.5 GHz	2.4 GHz	0.004 in	0.1 mm	PCB Trace	Cable - 50mm	1	2 W	6.1 dBi	Adhesive
