SM Series

Catalog

SPEAKERS & TRANSDUCERS DYNAMIC MICRO SPEAKER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Material - Cone	Power - Max [Max]	Power - Rated	Size / Dimension [diameter]	Size / Dimension	Shape	Type	Port Location	Termination	Efficiency - dBA	Impedance	Efficiency - Type	Efficiency - Testing	Height - Seated (Max)	Height - Seated (Max)	Size / Dimension [diameter]	Frequency - Self Resonant	Frequency Range [Min]	Frequency Range [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]

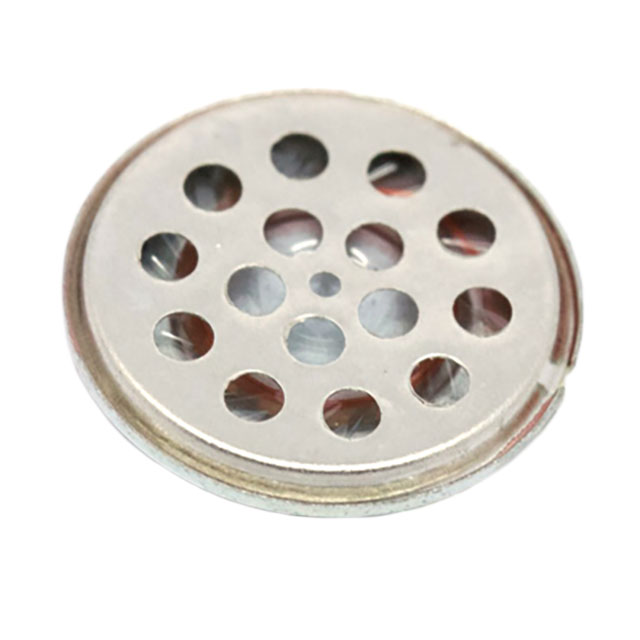

DB Unlimited SM150908-2	-30 ░C	70 °C	Magnetic	Polyester Polyethylene Terephthalate (PET)	800 mW	500 mW	0.591 in	15 mm	Round	General Purpose	Top	Solder Pads	85 dBA	8 Ohms	Sound Pressure Level (SPL)	10 cm
DB Unlimited SM280708-1	-20 ░C	55 °C	Magnetic	Polyester Polyethylene Terephthalate (PET)	1.5 W	1 W	1.102 in		Round	General Purpose	Top	Solder Pads	103 dBA	8 Ohms	Sound Pressure Level (SPL)	10 cm	0.193 in	4.9 mm	28 mm	700 Hz	700 Hz	10 kHz

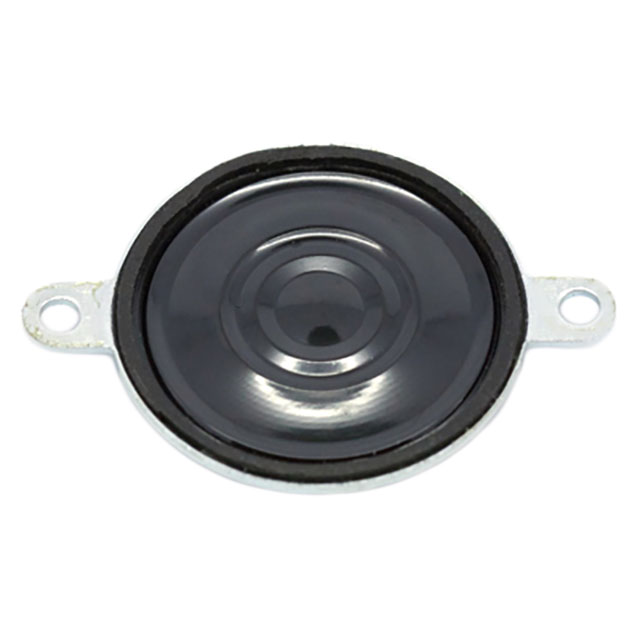

DB Unlimited SM260608-1	-30 ░C	60 °C	Magnetic	Polyester Polyethylene Terephthalate (PET)	0.6 W	500 mW	1.024 in		Round	General Purpose	Top	Solder Pads		8 Ohms	Sound Pressure Level (SPL)	10 cm			26 mm		660 Hz	5 kHz	4.5 mm	0.177 in

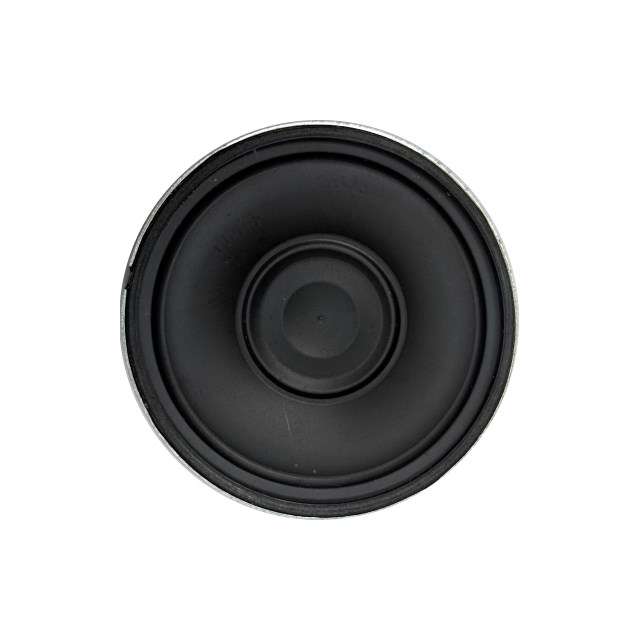

DB Unlimited SM360532-3	-40 C	85 °C	Magnetic	Polyester Polyethylene Terephthalate (PET)	1 W	500 mW	1.417 in		Round	General Purpose	Top	Solder Pads	97 dBA	32 Ohms	Sound Pressure Level (SPL)	10 cm			36 mm	550 Hz	550 Hz	6 kHz	4.6 mm	0.181 in
