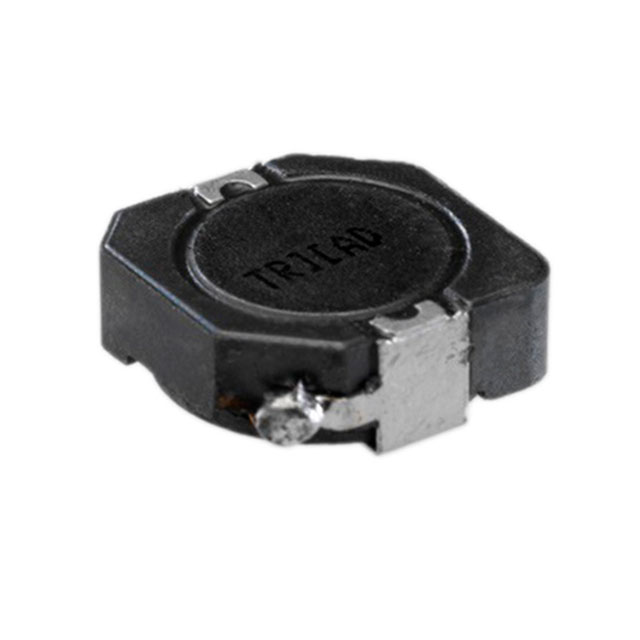

AX104R Series

Catalog

POWER INDUCTORS - SMD SMD INDUCTOR 15.0 H@3.6A

Part	Type	Mounting Type	DC Resistance (DCR) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Tolerance	Package / Case	Current Rating (Amps)	Height - Seated (Max)	Height - Seated (Max) [Max]	Shielding	Inductance Frequency - Test	Supplier Device Package	Material - Core
Triad Magnetics AX104R-150	Drum Core Wirewound	Surface Mount	50 mOhm	0.406 in	0.409 in	10.4 mm	10.3 mm	85 °C	-40 C	15 µH	30 %	Nonstandard	3.6 A	4 mm	0.157 in	Shielded	100 kHz	SMD	Ferrite
Triad Magnetics AX104R-330	Drum Core Wirewound	Surface Mount	93 mOhm	0.406 in	0.409 in	10.4 mm	10.3 mm	85 °C	-40 C	33 µH	30 %	Nonstandard	2.3 A	4 mm	0.157 in	Shielded	100 kHz	SMD	Ferrite
Triad Magnetics AX104R-101	Drum Core Wirewound	Surface Mount	304 mOhm	0.406 in	0.409 in	10.4 mm	10.3 mm	85 °C	-40 C	100 µH	30 %	Nonstandard	1.35 A	4 mm	0.157 in	Shielded	100 kHz	SMD	Ferrite
