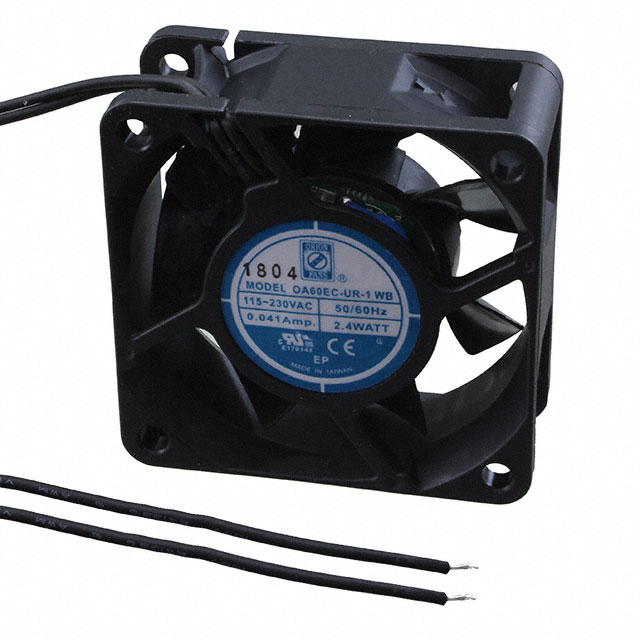

OA60EC Series
Manufacturer: ORION FANS
Beta
⌘K
FAN EC 60X25MM 95-264VAC IP68 AT
| Part | Material - Blade | Lifetime @ Temp. | Current Rating (Amps) | Weight [custom] | Weight [custom] | Termination | RPM | Air Flow | Air Flow | Power (Watts) | Size / Dimension [z] | Size / Dimension [x] | Noise | Static Pressure | Static Pressure | Fan Type | Features | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Width [y] | Voltage - Rated [Min] | Voltage - Rated [Max] | Ingress Protection | Bearing Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | Polybutylene Terephthalate (PBT) | 40 °C 50000 Hrs | 50 mA | 0.133 lb | 60.33 g | 2 Wire Leads | 3950 RPM | 19.5 CFM | 0.546 m³/min | 2.4 W | 60 mm | 60 mm | 31 dB(A) | 42.3 Pa | 0.17 in H2O | Tubeaxial | Electronic Commutation (EC) Thermal Overload Protector (TOP) | ATEX CE cURus UR | -20 ░C | 70 °C | 25 mm | 95 VAC | 264 VAC | IP68 - Dust Tight Waterproof | Ball |
ORION FANS | Polybutylene Terephthalate (PBT) | 40 °C 50000 Hrs | 50 mA | 0.133 lb | 60.33 g | 2 Wire Leads | 3950 RPM | 19.5 CFM | 0.546 m³/min | 2.4 W | 60 mm | 60 mm | 31 dB(A) | 42.3 Pa | 0.17 in H2O | Tubeaxial | Electronic Commutation (EC) Thermal Overload Protector (TOP) | CE cURus TUV UR | -20 ░C | 70 °C | 25 mm | 95 VAC | 264 VAC | Ball |
