M5144 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
TRANSDUCER 1-5VDC 25PSI
| Part | Port Style | Output Type | Operating Pressure | Operating Pressure | Port Size | Port Size | Port Size | Applications | Package / Case | Output [Max] | Output [Min] | Accuracy | Maximum Pressure | Maximum Pressure | Voltage - Supply [Max] | Voltage - Supply [Min] | Features | Operating Temperature [Max] | Operating Temperature [Min] | Pressure Type | Maximum Pressure [Max] | Maximum Pressure [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Threaded | Analog Voltage | 25 PSI | 172.37 kPa | 0.4375 in | Male | 11.11 mm | Industrial Automation | Cylinder | 5 V | 1 V | 1 % | 344.74 kPa | 50 PSI | 30 VDC | 8 V | Temperature Compensated | 125 °C | -40 C | Vented Gauge | ||

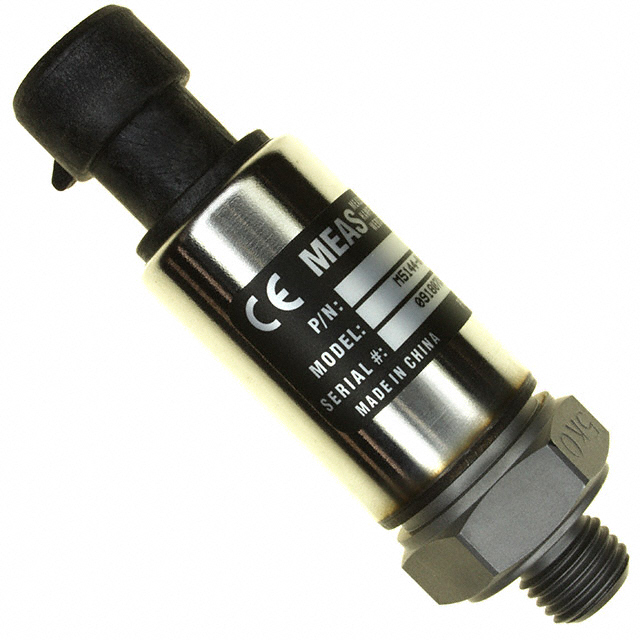

 TE Connectivity AMP Connectors | Threaded | Analog Voltage | 5000 PSI | 34473.79 kPa | 0.4375 in | Male | 11.11 mm | Industrial Automation | Cylinder | 5 V | 1 V | 1 % | 30 VDC | 8 V | Temperature Compensated | 125 °C | -40 C | Vented Gauge | 10000 PSI | 68947.57 kPa | ||
 TE Connectivity AMP Connectors | Threaded | Analog Voltage | 100 PSI | 689.48 kPa | 0.4375 in | Male | 11.11 mm | Industrial Automation | Cylinder | 5 V | 1 V | 1 % | 1378.95 kPa | 200 PSI | 30 VDC | 8 V | Temperature Compensated | 125 °C | -40 C | Vented Gauge | ||

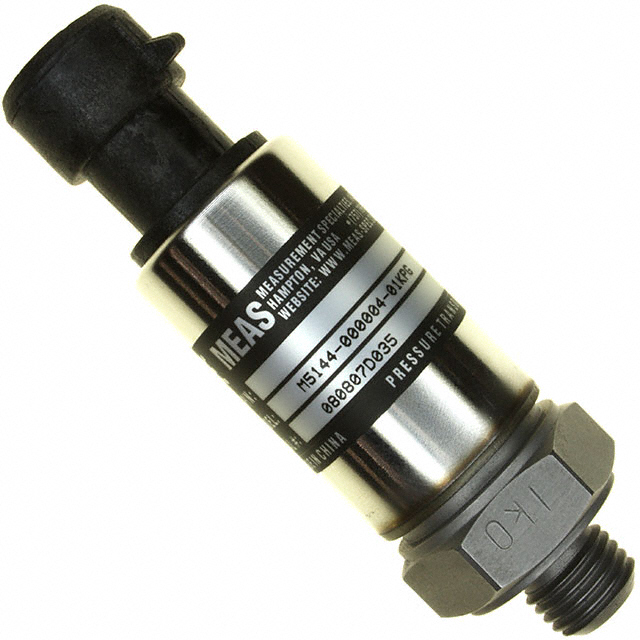

 TE Connectivity AMP Connectors | Threaded | Analog Voltage | 1000 PSI | 6894.76 kPa | 0.4375 in | Male | 11.11 mm | Industrial Automation | Cylinder | 5 V | 1 V | 1 % | 13789.51 kPa | 30 VDC | 8 V | Temperature Compensated | 125 °C | -40 C | Vented Gauge | 2000 PSI | ||

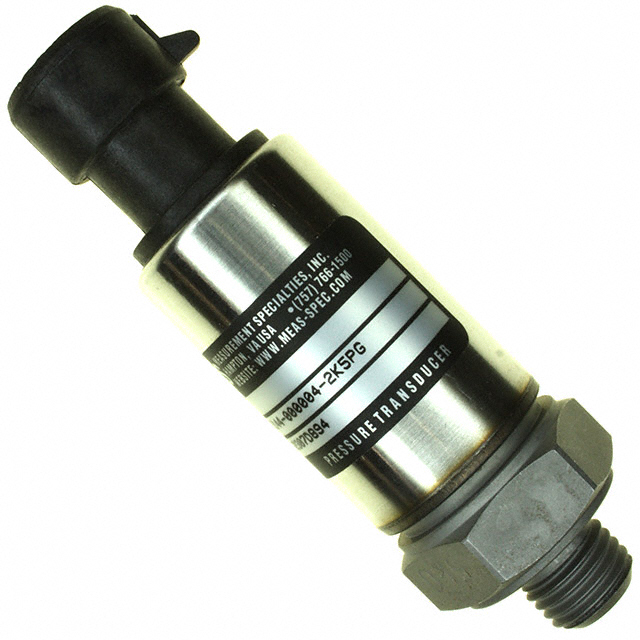

 TE Connectivity AMP Connectors | Threaded | Analog Voltage | 2500 PSI | 17236.89 kPa | 0.4375 in | Male | 11.11 mm | Industrial Automation | Cylinder | 5 V | 1 V | 1 % | 34473.79 kPa | 5000 PSI | 30 VDC | 8 V | Temperature Compensated | 125 °C | -40 C | Vented Gauge | ||

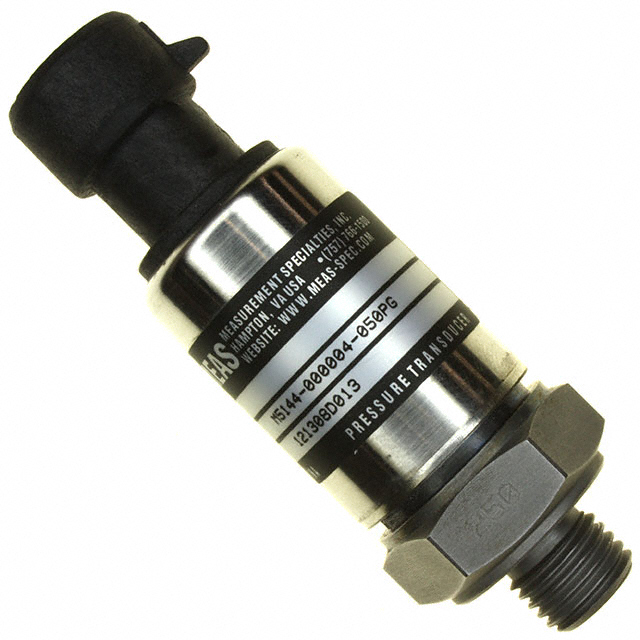

 TE Connectivity AMP Connectors | Threaded | Analog Voltage | 50 PSI | 344.74 kPa | 0.4375 in | Male | 11.11 mm | Industrial Automation | Cylinder | 5 V | 1 V | 1 % | 689.48 kPa | 100 PSI | 30 VDC | 8 V | Temperature Compensated | 125 °C | -40 C | Vented Gauge | ||

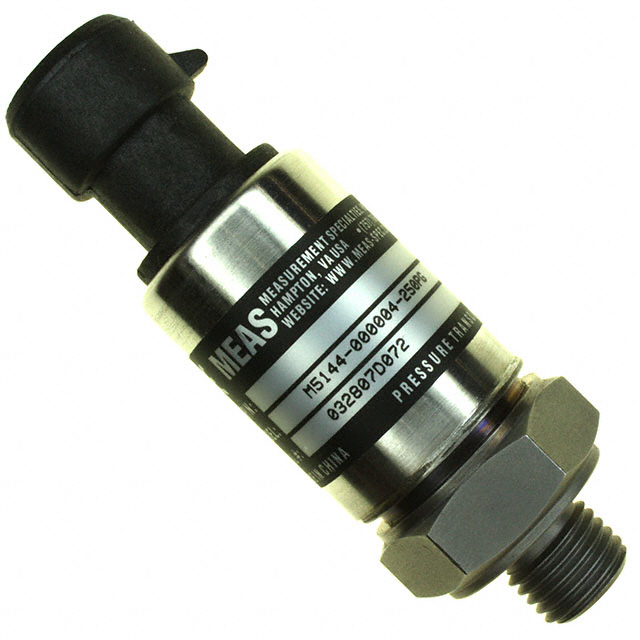

 TE Connectivity AMP Connectors | Threaded | Analog Voltage | 250 PSI | 1723.69 kPa | 0.4375 in | Male | 11.11 mm | Industrial Automation | Cylinder | 5 V | 1 V | 1 % | 3447.38 kPa | 500 PSI | 30 VDC | 8 V | Temperature Compensated | 125 °C | -40 C | Vented Gauge |
