887-038 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 38POS 0.156

...

Part	Termination Rows [custom]	Material - Insulation	Card Thickness [Max]	Card Thickness [Min]	Number of Rows [custom]	Contact Type	Termination	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Gender	Color	Contact Material	Number of Positions	Card Type	Contact Finish Thickness	Contact Finish Thickness	Features	Number of Positions/Bay/Row	Mounting Type	Pitch	Pitch	Read Out	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Termination Rows	Number of Positions/Bay/Row [custom]	Number of Rows
EDAC Inc. 887-038-560-204	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Cantilever	Solder	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Female	Black	Copper Alloy	38	Non Specified - Dual Edge	0.25 Ám	10 Áin	Card Extender	19	Board Edge Straddle Mount	3.96 mm	0.156 in	Dual	Gold	125 °C	-40 C

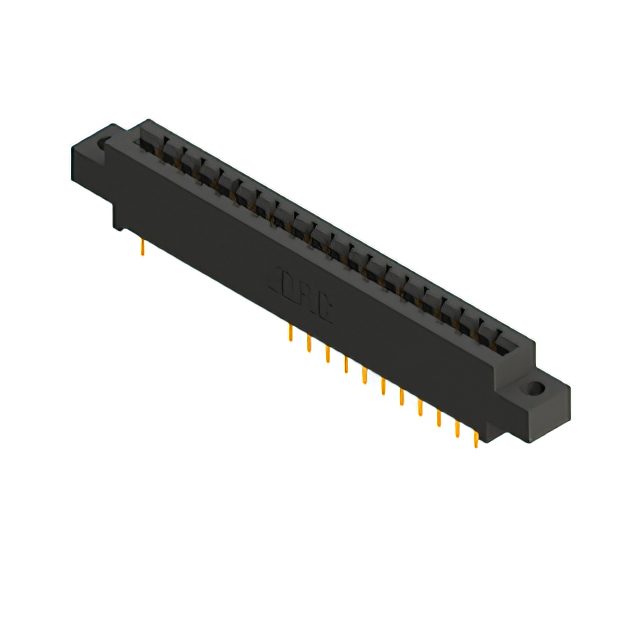

EDAC Inc. 887-038-540-804	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Cantilever	Wire Wrap		0.156 "	3.96 mm	Female	Black	Copper Alloy	38	Non Specified - Dual Edge	0.25 Ám	10 Áin		19	Through Hole	3.96 mm	0.156 in	Dual	Gold	125 °C	-40 C

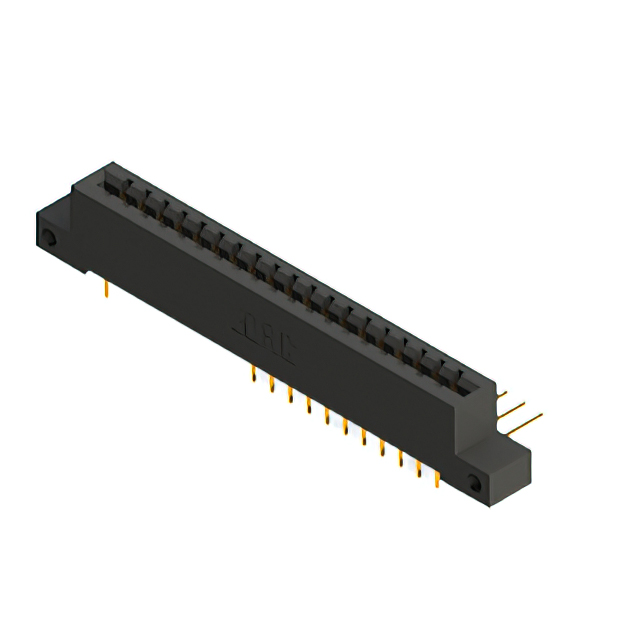

EDAC Inc. 887-038-558-212	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Cantilever	Solder	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Female	Black	Copper Alloy	38	Non Specified - Dual Edge	0.25 Ám	10 Áin		19	Right Angle Through Hole	3.96 mm	0.156 in	Dual	Gold	125 °C	-40 C

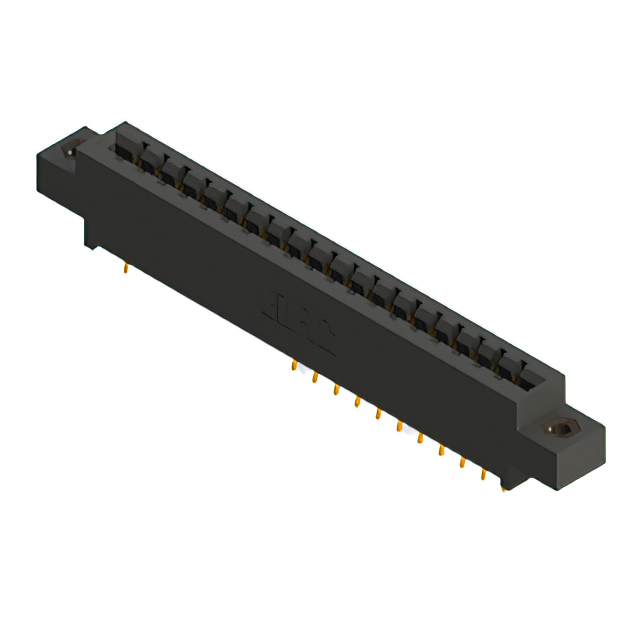

EDAC Inc. 887-038-556-807	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Cantilever	Solder	M3 Threaded Insert Top Mount Opening			Female	Black	Copper Alloy	38	Non Specified - Dual Edge	0.25 Ám	10 Áin	Card Extender	19	Board Edge Straddle Mount	3.96 mm	0.156 in	Dual	Gold	125 °C	-40 C
EDAC Inc. 887-038-555-804	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Cantilever	Solder		0.156 "	3.96 mm	Female	Black	Copper Alloy	38	Non Specified - Dual Edge	0.25 Ám	10 Áin	Card Extender	19	Board Edge Straddle Mount	3.96 mm	0.156 in	Dual	Gold	125 °C	-40 C
EDAC Inc. 887-038-524-103		Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm		Cantilever	Solder	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Female	Black	Copper Alloy	38	Non Specified - Single Edge	0.25 Ám	10 Áin			Through Hole	3.96 mm	0.156 in	Single	Gold	125 °C	-40 C	1	38	1

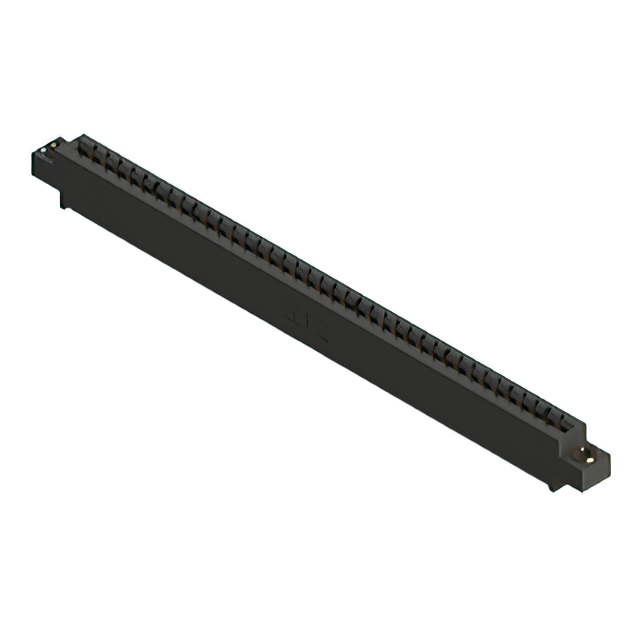

EDAC Inc. 887-038-521-603		Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm		Cantilever	Solder	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	Female	Black	Copper Alloy	38	Non Specified - Single Edge	0.25 Ám	10 Áin			Through Hole	3.96 mm	0.156 in	Single	Gold	125 °C	-40 C	1	38	1
EDAC Inc. 887-038-521-204	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Cantilever	Solder	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Female	Black	Copper Alloy	38	Non Specified - Dual Edge	0.25 Ám	10 Áin		19	Through Hole	3.96 mm	0.156 in	Dual	Gold	125 °C	-40 C

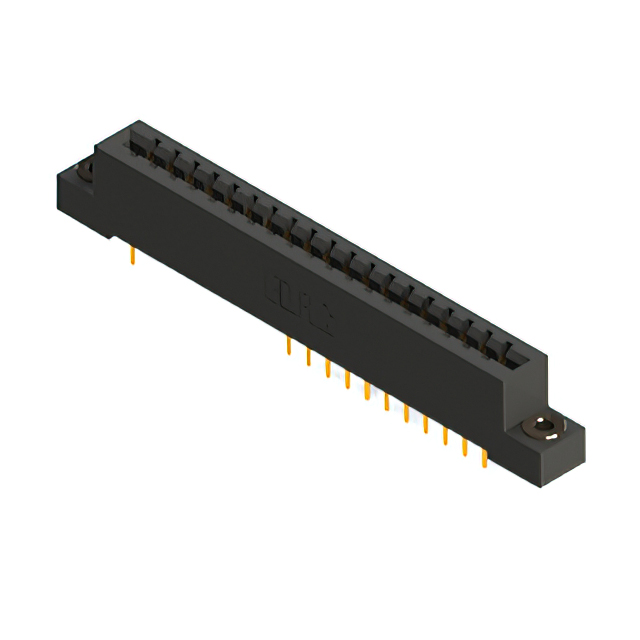

EDAC Inc. 887-038-523-203	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Cantilever	Solder	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Female	Black	Copper Alloy	38	Non Specified - Dual Edge	0.25 Ám	10 Áin		19	Through Hole	3.96 mm	0.156 in	Dual	Gold	125 °C	-40 C
EDAC Inc. 887-038-521-808	2	Polyphenylene Sulfide (PPS)	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Cantilever	Solder	4-40 Threaded Insert Top Mount Opening			Female	Black	Copper Alloy	38	Non Specified - Dual Edge	0.25 Ám	10 Áin		19	Through Hole	3.96 mm	0.156 in	Dual	Gold	125 °C	-40 C
