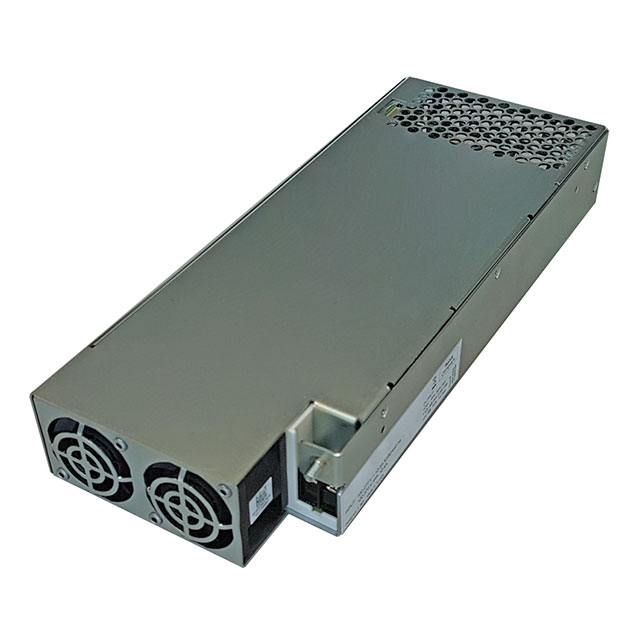

ABE1200 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
POWER SUPPLY, AC-DC, 24V, 50A ROHS COMPLIANT: YES
| Part | Minimum Load Required | Approval Agency | Voltage - Output 1 | Number of Outputs | Applications | Standard Number | Power (Watts) | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Voltage - Input [Min] | Voltage - Input [Max] | Mounting Type | Features | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Current - Output 1 | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | CE cURus DEMKO | 24 V | 1 | ITE (Commercial) | 60950-1 | 1200 W | 1.61 " | 41 mm | 10.3 " | 261.6 mm | 101.6 mm | 4 " | 85 VAC 120 VDC | 300 V 305 VAC | Chassis Mount | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | 4000 V | 60 °C | -20 °C | 94 % | 50 A | Enclosed | |
 Bel Fuse Inc. | CE cURus DEMKO | 48 V | 1 | ITE (Commercial) | 60950-1 | 1200 W | 1.61 " | 41 mm | 10.3 " | 261.6 mm | 101.6 mm | 4 " | 85 VAC 120 VDC | 300 V 305 VAC | Chassis Mount | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | 4000 V | 60 °C | -20 °C | 94 % | 25 A | Enclosed |
