TBP02P1 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

TERMINAL BLOCK, PLUGGABLE, 3.81,

Part	Screw Size	Contact Material	Type	Wire Gauge or Range - mm˛	Plug Wire Entry	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Positions Per Level	Current - UL	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Color	Current - IEC	Voltage - IEC	Number of Levels	Voltage - UL	Pitch	Pitch	Contact Mating Finish	Torque - Screw	Torque - Screw	Insulation Height	Insulation Height	Mounting Type	Wire Strip Length	Material Flammability Rating	Number of Positions	Features	Wire Gauge or Range - mm²	Positions Per Level [custom]
Same Sky (Formerly CUI Devices) TBP02P1-381-08BE	M2	Copper Alloy	Plug Female Sockets	1.5 mm˛	180 °	28 AWG	16 AWG	8	8 A	Screw - Leaf Spring Wire Guard	-40 C	105 ░C	Blue	7 A	250 V	1	300 V	3.81 mm	0.15 in	Nickel	1.7 Lb-In	0.2 Nm	11.2 mm	0.441 in	Free Hanging (In-Line)	7 mm	UL94 V-0	8
Same Sky (Formerly CUI Devices) TBP02P1W-381-06BE			Plug Female Sockets		180 °	28 AWG	16 AWG	6	8 A	Screw - Leaf Spring Wire Guard	-40 C	105 ░C	Blue	7 A	250 V	1	300 V	3.81 mm	0.15 in	Nickel					Free Hanging (In-Line)			6	Mating Flange	1.5 mm²

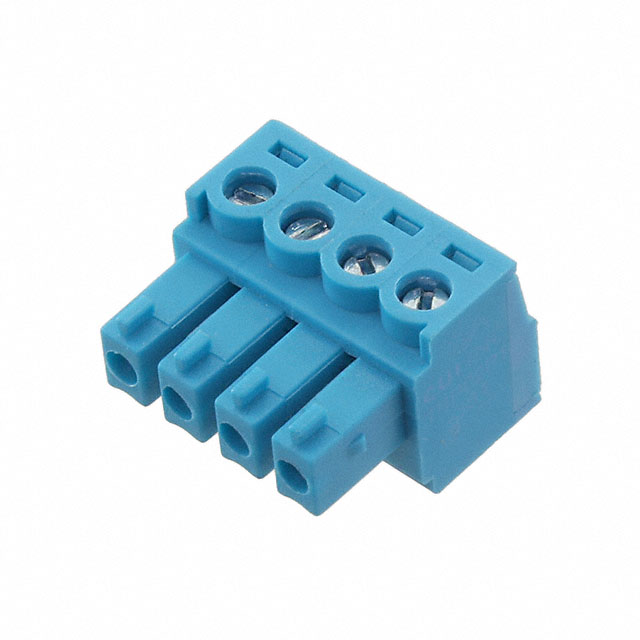

Same Sky (Formerly CUI Devices) TBP02P1-381-04BE			Plug Female Sockets		180 °	28 AWG	16 AWG	4	8 A	Screw - Leaf Spring Wire Guard	-40 C	105 ░C	Blue	7 A	250 V	1	300 V	3.81 mm	0.15 in	Nickel					Free Hanging (In-Line)			4	Groove Guide	1.5 mm²

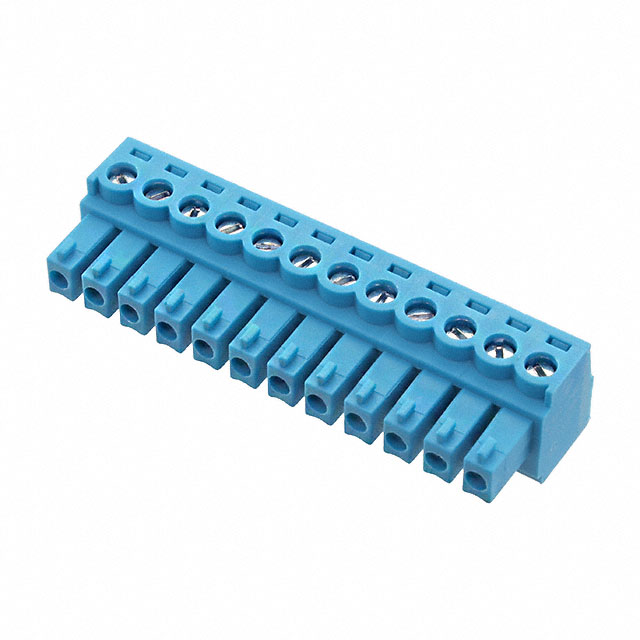

Same Sky (Formerly CUI Devices) TBP02P1-381-12BE	M2	Copper Alloy	Plug Female Sockets	1.5 mm˛	180 °	28 AWG	16 AWG	12	8 A	Screw - Leaf Spring Wire Guard	-40 C	105 ░C	Blue	7 A	250 V	1	300 V	3.81 mm	0.15 in	Nickel	1.7 Lb-In	0.2 Nm	11.2 mm	0.441 in	Free Hanging (In-Line)	7 mm	UL94 V-0	12
Same Sky (Formerly CUI Devices) TBP02P1W-381-03BE	M2	Copper Alloy	Plug Female Sockets	1.5 mm˛	180 °	28 AWG	16 AWG	3	8 A	Screw - Leaf Spring Wire Guard	-40 C	105 ░C	Blue	7 A	250 V	1	300 V	3.81 mm	0.15 in	Nickel	1.7 Lb-In	0.2 Nm	11.2 mm	0.441 in	Free Hanging (In-Line)	7 mm	UL94 V-0		Mating Flange
Same Sky (Formerly CUI Devices) TBP02P1-381-04BE	M2	Copper Alloy	Plug Female Sockets	1.5 mm˛	180 °	28 AWG	16 AWG	4	8 A	Screw - Leaf Spring Wire Guard	-40 C	105 ░C	Blue	7 A	250 V	1	300 V	3.81 mm	0.15 in	Nickel	1.7 Lb-In	0.2 Nm	11.2 mm	0.441 in	Free Hanging (In-Line)	7 mm	UL94 V-0	4	Groove Guide
Same Sky (Formerly CUI Devices) TBP02P1W-381-12BE	M2	Copper Alloy	Plug Female Sockets		180 °	28 AWG	16 AWG	12	8 A	Screw - Leaf Spring Wire Guard	-40 C	105 ░C	Blue	7 A	250 V	1	300 V	3.81 mm	0.15 in	Nickel	1.7 Lb-In	0.2 Nm	11.2 mm	0.441 in	Free Hanging (In-Line)	7 mm	UL94 V-0	12	Mating Flange	1.5 mm²
Same Sky (Formerly CUI Devices) TBP02P1-381-05BE	M2	Copper Alloy	Plug Female Sockets		180 °	28 AWG	16 AWG	5	8 A	Screw - Leaf Spring Wire Guard	-40 C	105 ░C	Blue	7 A	250 V	1	300 V	3.81 mm	0.15 in	Nickel	1.7 Lb-In	0.2 Nm	11.2 mm	0.441 in	Free Hanging (In-Line)	7 mm	UL94 V-0	5	Groove Guide	1.5 mm²
Same Sky (Formerly CUI Devices) TBP02P1-381-07BE	M2	Copper Alloy	Plug Female Sockets		180 °	28 AWG	16 AWG		8 A	Screw - Leaf Spring Wire Guard	-40 C	105 ░C	Blue	7 A	250 V	1	300 V	3.81 mm	0.15 in	Nickel	1.7 Lb-In	0.2 Nm	11.2 mm	0.441 in	Free Hanging (In-Line)	7 mm	UL94 V-0	7		1.5 mm²	7
Same Sky (Formerly CUI Devices) TBP02P1-381-02BE			Plug Female Sockets		180 °	28 AWG	16 AWG	2	8 A	Screw - Leaf Spring Wire Guard	-40 C	105 ░C	Blue	7 A	250 V	1	300 V	3.81 mm	0.15 in	Nickel					Free Hanging (In-Line)			2	Groove Guide	1.5 mm²
