H10BPR Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN HOOD SIDE ENTRY SZH10B M25
| Part | Housing Material | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Ingress Protection | Connector Type | Lock Location | Size | Operating Temperature [Max] | Operating Temperature [Min] | Housing Color | Style | Thread Size | Housing Finish | Features | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Aluminum Alloy Die Cast | 2.283 in | 101 mm | 5.748 in | 58 mm | 146 mm | 3.976 in | IP68 - Dust Tight Waterproof | Hood | Screw Locks on Hood | H10B | 125 °C | -40 C | Silver | Side Entry | M25 | Powder Coated | |||
 TE Connectivity AMP Connectors | Aluminum Alloy Die Cast | 2.283 in | 5.748 in | 146 mm | 1.142 " | IP68 - Dust Tight Waterproof | Base - Panel Mount | Screw Locks on Hood | H10B | 125 °C | -40 C | Black | Bottom Entry | Powder Coated | Corrosion Resistant EMC Resistant | 29 mm | 58 mm | |||

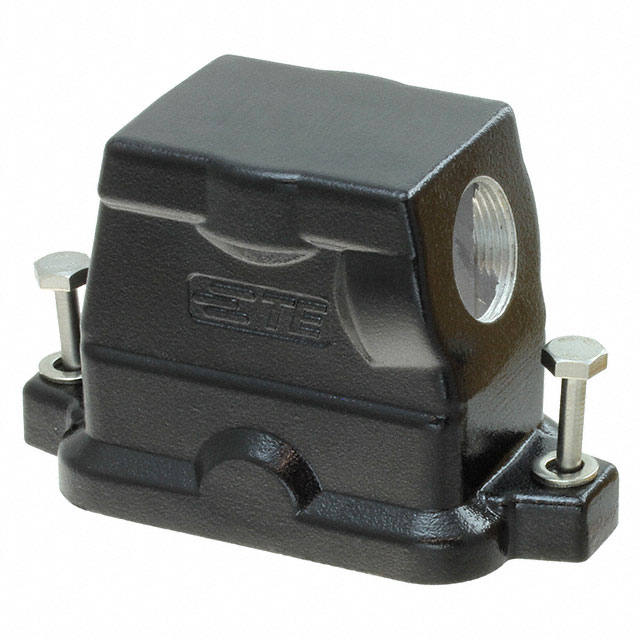

 TE Connectivity AMP Connectors | Aluminum Alloy Die Cast | 2.094 " | 3.78 in | 96 mm | 2.756 " | IP68 - Dust Tight Waterproof | Hood | Screw Locks on Hood | H10B | 125 °C | -40 C | Black | Side Entry | M25 | Powder Coated | Corrosion Resistant EMC Resistant | 70 mm | 53.2 mm |
