60K431 Series
Manufacturer: Rosenberger
Beta
⌘K

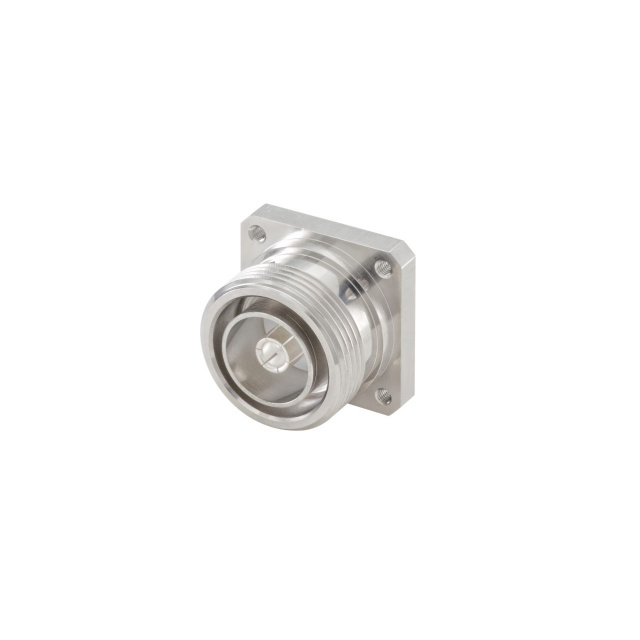

7/16 PANEL JACK
| Part | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Center Contact Plating | Body Material | Voltage Rating | Body Finish | Mounting Type | Shield Termination | Connector Style | Cable Group | Number of Ports | Fastening Type | Impedance | Contact Termination | Connector Type | Frequency - Max [Max] | Center Contact Material | Housing Color | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 500 | 85 °C | -45 °C | Polytetrafluoroethylene (PTFE) | Silver | Brass | 500 V | White Bronze | Panel Mount | Crimp | 7/16 DIN | RG-213 | 1 | Threaded | 50 Ohms | Solder | Female Socket Jack | 7.5 GHz | Bronze | Silver | |
 Rosenberger | 500 | 85 °C | -45 °C | Polytetrafluoroethylene (PTFE) | Silver | Brass | 500 V | White Bronze | Panel Mount | Crimp | 7/16 DIN | RG-214 | 1 | Threaded | 50 Ohms | Solder | Female Socket Jack | 7.5 GHz | Bronze | Silver | 393 |
