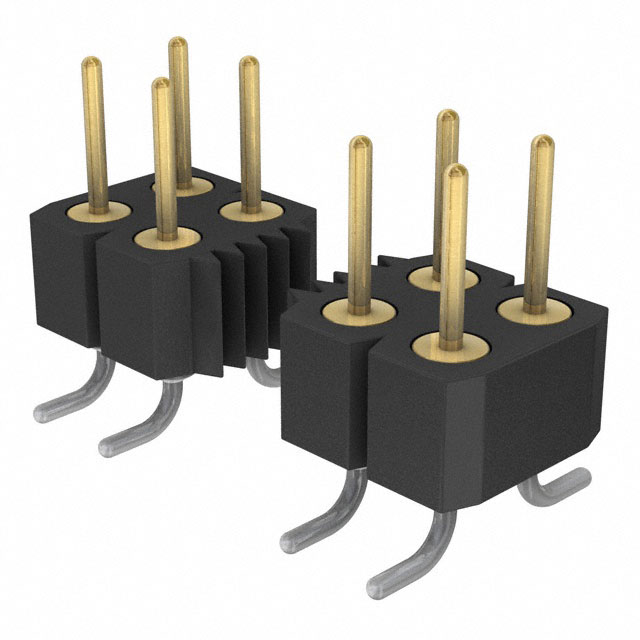

450-V3 Series

Manufacturer: Preci-Dip

Catalog

CONN HEADER VERT 36POS 2.54MM

Part	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Connector Type	Number of Positions Loaded	Contact Finish - Post	Termination	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Contact Shape	Shrouding	Current Rating (Amps)	Insulation Material	Overall Contact Length	Overall Contact Length	Mounting Type	Number of Positions	Voltage Rating	Contact Type
Preci-Dip 450-V3-236-00-006101	2	0.1 "	2.54 mm	-55 C	125 °C	Brass	0.114 in	2.9 mm	Black	0.141 in	3.6 mm	Gold	Header	All	Tin	Solder	29.5 µin	0.75 µm	UL94 V-0	0.1 in	2.54 mm	Push-Pull	Circular	Unshrouded	3 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 mm	0.394 in	Through Hole	36	150 VDC	Male Pin
Preci-Dip 450-V3-230-00-106101	2	0.1 "	2.54 mm	-55 C	125 °C	Brass			Black	0.141 in	3.6 mm	Gold	Header	All	Tin	Solder	29.5 µin	0.75 µm	UL94 V-0	0.1 in	2.54 mm	Push-Pull	Circular	Unshrouded	3 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester			Surface Mount	30	150 VDC	Male Pin
Preci-Dip 450-V3-262-00-106101	2	0.1 "	2.54 mm	-55 C	125 °C	Brass			Black	0.141 in	3.6 mm	Gold	Header	All	Tin	Solder	29.5 µin	0.75 µm	UL94 V-0	0.1 in	2.54 mm	Push-Pull	Circular	Unshrouded	3 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester			Surface Mount	62	150 VDC	Male Pin
Preci-Dip 450-V3-240-00-106101	2	0.1 "	2.54 mm	-55 C	125 °C	Brass			Black	0.141 in	3.6 mm	Gold	Header	All	Tin	Solder	29.5 µin	0.75 µm	UL94 V-0	0.1 in	2.54 mm	Push-Pull	Circular	Unshrouded	3 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester			Surface Mount	40	150 VDC	Male Pin
Preci-Dip 450-V3-238-00-006101	2	0.1 "	2.54 mm	-55 C	125 °C	Brass	0.114 in	2.9 mm	Black	0.141 in	3.6 mm	Gold	Header	All	Tin	Solder	29.5 µin	0.75 µm	UL94 V-0	0.1 in	2.54 mm	Push-Pull	Circular	Unshrouded	3 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 mm	0.394 in	Through Hole	38	150 VDC	Male Pin
Preci-Dip 450-V3-264-00-006101	2	0.1 "	2.54 mm	-55 C	125 °C	Brass	0.114 in	2.9 mm	Black	0.141 in	3.6 mm	Gold	Header	All	Tin	Solder	29.5 µin	0.75 µm	UL94 V-0	0.1 in	2.54 mm	Push-Pull	Circular	Unshrouded	3 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 mm	0.394 in	Through Hole	64	150 VDC	Male Pin
Preci-Dip 450-V3-242-00-106101	2	0.1 "	2.54 mm	-55 C	125 °C	Brass			Black	0.141 in	3.6 mm	Gold	Header	All	Tin	Solder	29.5 µin	0.75 µm	UL94 V-0	0.1 in	2.54 mm	Push-Pull	Circular	Unshrouded	3 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester			Surface Mount	42	150 VDC	Male Pin
Preci-Dip 450-V3-232-00-006101	2	0.1 "	2.54 mm	-55 C	125 °C	Brass	0.114 in	2.9 mm	Black	0.141 in	3.6 mm	Gold	Header	All	Tin	Solder	29.5 µin	0.75 µm	UL94 V-0	0.1 in	2.54 mm	Push-Pull	Circular	Unshrouded	3 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 mm	0.394 in	Through Hole		150 VDC	Male Pin
Preci-Dip 450-V3-216-00-006101	2	0.1 "	2.54 mm	-55 C	125 °C	Brass	0.114 in	2.9 mm	Black	0.141 in	3.6 mm	Gold	Header	All	Tin	Solder	29.5 µin	0.75 µm	UL94 V-0	0.1 in	2.54 mm	Push-Pull	Circular	Unshrouded	3 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	10 mm	0.394 in	Through Hole	16	150 VDC	Male Pin
Preci-Dip 450-V3-220-00-106101	2	0.1 "	2.54 mm	-55 C	125 °C	Brass			Black	0.141 in	3.6 mm	Gold	Header	All	Tin	Solder	29.5 µin	0.75 µm	UL94 V-0	0.1 in	2.54 mm	Push-Pull	Circular	Unshrouded	3 A	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester			Surface Mount	20	150 VDC	Male Pin
