IMCSN Series

Catalog

0.4, 3:1 MEDIUM WALL, 25 BLACK, NO ADHESIVE, 1 REEL

Part	Shelf Life	Operating Temperature [Min]	Operating Temperature [Max]	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Type	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Material	Length	Length	Shrinkage Ratio	Color	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Features	Length [x]	Length [x]	Inner Diameter - Recovered [diameter]	Shelf Life Start	Inner Diameter - Supplied	Inner Diameter - Recovered [diameter]
3M Electronic Specialty IMCSN-0400-25-U	24 Months 120 Months	-55 C	110 °C	40 °C	104 °F	Tubing Flexible	0.4 in	10.16 mm	Polyolefin (PO)	7.6 m	25 ft	3 to 1	Black	3.81 mm	0.15 in
3M Electronic Specialty IMCSN-1300-48A	24 Months 120 Months	-55 C	110 °C	40 °C	104 °F	Tubing Flexible	1.3 in	33.02 mm	Polyolefin (PO)			3 to 1	Black	10.92 mm	0.43 in	Adhesive Lined	4 ft	1.22 m
3M Electronic Specialty IMCSN-0800-25-U	24 Months 120 Months	-55 C	110 °C	40 °C	104 °F	Tubing Flexible	0.8 "	20.32 mm	Polyolefin (PO)	7.6 m	25 ft	3 to 1	Black	0.22 in					5.59 mm
3M Electronic Specialty IMCSN-1100-48A	120 Months	-55 C	110 °C	40 °C	104 °F	Tubing Flexible	1.1 in		Polyolefin (PO)			3 to 1	Black	9.4 mm		Adhesive Lined	4 ft	1.22 m		Date of Manufacture	27.94 mm	0.37 in

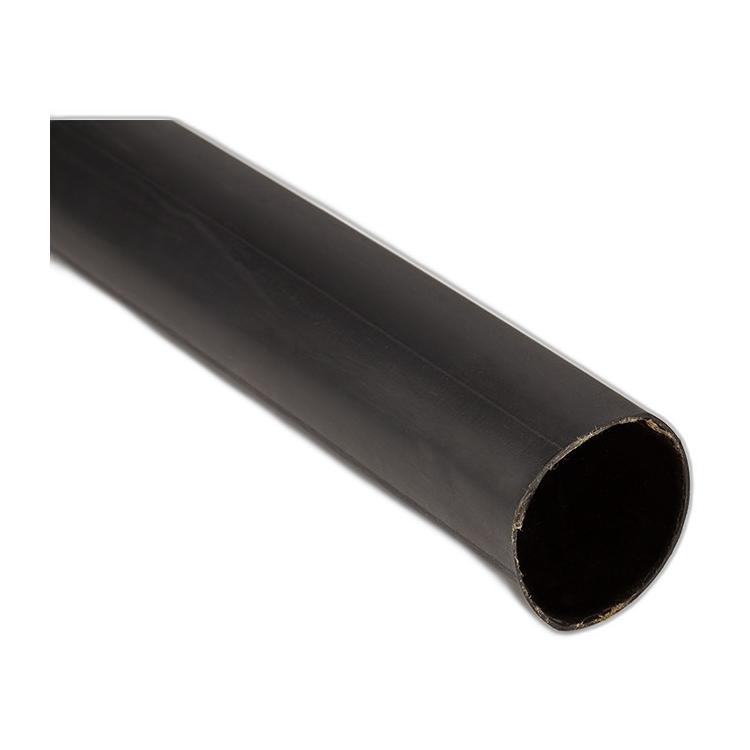

3M Electronic Specialty IMCSN-1500-25-U	24 Months 120 Months	-55 C	110 °C	40 °C	104 °F	Tubing Flexible	1.5 in	38.1 mm	Polyolefin (PO)	7.6 m	25 ft	3 to 1	Black	12.7 mm	0.5 "
3M Electronic Specialty IMCSN-1300-25-U	24 Months 120 Months	-55 C	110 °C	40 °C	104 °F	Tubing Flexible	1.3 in	33.02 mm	Polyolefin (PO)	7.6 m	25 ft	3 to 1	Black	10.92 mm	0.43 in
3M Electronic Specialty IMCSN-1700-48A	24 Months 120 Months	-55 C	110 °C	40 °C	104 °F	Tubing Flexible	1.7 in	43.18 mm	Polyolefin (PO)			3 to 1	Black	15.24 mm	0.6 "	Adhesive Lined	4 ft	1.22 m
3M Electronic Specialty IMCSN-4300-25-U	24 Months	-55 C	110 °C	40 °C	104 °F	Tubing Flexible	4.3 in	109.22 mm	Polyolefin (PO)	7.6 m	25 ft	3 to 1	Black	38.1 mm	1.5 in
3M Electronic Specialty IMCSN-1500-48A	24 Months 120 Months	-55 C	110 °C	40 °C	104 °F	Tubing Flexible	1.5 in	38.1 mm	Polyolefin (PO)			3 to 1	Black	12.7 mm	0.5 "	Adhesive Lined	4 ft	1.22 m		Date of Manufacture
