2118651 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

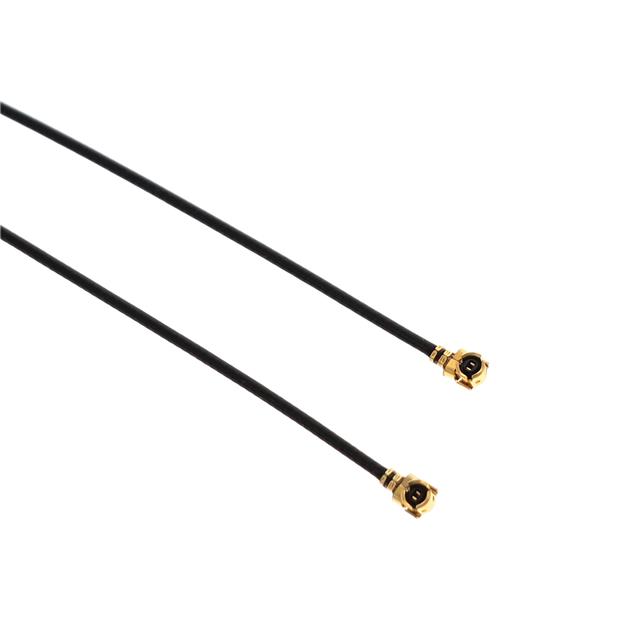

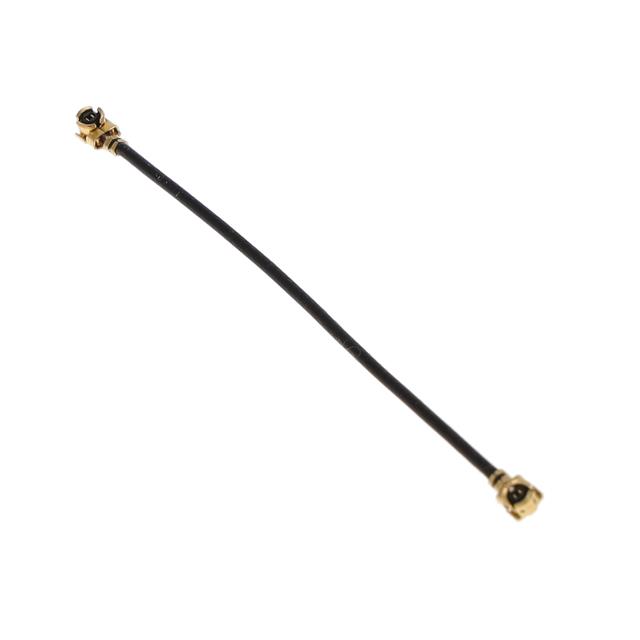

UMCC CABLE ASSEMBLY, 1.01 FT [.031 M], BLACK CABLE, 0-9 GHZ OPERATING FREQUENCY
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Frequency - Max [Max] | Style | 2nd Connector | 1st Contact Gender | 2nd Contact Gender | 1st Connector Mounting Type | Length [x] | Length [x] | 1st Connector | 2nd Connector Mounting Type | Overall Impedance | Color | Cable Type | Length | Length | Connector Impedance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 90 °C | -40 °C | 9 GHz | IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | U.FL (UMCC) IPEX MHF1 Plug Right Angle | Female | Female | Free Hanging (In-Line) | 30 mm | 1.181 in | IPEX MHF1 Plug Right Angle U.FL (UMCC) | Free Hanging (In-Line) | 50 Ohms | Black | 1.13mm OD Coaxial Cable | ||||
 TE Connectivity Raychem Cable Protection | 6000 MHz | I-PEX MHF1 I-PEX MHF1 to U.FL (UMCC) U.FL (UMCC) | I-PEX MHF1 Plug Right Angle U.FL (UMCC) | Female | Female | Free Hanging (In-Line) | I-PEX MHF1 Plug Right Angle U.FL (UMCC) | Free Hanging (In-Line) | 50 Ohms | Gray | 1.13mm OD Coaxial Cable | 90 mm | 3.543 in | ||||||
TE Connectivity Raychem Cable Protection | 90 °C | -40 °C | 9 GHz | IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | U.FL (UMCC) IPEX MHF1 Plug Right Angle | Female | Female | Free Hanging (In-Line) | IPEX MHF1 Plug Right Angle U.FL (UMCC) | Free Hanging (In-Line) | 50 Ohms | Black | 1.13mm OD Coaxial Cable | 200 mm | 7.874 in | ||||
 TE Connectivity Raychem Cable Protection | 6000 MHz | I-PEX MHF1 I-PEX MHF1 to U.FL (UMCC) U.FL (UMCC) | I-PEX MHF1 Plug Right Angle U.FL (UMCC) | Female | Female | Free Hanging (In-Line) | 60 mm | 2.362 in | I-PEX MHF1 Plug Right Angle U.FL (UMCC) | Free Hanging (In-Line) | 50 Ohms | Black | 1.13mm OD Coaxial Cable | 50 Ohms | Shielded |
