MP2-P120 Series
Manufacturer: 3M Electronic Specialty
Beta
⌘K

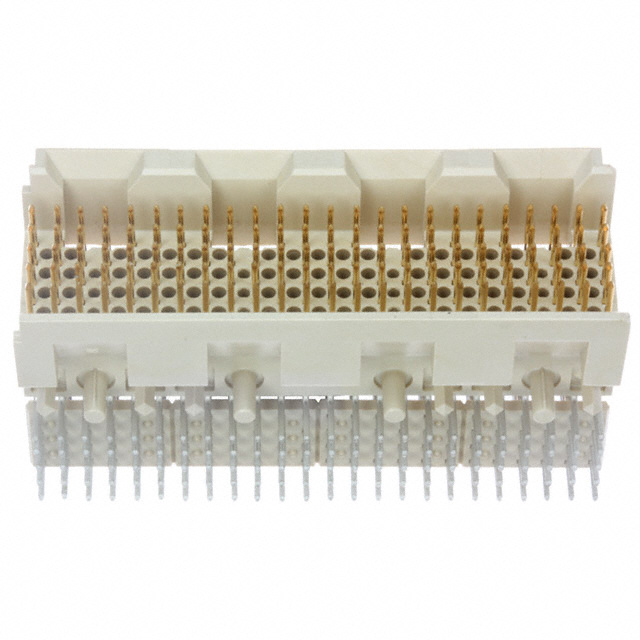

CONN HDR FUTUREBUS+ 120P EDGE MT
| Part | Material Flammability Rating | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Number of Rows | Features | Connector Style | Connector Usage | Number of Positions | Connector Type | Termination | Pitch [x] | Pitch [x] | Color | Number of Positions Loaded | Mounting Type | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M Electronic Specialty | UL94 V-0 | 1.5 A | -55 C | 125 °C | Gold | 5 | Board Guide Inverse | Futurebus+® | Backplane | 120 | Header Male Pins | Solder | 0.079 in | 2 mm | Beige | All | Board Edge Right Angle Through Hole | 30 Áin | 0.76 Ám |
 3M Electronic Specialty | UL94 V-0 | 1.5 A | -55 C | 125 °C | Gold | 5 | Board Guide Inverse | Futurebus+® | Backplane | 120 | Header Male Pins | Solder | 0.079 in | 2 mm | Beige | All | Board Edge Right Angle Through Hole | 3 µin | 0.076 Ám |
