CA100 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CBL ASSY RPSMA-NTYPE PLG-JCK 12"

Part	Frequency - Max [Max]	1st Connector Mounting Type	2nd Connector Mounting Type	Color	1st Connector	2nd Connector	Style	Features	2nd Connector Mounting Feature [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Cable Impedance	2nd Contact Gender	1st Contact Gender	Cable Type	Length [x]	Length [x]	1st Connector Mounting Feature	Length	Length
TE Connectivity AMP Connectors CA100-NFB-RSMAM-12	12.4 GHz	Free Hanging (In-Line)	Panel Mount	Copper	RP-SMA Plug	N-Type Jack	RP-SMA to N-Type	Shielded	Bulkhead - Front Side Nut	125 °C	-40 C	50 Ohms	Female	Female	LMR 100	304.8 mm	12 in
TE Connectivity AMP Connectors CA100-RPTNCF-NC-6	6000 MHz	Free Hanging (In-Line)		Copper	RP-TNC Plug	Cable (Round)	RP-TNC to Cable	Shielded		125 °C	-40 C	50 Ohms		Female	LMR 100	152.4 mm	6 "

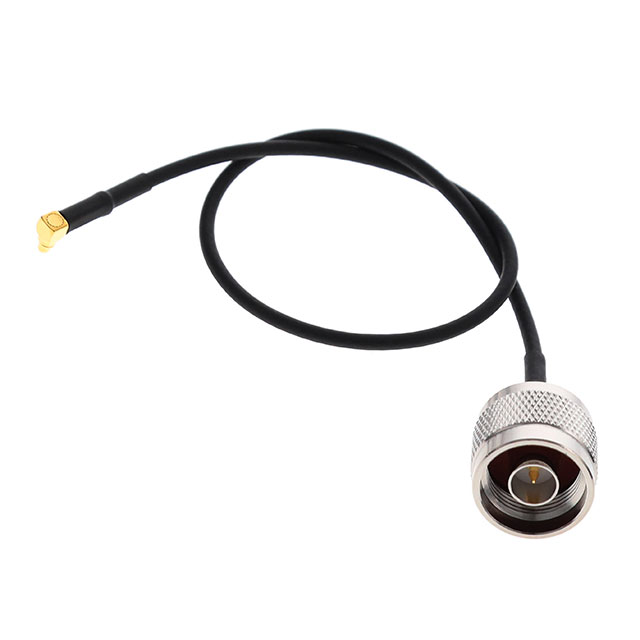

TE Connectivity AMP Connectors CA100-NM-MMCX-12	6000 MHz	Free Hanging (In-Line)	Free Hanging (In-Line)	Copper		MMCX Plug Right Angle	MMCX to N-Type	Shielded				50 Ohms	Male	Male	LMR 100	304.8 mm	12 in
TE Connectivity AMP Connectors CA100-NM-MC-12	6000 MHz	Free Hanging (In-Line)		Copper				Shielded		125 °C	-40 C	50 Ohms		Male	LMR 100	304.8 mm	12 in
TE Connectivity AMP Connectors CA100-NM-RSMAM-12	6000 MHz	Free Hanging (In-Line)	Free Hanging (In-Line)	Copper	RP-SMA Plug	N-Type Plug	RP-SMA to N-Type	Shielded		125 °C	-40 C	50 Ohms	Male	Female	LMR 100	304.8 mm	12 in
TE Connectivity AMP Connectors CA100-NFB-RSMAM-12	12.4 GHz	Free Hanging (In-Line)	Panel Mount	Copper	RP-SMA Plug	N-Type Jack	RP-SMA to N-Type	Shielded	Bulkhead - Front Side Nut	125 °C	-40 C	50 Ohms	Female	Female	LMR 100	304.8 mm	12 in
TE Connectivity AMP Connectors CA100-NM-RSMAM-12	6000 MHz	Free Hanging (In-Line)	Free Hanging (In-Line)	Copper	RP-SMA Plug	N-Type Plug	RP-SMA to N-Type	Shielded		125 °C	-40 C	50 Ohms	Male	Female	LMR 100	304.8 mm	12 in
TE Connectivity AMP Connectors CA100-NM-MC-12	6000 MHz	Free Hanging (In-Line)		Copper				Shielded		125 °C	-40 C	50 Ohms		Male	LMR 100	304.8 mm	12 in
TE Connectivity AMP Connectors CA100-NFB-SMAM-8	6000 MHz	Panel Mount	Free Hanging (In-Line)	Copper	N-Type Jack	SMA Plug	SMA to N-Type	Shielded		125 °C	-40 C	50 Ohms	Male	Female	LMR 100			Bulkhead - Front Side Nut	8 in	203.2 mm
TE Connectivity AMP Connectors CA100-NFB-RTNCM-12	6000 MHz	Free Hanging (In-Line)	Panel Mount	Copper	RP-TNC Plug	N-Type Jack	RP-TNC to N-Type	Shielded	Bulkhead - Front Side Nut	125 °C	-40 C	50 Ohms	Female	Female	LMR 100	304.8 mm	12 in
