AUIRL7732 Series
Manufacturer: INFINEON
Beta
⌘K
INFINEON’S AUIRL7732S2TR IS AN AUTOMOTIVE SEMICONDUCTOR WITH HIGH EFFICIENCY AND RELIABILITY. FIND DATA SHEET, PARAMETERS AND ORDERING INFORMATION.
| Part | FET Type | Technology | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds [Max] | Drive Voltage (Max Rds On, Min Rds On) | Operating Temperature [Max] | Operating Temperature [Min] | Power Dissipation (Max) | Qualification | Drain to Source Voltage (Vdss) | Rds On (Max) @ Id, Vgs | Current - Continuous Drain (Id) @ 25°C | Vgs(th) (Max) @ Id | Supplier Device Package | Package / Case | Grade | Mounting Type | Gate Charge (Qg) (Max) @ Vgs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

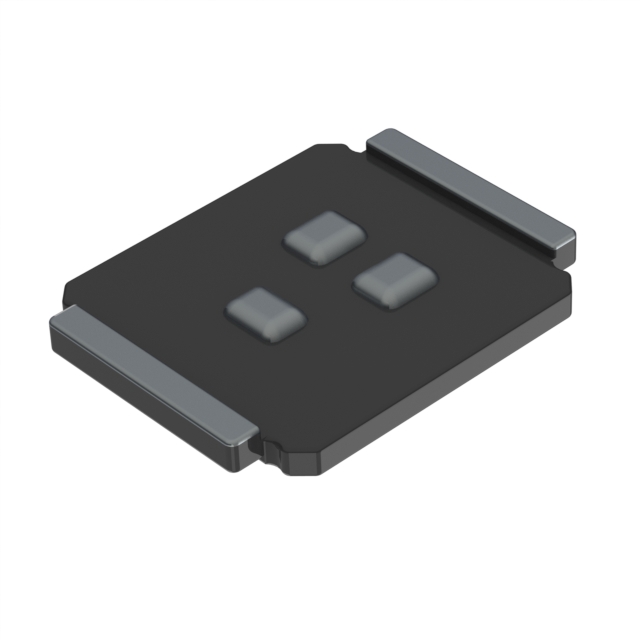

 INFINEON | N-Channel | MOSFET (Metal Oxide) | 16 V | 2020 pF | 4.5 V 10 V | 175 °C | -55 °C | 2.2 W 41 W | AEC-Q101 | 40 V | 6.6 mOhm | 14 A | 2.5 V | DIRECTFET™ SC | DirectFET™ Isometric SC | Automotive | Surface Mount | 33 nC |
