OCP-PCT124 Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K
OPTOISOLATR 5KV TRANSISTOR 4-DIP
| Part | Current Transfer Ratio (Min) [Min] | Vce Saturation (Max) [Max] | Voltage - Output (Max) [Max] | Package / Case | Package / Case | Package / Case | Mounting Type | Current - DC Forward (If) (Max) [Max] | Supplier Device Package | Current Transfer Ratio (Max) [Max] | Current - Output / Channel [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Output Type | Number of Channels [custom] | Rise / Fall Time (Typ) [custom] | Rise / Fall Time (Typ) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumex Opto/Components Inc. | 60 % | 300 mV | 60 V | 0.3 in | 4-DIP | 7.62 mm | Through Hole | 50 mA | 4-DIP | 600 % | 50 mA | -30 ░C | 100 °C | Transistor | 1 | 4 µs | 5 µs |

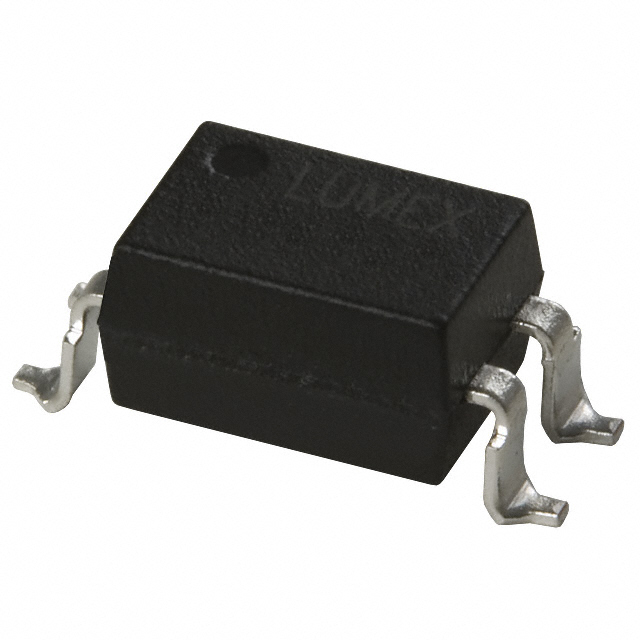

 Lumex Opto/Components Inc. | 60 % | 300 mV | 60 V | 4-SMD Gull Wing | Surface Mount | 50 mA | 4-SMD | 600 % | 50 mA | -30 ░C | 100 °C | Transistor | 1 | 4 µs | 5 µs |
