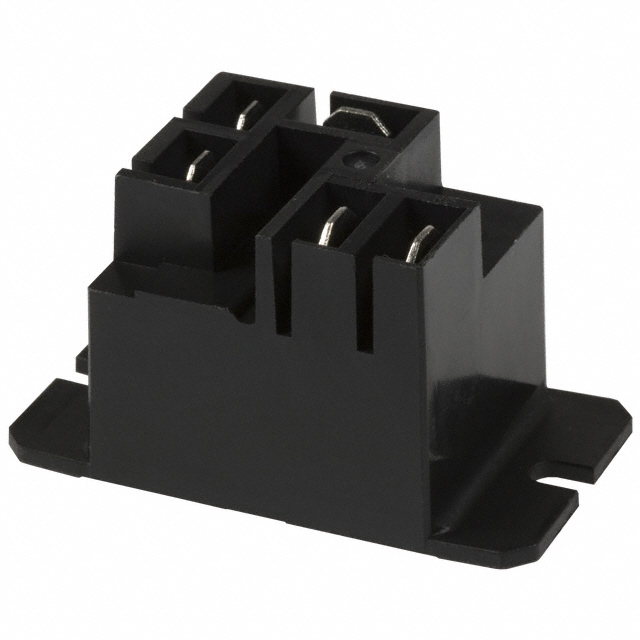

T9AP5 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE SPDT 20A 9V
| Part | Coil Resistance | Operating Temperature [Min] | Operating Temperature [Max] | Coil Type | Release Time | Must Release Voltage | Operate Time | Contact Form | Contact Rating (Current) | Contact Material | Mounting Type | Coil Insulation | Load - Max Switching | Relay Type | Must Operate Voltage | Coil Voltage | Termination Style | Termination Style | Switching Voltage [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 81 Ohms | -55 C | 85 °C | Non Latching | 15 ms | 0.9 VDC | 15 ms | SPDT (1 Form C) | 20 A | Silver Cadmium Oxide (AgCdO) | Chassis Mount | Class F | 5540 VA | General Purpose | 6.75 VDC | 9 VDC | 0.187 in 0.25 in | Quick Connect | 277 VAC |
