TNY286 Series

Catalog

AC/DC CONVERTER, FLYBACK, 85 VAC TO 265 VAC IN, 15 W, DIP-7

Part	Fault Protection	Power (Watts)	Package / Case	Package / Case	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Output Isolation	Duty Cycle	Voltage - Breakdown	Mounting Type	Frequency - Switching [Min]	Frequency - Switching [Max]	Control Features	Topology	Supplier Device Package
POWER INTEGRATIONS TNY286PG	Current Limiting Open Loop Over Temperature Over Voltage Short Circuit	13 W	7 Leads 8-DIP	7.62 mm	0.3 in	-40 °C	150 °C	Isolated	67 %	725 V	Through Hole	124 kHz	140 kHz	EN	Flyback	8-PDIP-C

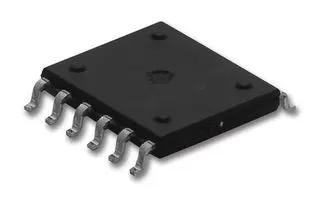

POWER INTEGRATIONS TNY286KG	Current Limiting Open Loop Over Temperature Over Voltage Short Circuit	10 W	12-BESOP (0.350" 8.89mm Width) 11 Leads Exposed Pad			-40 °C	150 °C	Isolated	67 %	725 V	Surface Mount	124 kHz	140 kHz	EN	Flyback	12-ESOP

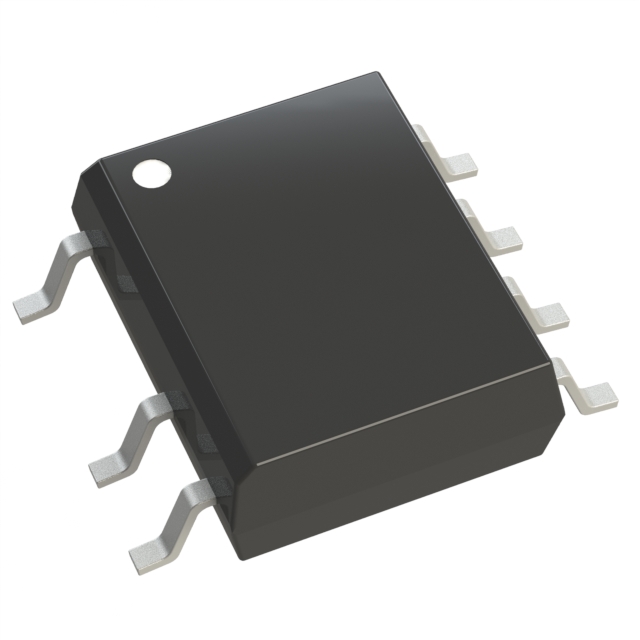

POWER INTEGRATIONS TNY286DG	Current Limiting Open Loop Over Temperature Over Voltage Short Circuit	13 W	8-SOIC		0.154 in 3.9 mm 7 Leads	-40 °C	150 °C	Isolated	67 %	725 V	Surface Mount	124 kHz	140 kHz	EN	Flyback	SO-8C
POWER INTEGRATIONS TNY286DG-TL	Current Limiting Open Loop Over Temperature Over Voltage Short Circuit	19 W	8-SOIC		0.154 in 3.9 mm 7 Leads	-40 °C	150 °C	Isolated	67 %	725 V	Surface Mount	124 kHz	140 kHz	EN	Flyback	SO-8C
POWER INTEGRATIONS TNY286KG-TL	Current Limiting Open Loop Over Temperature Over Voltage Short Circuit	10 W	12-BESOP (0.350" 8.89mm Width) 11 Leads Exposed Pad			-40 °C	150 °C	Isolated	67 %	725 V	Surface Mount	124 kHz	140 kHz	EN	Flyback	12-ESOP
