DLG70-15HV Series

Manufacturer: XP Power

Catalog

LED POWER SUPPLIES LED DRIVER, AC-DC, 70W

Part	Mounting Type	Weight	Weight	Type	Voltage - Output [Max]	Voltage - Output [Min]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Termination Style	Number of Outputs	Topology	Voltage - Isolation	Voltage - Input (Max) [Max]	Features	Ratings	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Efficiency	Size / Dimension [y]	Size / Dimension [z]

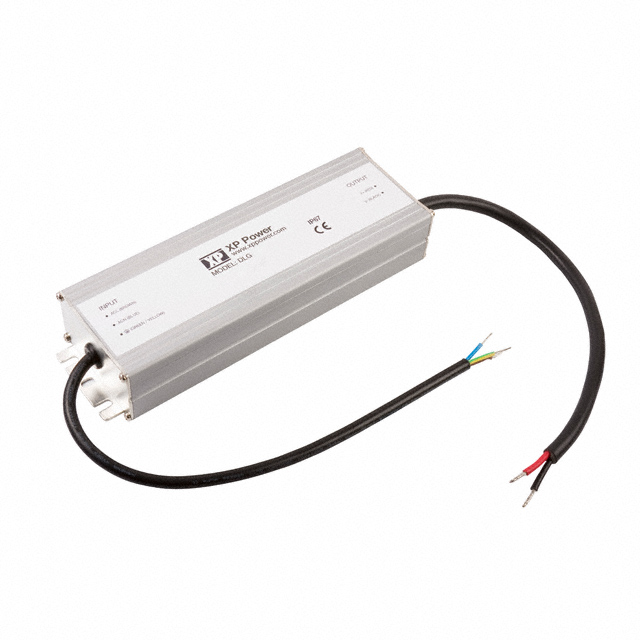

XP Power DLG70PS700-A	Chassis Mount	1.7 lbs	771.1 g	Constant Current	100 VDC	50 V	70 W	-30 ░C	70 °C	CE UL	57 mm	198 mm	37 mm	7.8 in	2.24 in	1.46 in	Wire Leads	1	AC DC Converter	3750 VDC	305 VAC	OCP OVP SCP	IP67	700 mA	90 VAC	90 %

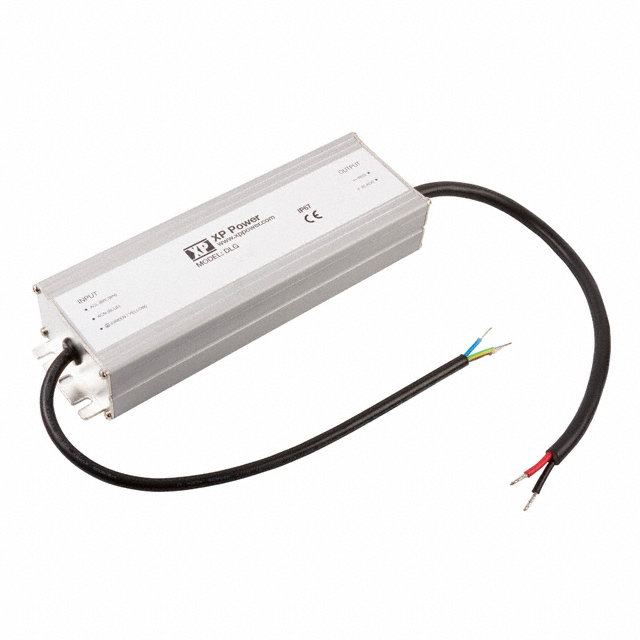

XP Power DLG150PS1050-A	Chassis Mount	1.7 lbs	771.1 g	Constant Current	143 V	60 V	150 W	-30 ░C	70 °C	CE UL		226 mm		8.9 "	2.68 in	1.54 in	Wire Leads	1	AC DC Converter	3750 VDC	305 VAC	OCP OVP SCP	IP67	1.05 A	90 VAC	92 %	68 mm	39 mm
XP Power DLG150PS350-A				Constant Current	428 V	120 V	150 W	-30 ░C	70 °C	CE UL		226 mm		8.9 "	2.68 in	1.54 in	Wire Leads	1	AC DC Converter	3750 VDC	305 VAC	OCP OVP SCP	IP67	350 mA	90 VAC	92 %	68 mm	39 mm
